Description
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
8+2+1 Phases Digital VRM with 80A Smart Power Stage Dual Channel DDR5：2*DIMMs PCIe Gen5 x16 with PCIe UD Slot X & EZ-Latch Plus M.2 Gen5 with EZ-Latch Plus Fully Covered MOSFET Heatsinks Wi-Fi 7 with WIFI EZ-Plug & Directional Antenna 2.5GbE LAN, Q-Flash Plus
Product Details
Reference

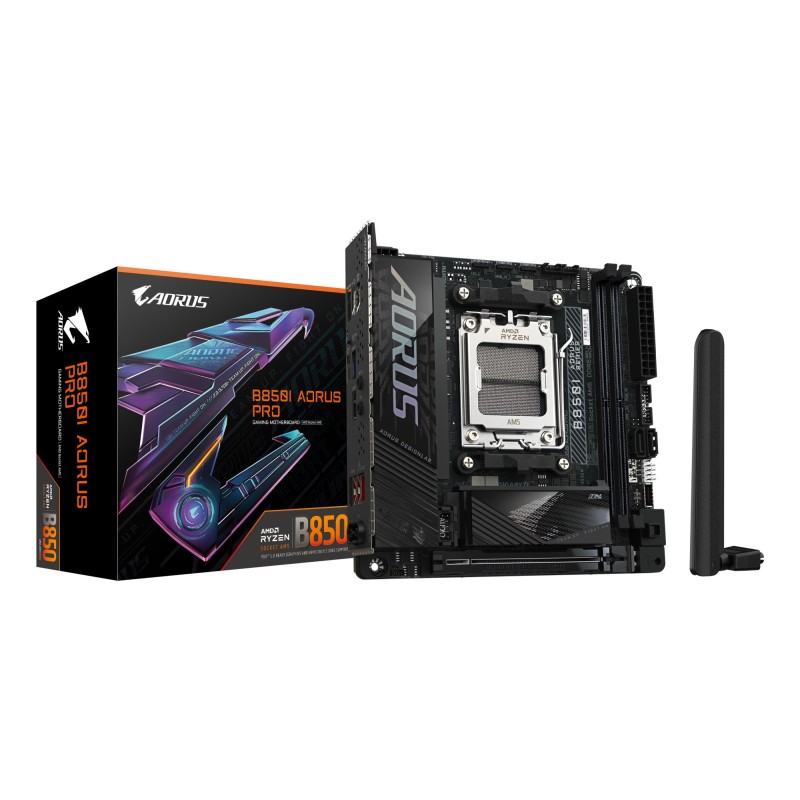

B850I AORUS PRO
Data sheet
Vendor Homepage
https://www.gigabyte.com/
Garantija
36
Model
B850I AORUS PRO
Category Code
MBA
Unit Box Height
0.23
Unit Box Length
0.235
Unit Box Width
0.095
Units per Shipping Box
1
Unit Calculated Volume
0.005135 cubm
Unit Calculated Weight
1.28 kg
Summary
GIGABYTE B850I AORUS PRO Motherboard - AMD Ryzen 9000 Series CPUs, 8+2+1 Phases Digital VRM, up to 8400MHz DDR5 (OC), 1xPCIe 5.0 + 1xPCIe 4.0 M.2, 2.5LAN, WIFI 7, USB 3.2 Gen 2. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible process
Battery (Battery technology)
Lithium-Manganese Dioxide (LiMnO2)
Weight & dimensions (Width)
170 mm
Weight & dimensions (Depth)
170 mm
Weight & dimensions (Height)
35 mm
Battery (Battery type)
CR2032
Technical details (Warranty period)
3 year(s)
Other features (Weight)
1300 g
Network (Bluetooth)
Yes
Network (Bluetooth version)
5.4
Network (Ethernet LAN)
Yes
Network (Wi-Fi)
Yes
Network (Wi-Fi standards)
802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)/Wi-Fi 7 (802.11be)
Features (Product colour)
Black/Brown
Logistics data (Products per shipping (inner) case)
1 pc(s)
Packaging content (Batteries included)
Yes
Packaging content (Screws included)
Yes
Logistics data (Country of origin)
China
Processor (Processor manufacturer)
AMD
Network (Top Wi-Fi standard)
Wi-Fi 7 (802.11be)
Features (Component for)
PC
Packaging content (Bundled software)
Norton Internet Security (OEM version) LAN bandwidth management software
Memory (Maximum internal memory)
128 GB
Memory (Memory channels)
Dual-channel
Graphics (On-board graphics card)
No
Network (WLAN controller model)
Realtek RTL8922AE
Expansion slots (PCI Express x16 (Gen 5.x) slots)
1
Battery (Battery weight)
3 g
Processor (Compatible processor series)
AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
Processor (Processor socket)
Socket AM5
Processor (Supported processor sockets)
Socket AM5
Memory (Memory slots type)
DIMM
Memory (Number of memory slots)
2
Memory (Supported memory clock speed (max))
8400 MHz
Memory (Supported memory clock speeds)
4400/4800/5200/5600/6000/6200/6400/6600/6666/6800/7000/7200/7600/7800/8000/8200/8400 MHz
Memory (Supported memory types)
DDR5-SDRAM
Memory (Unbuffered memory)
Yes
Storage controllers (Number of HDDs supported)
2
Storage controllers (Number of storage drives supported)
4
Storage controllers (Supported storage drive interfaces)
M.2,SATA III
Storage controllers (Supported storage drive types)
HDD & SSD
Graphics (Parallel processing technology support)
Not supported
Internal I/O (12V power connector)
Yes
Internal I/O (ATX Power connector (24-pin))
Yes
Internal I/O (CPU fan connector)
Yes
Internal I/O (EPS power connector (8-pin))
Yes
Internal I/O (Front panel audio connector)
Yes
Internal I/O (Front panel connector)
Yes
Internal I/O (Number of SATA III connectors)
2
Internal I/O (RGB LED pin header)
Yes
Internal I/O (USB 2.0 connectors)
1
Internal I/O (USB 3.2 Gen 1 (3.1 Gen 1) connectors)
1
Rear panel I/O ports (DisplayPorts quantity)
1
Rear panel I/O ports (Ethernet LAN (RJ-45) ports)
1
Rear panel I/O ports (HDMI ports quantity)
1
Rear panel I/O ports (Headphone outputs)
1
Rear panel I/O ports (Microphone in)
Yes
Rear panel I/O ports (USB 2.0 ports quantity)
2
Rear panel I/O ports (USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity)
2
Rear panel I/O ports (WiFi-AP antenna jack)
2
Network (Ethernet interface type)
Gigabit Ethernet
Features (Audio output channels)
7.1 channels
Features (Motherboard chipset)
AMD B850
Features (Motherboard chipset family)
AMD
Features (Motherboard form factor)
mini ITX
Features (Windows operating systems supported)
Windows 11 x64
Expansion slots (Number of M.2 (M) slots)
2
BIOS (BIOS memory size)
256 Mbit
BIOS (BIOS type)
UEFI AMI
BIOS (Clear CMOS button)
Yes
Storage controllers (RAID levels)
0/1/10
Storage controllers (RAID support)
Yes
Internal I/O (USB 3.2 Gen 2 (3.1 Gen 2) connectors)
1
Rear panel I/O ports (DisplayPort version)
2.1
Rear panel I/O ports (HDMI version)
2.1
Rear panel I/O ports (USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity)
2
Rear panel I/O ports (USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity)
1
Graphics (DirectX version)
12.0
Internal I/O (Total number of SATA connectors)
2
Features (PC health monitoring)
Fan/Temperature/Voltage/Water cooling
BIOS (ACPI version)
5.0
BIOS (Clear CMOS jumper)
Yes
BIOS (Desktop Management Interface (DMI) version)
2.7
BIOS (System Management BIOS (SMBIOS) version)
2.7
Battery (Lithium weight per battery)
0.07 g
Battery (Number of battery cells)
1
Memory (ECC сompatibility)
Non-ECC
Memory (Maximum internal memory per slot)
64 GB
Graphics (HDCP)
Yes
Graphics (Maximum resolution)
4096 x 2160 pixels
Internal I/O (Number of CPU fan connectors)
2
Internal I/O (Number of RGB LED pin headers)
4
Internal I/O (Number of water pump connectors)
1
Expansion slots (1st M.2 highest PCI Express generation)
5.0
Expansion slots (1st M.2 largest key size)
2280
Expansion slots (2nd M.2 highest PCI Express generation)
4.0
Expansion slots (2nd M.2 largest key size)
2280
Internal I/O (Number of EPS power connectors (8-pin))
1
Packaging content (Antenna included)
Yes
Specific References
EAN13
889523046364
MPN
1431034
