Mainboard|ASUS|AMD B650|ATX|Memory DDR5|Memory slots 4|1xPCI-Express 4.0 1x|1xPCI-Express 4.0 16x|1xPCI-Express 5.0 16x|3xM.2|1x

Reference TUF GAMING B650E-E WIFI

Brand ASUS

€214.62

VAT included

Quantity

Tellimisel

Description
Product Details

Description

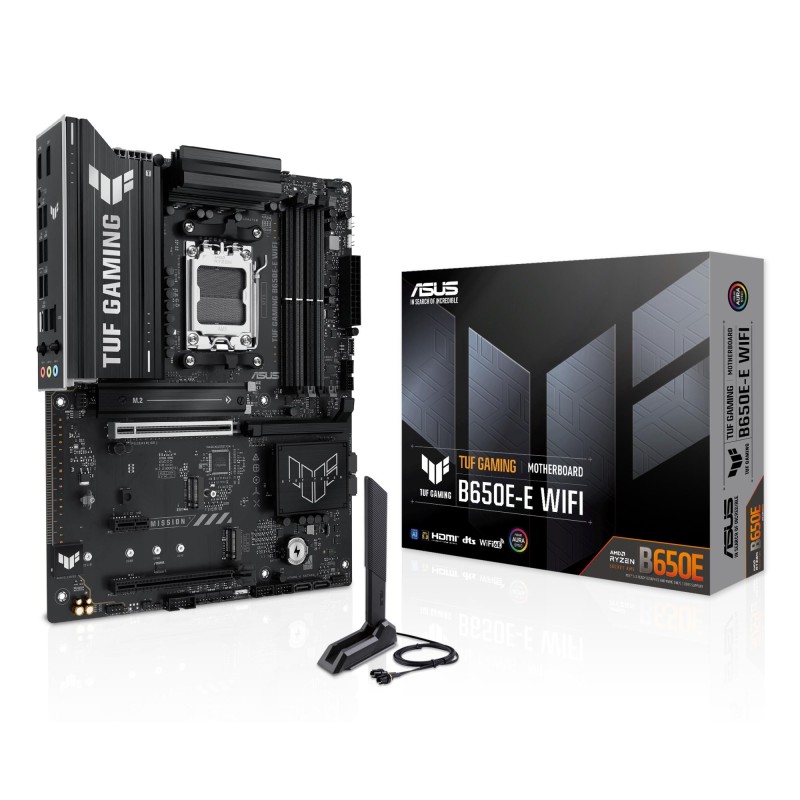

TUF GAMING B650E-E WIFI
ASUS TUF GAMING B650E-E WIFI takes all the essential elements of the latest AM5 Socket for AMD Ryzen™ Desktop Processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates rugged off-black and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series. This platform delivers the power and connectivity that advanced AI PC applications demand.

Product Details

Brand ASUS

Reference TUF GAMING B650E-E WIFI

Data sheet

Vendor Homepage: https://www.asus.com/motherboards-components/motherboards/tuf-gaming/tuf-gaming-b650e-e-wifi/
Garantija: 36
Model: TUF GAMING B650E-E WIFI
Category Code: MBA
Unit Box Height: 0.07
Unit Box Length: 0.353
Unit Box Width: 0.272
Units per Shipping Box: 5
Unit Calculated Volume: 0.008001 cubm
Unit Calculated Weight: 1.97 kg
Summary: ASUS TUF GAMING B650E-E WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB,
Weight & dimensions (Width): 305 mm
Weight & dimensions (Depth): 244 mm
Packaging data (Package width): 353 mm
Packaging data (Package depth): 273 mm
Packaging data (Package height): 68 mm
Packaging data (Package weight): 1780 g
Packaging content (Cables included): SATA
Network (Bluetooth): Yes
Network (Bluetooth version): 5.3
Network (Ethernet LAN): Yes
Network (Wi-Fi): Yes
Network (Wi-Fi standards): Wi-Fi 6E (802.11ax)
Features (Product colour): Black
Packaging content (Screws included): Yes
Processor (Processor manufacturer): AMD
Network (Top Wi-Fi standard): Wi-Fi 6E (802.11ax)
Features (Component for): PC
Memory (Maximum internal memory): 256 GB
Memory (Memory channels): Dual-channel
Graphics (On-board graphics card): No
Expansion slots (PCI Express x16 (Gen 5.x) slots): 1
Features (Cooling type): Passive
Processor (Compatible processor series): AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
Processor (Processor socket): Socket AM5
Processor (Supported processor sockets): Socket AM5
Memory (Memory slots type): DIMM
Memory (Number of memory slots): 4
Memory (Supported memory types): DDR5-SDRAM
Memory (Unbuffered memory): Yes
Storage controllers (Number of HDDs supported): 4
Storage controllers (Number of storage drives supported): 7
Storage controllers (Supported storage drive interfaces): M.2,SATA III
Storage controllers (Supported storage drive types): HDD & SSD
Graphics (Parallel processing technology support): Not supported
Internal I/O (12V power connector): Yes
Internal I/O (ATX Power connector (24-pin)): Yes
Internal I/O (CPU fan connector): Yes
Internal I/O (EPS power connector (8-pin)): Yes
Internal I/O (Front panel audio connector): Yes
Internal I/O (Front panel connector): Yes
Internal I/O (Number of chassis fan connectors): 4
Internal I/O (Number of COM connectors): 1
Internal I/O (Number of SATA III connectors): 4
Internal I/O (RGB LED pin header): Yes
Internal I/O (S/PDIF out connector): Yes
Internal I/O (USB 2.0 connectors): 2
Internal I/O (USB 3.2 Gen 1 (3.1 Gen 1) connectors): 1
Rear panel I/O ports (DisplayPorts quantity): 1
Rear panel I/O ports (Ethernet LAN (RJ-45) ports): 1
Rear panel I/O ports (HDMI ports quantity): 1
Rear panel I/O ports (Line-in): Yes
Rear panel I/O ports (Microphone in): Yes
Rear panel I/O ports (USB 2.0 ports quantity): 3
Rear panel I/O ports (USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity): 1
Rear panel I/O ports (WiFi-AP antenna jack): 1
Network (Ethernet interface type): 2.5 Gigabit Ethernet
Features (Audio output channels): 7.1 channels
Features (Motherboard chipset): AMD B650
Features (Motherboard chipset family): AMD
Features (Motherboard form factor): ATX
Features (Windows operating systems supported): Windows 10 x64/Windows 11
Expansion slots (Number of M.2 (M) slots): 3
Expansion slots (PCI Express x16 (Gen 4.x) slots): 1
BIOS (BIOS memory size): 256 Mbit
BIOS (BIOS type): UEFI AMI
Storage controllers (RAID levels): 0/1/10/5
Storage controllers (RAID support): Yes
Internal I/O (Chassis intrusion connector): Yes
Internal I/O (USB 3.2 Gen 2 (3.1 Gen 2) connectors): 1
Rear panel I/O ports (USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity): 3
Rear panel I/O ports (USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity): 1
Memory (ECC сompatibility): ECC & Non-ECC
Internal I/O (Number of RGB LED pin headers): 3
Expansion slots (1st M.2 highest PCI Express generation): 5.0
Expansion slots (1st M.2 largest key size): 2280
Expansion slots (2nd M.2 highest PCI Express generation): 4.0
Expansion slots (2nd M.2 largest key size): 2280
Expansion slots (3rd M.2 highest PCI Express generation): 4.0
Expansion slots (3rd M.2 largest key size): 22110
Packaging content (Antenna included): Yes
Expansion slots (PCI Express x1 (Gen 4.x) slots): 1
Internal I/O (Peripheral (Molex) power connectors (4-pin)): 1
