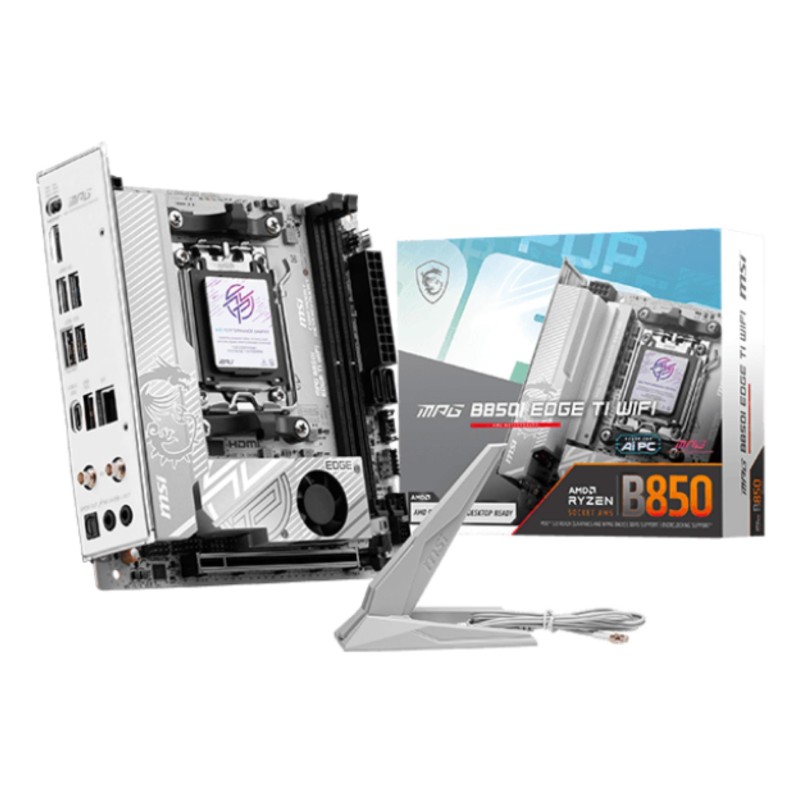

Mainboard|MSI|AMD B850|SAM5|Mini-ITX|Memory DDR5|Memory slots 2|MPGB850IEDGETIWIFI

Reference MPG B850I EDGE TI WIFI

Brand MSI

€262.49

VAT included

Quantity

Laos

In stock: 28 Items

Description
Product Details

Description

Lightning Gen 5
The latest PCIe 5.0 solution with up to 128GB/s bandwidth for maximum transfer speed.

Wi-Fi 7
The latest wireless solution with a new 160MHz channel, achieving a maximum transmission speed of 2.9Gbps, which is 2.4 times faster than Wi-Fi 6/6E.

Latest DDR5 Memory
A huge step of DDR performance enhancement with the latest DDR5 memory and MSI Memory Boost technology.

Frozr Heatsink Design
Designed with the patented fan and double ball bearings to provide best performance for enthusiast gamers and prosumers.

Dual M.2 Connectors
Onboard 2x M.2 Connectors with one PCIe 5.0 solution, strengthened by M.2 Shield Frozr.

Lightning USB 20G
Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1.

5G Network Solution
Featuring premium 5G LAN to deliver better network experience.

Wi-Fi 7
The latest wireless solution with a new 320MHz channel, achieving a maximum transmission speed of 5.8Gbps, which is 2.4 times faster than Wi-Fi 6/6E.

Audio Boost 5
Isolated audio with a high quality audio processor for the most
immersive gaming experience

Product Details

Brand MSI

Reference MPG B850I EDGE TI WIFI

In stock 28 Items

Data sheet

Vendor Homepage: https://www.msi.com/Motherboard/MPG-B850I-EDGE-TI-WIFI/Specification
Garantija: 36
Model: MPG B850I EDGE TI WIFI
Category Code: MBA
Unit Box Height: 0.06
Unit Box Length: 0.225
Unit Box Width: 0.275
Units per Shipping Box: 10
Unit Calculated Volume: 0.004394 cubm
Unit Calculated Weight: 1.28 kg
CnCode: 84733020
Summary: MSI B850I EDGE TI WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memor
Weight & dimensions (Width): 170 mm
Weight & dimensions (Depth): 170 mm
Packaging content (Cables included): SATA
Network (Bluetooth): Yes
Network (Bluetooth version): 5.4
Network (Ethernet LAN): Yes
Network (Wi-Fi): Yes
Network (Wi-Fi standards): 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)/Wi-Fi 7 (802.11be)
Features (Product colour): Grey
Packaging content (Screws included): Yes
Processor (Processor manufacturer): AMD
Network (Top Wi-Fi standard): Wi-Fi 7 (802.11be)
Features (Component for): PC
Memory (Maximum internal memory): 128 GB
Memory (Memory channels): Dual-channel
Graphics (On-board graphics card): No
Network (LAN controller): Realtek RTL8126
Expansion slots (PCI Express x16 (Gen 5.x) slots): 1
Processor (Compatible processor series): AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
Processor (Processor socket): Socket AM5
Processor (Supported processor sockets): Socket AM5
Memory (Memory slots type): DIMM
Memory (Number of memory slots): 2
Memory (Supported memory clock speed (max)): 8200 MHz
Memory (Supported memory types): DDR5-SDRAM
Memory (Unbuffered memory): Yes
Storage controllers (Supported storage drive interfaces): M.2,NVMe,SATA III
Internal I/O (ATX Power connector (24-pin)): Yes
Internal I/O (CPU fan connector): Yes
Internal I/O (Number of chassis fan connectors): 6
Internal I/O (Number of SATA III connectors): 2
Internal I/O (RGB LED pin header): Yes
Internal I/O (TPM connector): Yes
Internal I/O (USB 2.0 connectors): 1
Internal I/O (USB 3.2 Gen 1 (3.1 Gen 1) connectors): 2
Rear panel I/O ports (Ethernet LAN (RJ-45) ports): 1
Rear panel I/O ports (HDMI ports quantity): 1
Rear panel I/O ports (USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity): 3
Network (Ethernet interface type): 5 Gigabit Ethernet
Features (Audio output channels): 7.1 channels
Features (Motherboard chipset): AMD B850
Features (Motherboard chipset family): AMD
Features (Motherboard form factor): mini ITX
Expansion slots (Number of M.2 (M) slots): 2
Storage controllers (RAID levels): 0/1
Storage controllers (RAID support): Yes
Internal I/O (Chassis intrusion connector): Yes
Internal I/O (USB 3.2 Gen 2 (3.1 Gen 2) connectors): 1
Rear panel I/O ports (HDMI version): 2.1
Rear panel I/O ports (S/PDIF out port): Yes
Rear panel I/O ports (USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity): 2
Other features (Quick installation guide): Yes
Memory (ECC сompatibility): Non-ECC
Internal I/O (Number of CPU fan connectors): 1
Packaging content (Antenna included): Yes
Rear panel I/O ports (USB connector type): USB Type-A/USB Type-C
Rear panel I/O ports (USB 3.2 Gen 2x2 Type-C ports quantity): 1
