Mainboard|GIGABYTE|AMD B550|SAM4|Micro-ATX|Memory DDR4|Memory slots 4|1xPCI-Express 3.0 1x|1xPCI-Express 4.0 16x|2xM.2|1xHDMI|1x
  • Mainboard|GIGABYTE|AMD B550|SAM4|Micro-ATX|Memory DDR4|Memory slots 4|1xPCI-Express 3.0 1x|1xPCI-Express 4.0 16x|2xM.2|1xHDMI|1x

Mainboard|GIGABYTE|AMD B550|SAM4|Micro-ATX|Memory DDR4|Memory slots 4|1xPCI-Express 3.0 1x|1xPCI-Express 4.0 16x|2xM.2|1xHDMI|1x

B550MK1.1
GIGABYTE
AMD B550 | SAM4 | Micro-ATX | DDR4 | 4733/4600/4400/4266/4133/4000/3866/3733/3600/3466/3400/3200/2933/2666/2400/2133 MHz | Memory slots 4 | Video | Audio | LAN Gigabit | RAID SATA 0, 1, 10 | TPM Header
€78.15
VAT included
Quantity
Laos
30 Items

Description

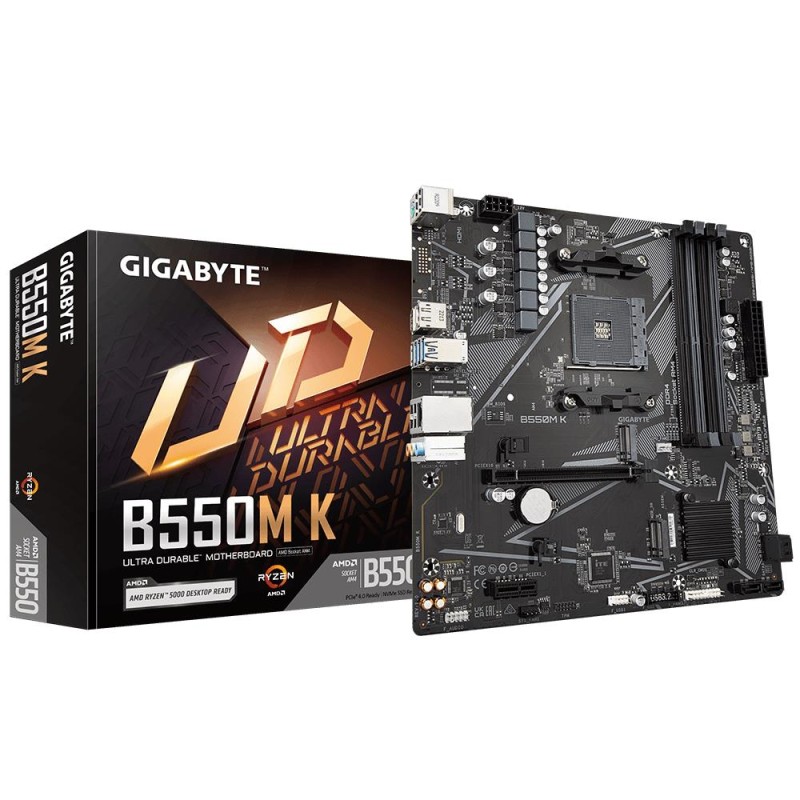

GIGABYTE B550M K 1.1
AMD B550 Ultra Durable Motherboard with Digital VRM Solution, PCIe 4.0 x16 Slot, Dual PCIe 4.0/3.0 M.2 Connectors, GbE LAN, Smart Fan 5 with FAN STOP

+ Supports AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series and Ryzen 3000 Series Processors
+ Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
+ Ultra Durable PCIe 4.0 Ready x16 Slot
+ Dual Ultra-Fast NVMe PCIe 4.0/3.0 M.2 Connectors
+ High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
+ GbE LAN with Bandwidth Management
+ Rear DisplayPort and HDMI for Multi-display Support
+ Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
+ Anti-Sulfur Resistors Design

Product Details
GIGABYTE
B550MK1.1
30 Items

Data sheet

Vendor Homepage
www.gigabyte.com/Motherboard/B550M-K-rev-11 kf
Form Factor
Micro-ATX
Socket
SAM4
Input/Output connectors (USB 2.0)
4
Interface (SATA)
Yes
Memory type
DDR4
Frequency speed
2133/2400/2666/2933/3200/3400/3466/3600/3733/3866/4000/4133/4266/4400/4600/4733 MHz
Input/Output connectors (RJ45)
1
Input/Output connectors (HDMI)
1
Integrated LAN
Gigabit
Input/Output connectors (Audio-In)
2
Chipset
AMD B550
Integrated audio
Yes
Integrated video
Yes
Memory slots
4
Input/Output connectors (Audio-Out)
1
Input/Output connectors (PS/2)
1
RAID
SATA 0, 1, 10
TPM
Header
Expansion slots (PCI-Express 3.0 1x)
1
Expansion slots (M.2)
2
Input/Output connectors (DisplayPort)
1
Garantija
36
Input/Output connectors (USB 3.2)
4
Expansion slots (PCI-Express 4.0 16x)
1
Model
B550M K (rev. 1.1)
Category Code
MBA
Unit Box Height
0.055
Unit Box Length
0.27
Unit Box Width
0.27
Units per Shipping Box
1
Unit Calculated Volume
0.00401 cubm
Product Net Weight
0.62 kg
Unit Calculated Weight
0.777 kg

Specific References

EAN13
4719331852764
MPN
1410657
