Mainboard|GIGABYTE|AMD B850|SAM5|Micro-ATX|Memory DDR5|Memory slots 4|B850MAELTWF6E1.1
  • Mainboard|GIGABYTE|AMD B850|SAM5|Micro-ATX|Memory DDR5|Memory slots 4|B850MAELTWF6E1.1

Mainboard|GIGABYTE|AMD B850|SAM5|Micro-ATX|Memory DDR5|Memory slots 4|B850MAELTWF6E1.1

1447470
GIGABYTE
AMD B850 | SAM5 | Micro-ATX | DDR5 | 8200/8000/7950/7900/7800/7600/7400/7200/7000/6800/6600/6400/6200/6000/5800/5600/5200/4800/4400 MHz | Memory slots 4 | Video Depending on CPU | Audio | LAN 2.5 Gigabit | RAID SATA 0, 1, 10; NVMe 0, 1, 5, 10
€196.80
VAT included
Quantity
Laos
13 Items

Description

B850M AORUS ELITE WIFI6E (rev. 1.x)

  • X3D Turbo Mode : Unleash new era gaming performance
  • DDR5 OC up to 8200MT/s
  • AMD Socket AM5 : Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
  • Digital twin 12+2+2 phases VRM solution
  • Dual Channel DDR5 : 4*DIMMs with AMD EXPO™Memory Module Support
  • WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
  • EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design
  • EZ-Latch Click : M.2 heatsinks with screwless design
  • Sensor Panel Link : Onboard video port for hassle-free in-chassis panel setup
  • Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
  • Ultra-Fast Storage : 2*M.2 slots, including PCIe 5.0 x4
  • Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard Ext.
  • Fast Networking : 2.5GbE LAN & Wi-Fi 6E with directional Ultra-high gain antenna
  • Extended Connectivity : HDMI,Displayport
  • PCIe UD Slot : PCIe 5.0 x16 slots with 10X strength for graphics card & Better Heat dissipation effect
Product Details
GIGABYTE
1447470
13 Items

Data sheet

Vendor Homepage
www.gigabyte.com/lv/Motherboard/B850M-AORUS-ELITE-WIFI6E-rev-1x kf
Form Factor
Micro-ATX
Socket
SAM5
Input/Output connectors (USB 2.0)
4
Interface (SATA)
Yes
Memory type
DDR5
Frequency speed
4400/4800/5200/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600/7800/7900/7950/8000/8200 MHz
Input/Output connectors (RJ45)
1
Integrated LAN
2.5 Gigabit
Input/Output connectors (Optical S/PDIF)
1
Interface (Bluetooth)
Yes
Interface (WiFi)
Yes
Chipset
AMD B850
Integrated audio
Yes
Integrated video
Depending on CPU
Memory slots
4
RAID
SATA 0, 1, 10 NVMe 0, 1, 5, 10
Expansion slots (PCI-Express 3.0 1x)
1
Expansion slots (M.2)
1
Input/Output connectors (DisplayPort)
1
Input/Output connectors (Audio port)
2
Interface (USB-C)
Yes
Garantija
36
Input/Output connectors (USB 3.2)
7
Expansion slots (PCI-Express 4.0 1x)
1
Model
B850M AORUS ELITE WIFI6E (rev. 1.x)
Category Code
MBA
Expansion slots (PCI-Express 5.0 16x)
1
Expansion slots (PCI-Express 4.0 4x)
1
Unit Box Height
0.07
Unit Box Length
0.27
Unit Box Width
0.27
Input/Output connectors (USB-C)
1
Units per Shipping Box
8
Unit Calculated Volume
0.006549 cubm
Product Net Weight
0.7 kg
Unit Calculated Weight
1.96 kg
CnCode
84733020

Specific References

EAN13
4719331871123
MPN
B850M A ELT WF6E 1.1
16 other products in the same category:
Mainboard|MSI|AMD A620|SAM5|Micro-ATX|Memory DDR5|Memory slots 2|1xPCI-Express 3.0 1x|1xPCI-Express 4.0 16x|1xM.2|1x15pin D-sub| Quick view

Reference: 1433356

Brand: MSI

Mainboard|MSI|AMD A620|SAM5|Micro-ATX|Memory DDR5|Memory slots 2|1xPCI-Express 3.0 1x|1xPCI-Express 4.0 16x|1xM.2|1x15pin D-sub|

AMD A620 | SAM5 | Micro-ATX | DDR5 | 6800/6600/6400/6200/6000/5800/5600/5400/5200/5000/4800 MHz | Memory slots 2 | 1xPCI-Express 3.0 1x | 1xPCI-Express 4.0 16x | 1xM.2 | 1x15pin D-sub | 1xHDMI | 2xUSB 2.0 | 4xUSB 3.2 | 2xPS/2 | 1xRJ45 | 3xAudio port | SATA | Video Depending on CPU | Audio | LAN 2.5 Gigabit | RAID SATA 0, 1, 10 | TPM Header
€81.02
More
Laos
Mainboard|GIGABYTE|AMD B650|SAM5|ATX|Memory DDR5|2xPCI-Express 3.0 16x|1xPCI-Express 5.0 16x|3xM.2|1xHDMI|1xDisplayPort|2xUSB 2. Quick view

Reference: 1430736

Brand: GIGABYTE

Mainboard|GIGABYTE|AMD B650|SAM5|ATX|Memory DDR5|2xPCI-Express 3.0 16x|1xPCI-Express 5.0 16x|3xM.2|1xHDMI|1xDisplayPort|2xUSB 2.

AMD B650|SAM5|ATX|DDR5|8000/7800/7600/7200/7000/6800/6666/6600/6400/6200/5600/5200/4800/4400 MHz|2xPCI-Express 3.0 16x|1xPCI-Express 5.0 16x|3xM.2|1xHDMI|1xDisplayPort|2xUSB 2.0|5xUSB 3.2 type B|2xUSB 3.2|1xUSB-C|1xRJ45|3xAudio port|SATA|USB-C|USB 2.0|USB 3.2|Bluetooth|Video Depending on CPU|Audio|LAN 2.5 Gigabit|RAID SATA 0, 1, 10; NVMe 0, 1, 10|TPM Header
€194.61
More
Laos
Mainboard|MSI|AMD B850|SAM5|ATX|Memory DDR5|Memory slots 4|4xPCI-Express 16x|3xM.2|1xHDMI|1xAudio-In|1xAudio-Out|4xUSB 2.0|2xUSB Quick view

Reference: 1431311

Brand: MSI

Mainboard|MSI|AMD B850|SAM5|ATX|Memory DDR5|Memory slots 4|4xPCI-Express 16x|3xM.2|1xHDMI|1xAudio-In|1xAudio-Out|4xUSB 2.0|2xUSB

AMD B850|SAM5|ATX|DDR5|8200/8000/7950/7900/7800/7600/7500/7467/7400/7200/7000/6800/6666/6600/6400/6200/6000/5800/5600/5500/5400/5333/5300/5200/5133/5100/5066/5000/4933/4866/4800 MHz|Memory slots 4|4xPCI-Express 16x|3xM.2|1xHDMI|1xAudio-In|1xAudio-Out|4xUSB 2.0|2xUSB 3.2|2xUSB-C|1xOptical S/PDIF|1xRJ45|SATA|USB-C|USB 2.0|USB 3.2|Bluetooth|WiFi|SATA...
€180.63
More
Laos
Mainboard|MSI|AMD X870E|SAM5|ATX|Memory DDR5|Memory slots 4|3xPCI-Express 16x|4xM.2|1xAudio-In|1xAudio-Out|4xUSB 2.0|2xUSB 3.2|3 Quick view

Reference: 1431317

Brand: MSI

Mainboard|MSI|AMD X870E|SAM5|ATX|Memory DDR5|Memory slots 4|3xPCI-Express 16x|4xM.2|1xAudio-In|1xAudio-Out|4xUSB 2.0|2xUSB 3.2|3

AMD X870E | SAM5 | ATX | DDR5 | 8400/8266/8200/8000/7950/7900/7800/7600/7500/7467/7400/7200/7000/6800/6666/6600/6400/6200/6000/5800/5600/5500/5400/5333/5300/5200/5133/5100/5066/5000/4933/4866/4800 MHz | Memory slots 4 | Video Depending on CPU | Audio | LAN 5 Gigabit | RAID SATA 0, 1, 10 | TPM Header
€331.62
More
Laos

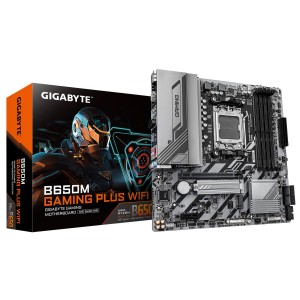

Mainboard|GIGABYTE|AMD B650|SAM5|Micro-ATX|Memory DDR5|Memory slots 4|1xPCI-Express 4.0 4x |1xPCI-Express 4.0 16x|2xM.2|1xHDMI|1 Quick view
