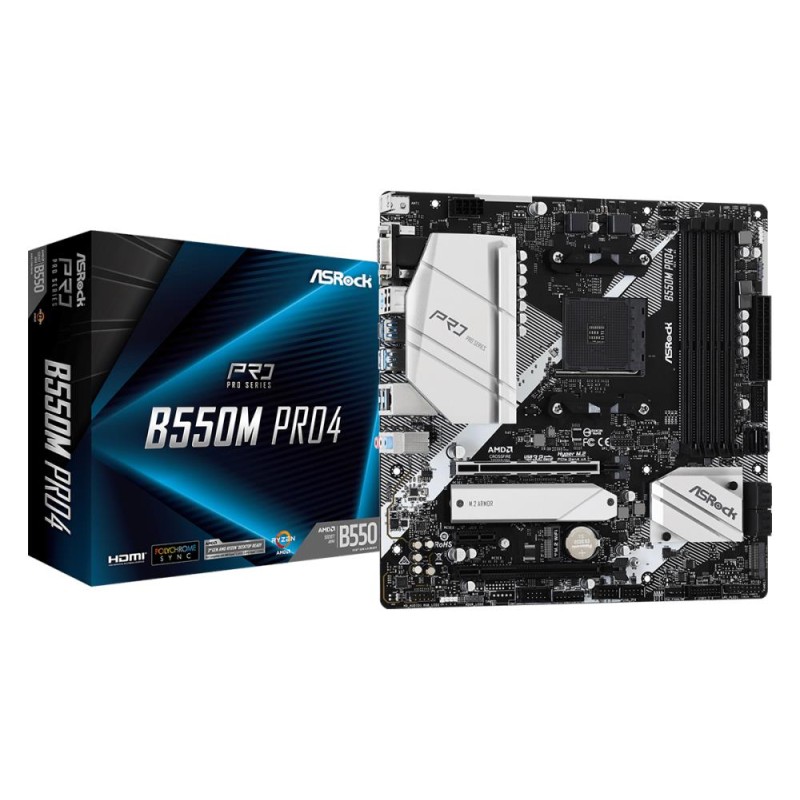

Mainboard|ASROCK|AMD B550|SAM4|MicroATX|1xPCI-Express 3.0 1x|1xPCI-Express 3.0 16x|1xM.2|1xPCI-Express 4.0 16x|Memory DDR4|Memor
  • Mainboard|ASROCK|AMD B550|SAM4|MicroATX|1xPCI-Express 3.0 1x|1xPCI-Express 3.0 16x|1xM.2|1xPCI-Express 4.0 16x|Memory DDR4|Memor

Mainboard|ASROCK|AMD B550|SAM4|MicroATX|1xPCI-Express 3.0 1x|1xPCI-Express 3.0 16x|1xM.2|1xPCI-Express 4.0 16x|Memory DDR4|Memor

1305223
ASROCK
AMD B550 | SAM4 | Micro-ATX | DDR4 | 4733/4666/4600/4533/4466/4400/4333/4266/4200/4133/4000/3866/3800/3733/3600/3466/3200/2933/2666/2400/2133 MHz | Memory slots 4 | Video Depending on CPU | Audio Realtek ALC1200 | LAN Gigabit | RAID SATA 0, 1, 10
€96.75
VAT included
Quantity
Laos
12 Items

Description

  • Supports 3rd Gen AMD AM4 Ryzen™ / Future AMD Ryzen™ Processors
  • 8 Power Phase Design, Digi Power
  • Supports DDR4 4733+ (OC)
  • 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 1 PCIe 3.0 x1, 1 M.2 Key E for WiFi
  • Graphics Output Options: HDMI, DisplayPort, D-Sub
  • AMD CrossFireX™
  • 7.1 CH HD Audio (Realtek ALC1200 Audio Codec), Nahimic Audio
  • 6 SATA3, 1 Hyper M.2 (PCIe Gen4 x4), 1 M.2 (PCIe Gen3 x2 & SATA3)
  • 2 USB 3.2 Gen2 (Rear Type A+C), 8 USB 3.2 Gen1 (4 Front, 4 Rear)
  • Realtek Gigabit LAN
Product Details
ASROCK
1305223
12 Items

Data sheet

Vendor Homepage
www.asrock.com/mb/AMD/B550M%20Pro4/
Included Accessories
- Quick Installation Guide, Support CD, I/O Shield - 2 x SATA Data Cables - 2 x Screws for M.2 Sockets
Form Factor
Micro-ATX
Interface (SATA 3.0)
Yes
Socket
SAM4
Input/Output connectors (USB 2.0)
2
Memory type
DDR4
Frequency speed
2133/2400/2666/2933/3200/3466/3600/3733/3800/3866/4000/4133/4200/4266/4333/4400/4466/4533/4600/4666/4733 MHz
Interface (USB 2.0)
Yes
Input/Output connectors (RJ45)
1
Input/Output connectors (HDMI)
1
Integrated LAN
Gigabit
Chipset
AMD B550
Input/Output connectors (15pin D-sub)
1
Integrated audio
Realtek ALC1200
Integrated video
Depending on CPU
Memory slots
4
Input/Output connectors (PS/2)
1
RAID
SATA 0, 1, 10
Expansion slots (PCI-Express 3.0 16x)
1
Interface (Serial)
Yes
Expansion slots (PCI-Express 3.0 1x)
1
Expansion slots (M.2)
1
Input/Output connectors (DisplayPort)
1
Input/Output connectors (Audio port)
3
Garantija
36
Input/Output connectors (USB 3.2)
5
Interface (USB 3.2)
Yes
Expansion slots (PCI-Express 4.0 16x)
1
Category Code
MBA
Unit Box Height
0.26
Unit Box Length
0.06
Unit Box Width
0.28
Input/Output connectors (USB-C)
1
Units per Shipping Box
20
Unit Calculated Volume
0.005011 cubm
Product Net Weight
1.1 kg
Unit Calculated Weight
1.39 kg

Specific References

EAN13
4710483931598
MPN
B550MPRO4
