Mainboard|GIGABYTE|AMD B550|SAM4|Micro-ATX|Memory DDR4|Memory slots 4|1xPCI-Express 3.0 1x|1xPCI-Express 3.0 4x|1xPCI-Express 4.
  • Mainboard|GIGABYTE|AMD B550|SAM4|Micro-ATX|Memory DDR4|Memory slots 4|1xPCI-Express 3.0 1x|1xPCI-Express 3.0 4x|1xPCI-Express 4.

Mainboard|GIGABYTE|AMD B550|SAM4|Micro-ATX|Memory DDR4|Memory slots 4|1xPCI-Express 3.0 1x|1xPCI-Express 3.0 4x|1xPCI-Express 4.

1404034
GIGABYTE
AMD B550 | SAM4 | Micro-ATX | DDR4 | 4733/4600/4400/4133/4000/3866/3733/3600/3466/3400/3200/2933/2666/2400/2133 MHz | Memory slots 4 | 1xPCI-Express 3.0 1x | 1xPCI-Express 3.0 4x | 1xPCI-Express 4.0 16x | 2xM.2 | 1xDVI-D | 1xHDMI | 2xAudio-In | 1xAudio-Out | 4xUSB 2.0 | 4xUSB 3.2 | 1xPS/2 | 1xRJ45 | SATA | Video Depending on CPU | Audio | LAN Gigabit | RAID SATA 0, 1, 10 | TPM Header
€81.01
VAT included
Quantity
Laos
30 Items

Description

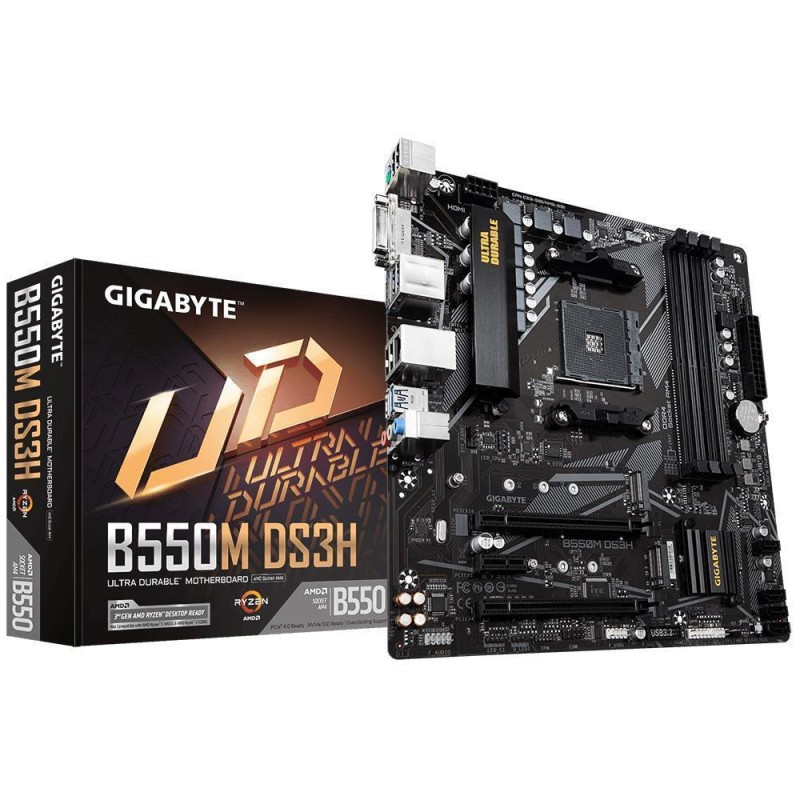

GIGABYTE B550M DS3H 1.7
AMD B550 Ultra Durable Motherboard with Pure Digital VRM Solution, PCIe 4.0 x16 Slot, Dual PCIe 4.0/3.0 M.2 Connectors, Realtek GbE LAN, Smart Fan 5 with FAN STOP,  RGB FUSION 2.0, Q-Flash Plus

+ Supports AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series and Ryzen 3000 Series Processors
+ Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
+ 5+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs
+ Ultra Durable PCIe 4.0 Ready x16 Slot
+ Dual Ultra-Fast NVMe PCIe 4.0/3.0 M.2 Connectors
+ High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
+ Realtek GbE LAN with Bandwidth Management
+ Rear HDMI & DVI Support
+ RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
+ Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
+ Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
+ Anti-Sulfur Resistors Design

Product Details
GIGABYTE
1404034
30 Items

Data sheet

Vendor Homepage
www.gigabyte.com/Motherboard/B550M-DS3H-rev-17 kf
Form Factor
Micro-ATX
Socket
SAM4
Input/Output connectors (USB 2.0)
4
Interface (SATA)
Yes
Memory type
DDR4
Frequency speed
2133/2400/2666/2933/3200/3400/3466/3600/3733/3866/4000/4133/4400/4600/4733 MHz
Input/Output connectors (RJ45)
1
Input/Output connectors (HDMI)
1
Integrated LAN
Gigabit
Input/Output connectors (Audio-In)
2
Chipset
AMD B550
Integrated audio
Yes
Integrated video
Depending on CPU
Memory slots
4
Input/Output connectors (Audio-Out)
1
Input/Output connectors (PS/2)
1
RAID
SATA 0, 1, 10
TPM
Header
Expansion slots (PCI-Express 3.0 1x)
1
Expansion slots (M.2)
2
Expansion slots (PCI-Express 3.0 4x)
1
Garantija
36
Input/Output connectors (USB 3.2)
4
Expansion slots (PCI-Express 4.0 16x)
1
Model
B550M DS3H (rev. 1.7)
Category Code
MBA
Input/Output connectors (DVI-D)
1
Unit Box Height
0.05
Unit Box Length
0.27
Unit Box Width
0.27
Units per Shipping Box
10
Unit Calculated Volume
0 cubm
Product Net Weight
1 kg
Unit Calculated Weight
1 kg

Specific References

EAN13
4719331809416
MPN
B550MDS3H1.7
