Switch|TELTONIKA|Switch type Unmanaged|Form factor DIN rail|5xRJ-45 ports|RJ-45 Ports Type Fast Ethernet (10/100)|5xFast Etherne

Viite TSF010000000

Tuotemerkki TELTONIKA

34,09 €

Sisältää alv:n

Määrä

Laos

Varastossa: 20 Tuotteet

Kuvaus
Tuotetiedot

Kuvaus

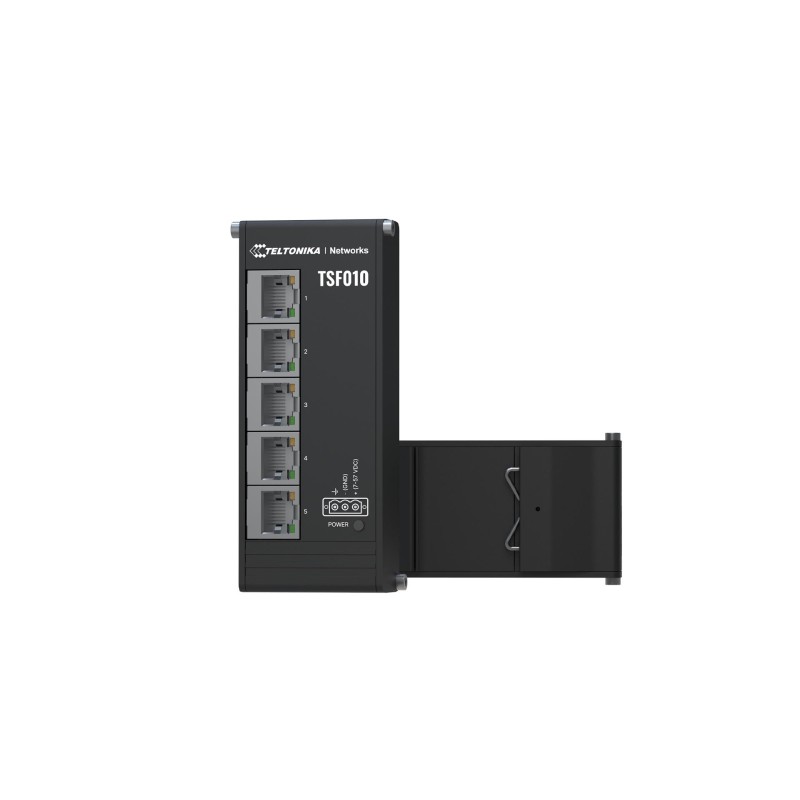

The TSF010 is an unmanaged Ethernet switch featuring a flat design and integrated DIN rail mounting for plug-and-play deployment in industrial cabinet applications. This Ethernet switch is compact and lightweight, measuring 113 x 28 x 50 mm and weighing only 142 g. Its 3-pin power input and 7-57 VDC voltage range make it a flexible unmanaged switch tailor-made for industrial use. The TSF010 is equipped with five 10/100 Mbps RJ45 ports for reliable connectivity.

3-PIN POWER INPUT
Flexible and tailor-made for industrial use
FLAT & COMPACT
Flat and compact design weighing only 142 g
INTEGRATED DIN RAIL BRACKET
Easy mounting for plug-and-play deployment
7-57 VDC
Suitable voltage range for industrial applications

Tuotetiedot

Tuotemerkki TELTONIKA

Viite TSF010000000

Varastossa 20 Tuotteet

Lisätiedot

Vendor Homepage: https://teltonika-networks.com/products/ethernet-switches/TSF010/
Garantija: 24
Category Code: SWI
Unit Box Height: 0.031
Unit Box Length: 0.139
Unit Box Width: 0.055
Units per Shipping Box: 1
Unit Calculated Volume: 0.000237 cubm
Unit Calculated Weight: 0.15 kg
Summary: Teltonika NETWORKS TSF010 Flat Ethernet Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 2048 entries, Switching capacity:
Weight & dimensions (Width): 113 mm
Weight & dimensions (Depth): 50 mm
Weight & dimensions (Height): 28 mm
Weight & dimensions (Weight): 142 g
Power (Power source): DC
Operational conditions (Operating temperature (T-T)): -40 - 75 C
Design (Product colour): Black
Power (Power consumption (max)): 1.5 W
Power (Power consumption (typical)): 1 W
Design (Housing material): Aluminium
Operational conditions (Operating relative humidity (H-H)): 10 - 90 %
Design (Form factor): DIN rail
Design (International Protection (IP) code): IP30
Network (Networking standards): IEEE 802.3/IEEE 802.3ab/IEEE 802.3u/IEEE 802.3x
Power (Input voltage): 7 - 57 V
Management features (Switch type): Unmanaged
Ports & interfaces (Basic switching RJ-45 Ethernet ports quantity): 5
Ports & interfaces (Basic switching RJ-45 Ethernet ports type): Fast Ethernet (10/100)
Network (10G support): No
Data transmission (Switching capacity): 10 Gbit/s
Design (Rack mounting): No
Power (Power supply included): No
Power over Ethernet (PoE) (Power over Ethernet (PoE)): No
Ports & interfaces (Fast Ethernet (copper) ports quantity): 5
Data transmission (MAC address table): 2048 entries
Network (Auto MDI/MDI-X): Yes
Network (Full duplex): Yes
Data transmission (Jumbo frames): 9216
Data transmission (Jumbo frames support): Yes
Design (DIN rail mounting): Yes
Design (Stackable): No

Tilausviitteet

EAN13: 4779051841356
Valmistajan tuotenumero (MPN): 1456382
