7331021066199NET SWITCH 4PORT POE+ T8504-R/01633-001 AXIS
  • 7331021066199NET SWITCH 4PORT POE+ T8504-R/01633-001 AXIS

NET SWITCH 4PORT POE+ T8504-R/01633-001 AXIS

01633-001
AXIS
Type Managed, 4xBasic switching RJ-45 Ethernet ports quantity, Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000), Console port RJ-45, Switching capacity 16 Gbit/s, Throughput 11.9 Mpps, Password protection Yes, Product colour Black, Power over Ethernet (PoE) Yes, 4xPower over Ethernet (PoE) ports quantity, Power over Ethernet (PoE) power per port 60 W, Total Power over Ethernet (PoE) budget 240 W, Width 62 mm, Depth 130 mm, Height 135 mm, Weight 600 g
943,62 €
858,69 € Säästä 84,93 €
Sisältää alv:n
Monthly payment from 27.05€
Määrä
Laos
2 Tuotteet

Kuvaus

AXIS T8504-R Industrial PoE Switch is a 4-port managed industrial PoE Gigabit switch. In addition, the switch is equipped with two RJ45 and two SFP data ports that allows for extra devices to be connected. The switch uses the same intuitive administrator interface as AXIS T85 PoE Network Switch Series. The ruggedized switch is perfect for challenging environments when mounted inside a surveillance cabinet. It is designed to withstand shock, vibrations and temperatures from -40 °C to 75 °C (-40 °F to 167 °F), making it perfect for high demanding installations such as alongside highways and tunnels.

  • 60 W per port, 240 W power budget; Compliant with High PoE 60 W; Dual DC power redundancy; High availability with Rapid Ring; NEMA TS-2 compliant
Tuotetiedot
AXIS
01633-001
2 Tuotteet

Lisätiedot

Vendor Homepage
https://www.axis.com/
Garantija
60
Category Code
SWI
Unit Box Height
0.21
Unit Box Length
0.26
Unit Box Width
0.085
Units per Shipping Box
1
Unit Calculated Volume
0.004641 cubm
Unit Calculated Weight
1.06 kg
Summary
Axis 01633-001. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 4, Console port: RJ-45. MAC address table: 8000 entries, Switching capacity: 16 Gbit/s. Network
Weight & dimensions (Width)
62 mm
Weight & dimensions (Depth)
130 mm
Weight & dimensions (Height)
135 mm
Weight & dimensions (Weight)
600 g
Packaging content (Quick start guide)
Yes
Logistics data (Harmonized System (HS) code)
85176990
Operational conditions (Operating temperature (T-T))
-40 - 75 C
Operational conditions (Storage temperature (T-T))
-40 - 85 C
Design (Product colour)
Black
Design (Housing material)
Aluminium
Certificates (Certification)
EN 55032, EN 55024, FCC, ICES-003, VCCI, RCM AS/NZS CISPR 32, EN 50121-4, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, EN 61000-6-4 IEC 62236-4, IEC/EN/UL 60950-1, IEC 60068-2-6, IEC 60068-2-27, 60068-2-31, NEMA TS-2-2003
Operational conditions (Operating relative humidity (H-H))
5 - 95 %
Security (Password protection)
Yes
Packaging data (Mounting brackets included)
Yes
Security (Security algorithms)
HTTPS/SNMP/SNMPv3
Network (Networking standards)
IEEE 802.1Q/IEEE 802.1x
Management features (Switch type)
Managed
Ports & interfaces (Basic switching RJ-45 Ethernet ports quantity)
4
Ports & interfaces (Basic switching RJ-45 Ethernet ports type)
Gigabit Ethernet (10/100/1000)
Network (10G support)
No
Data transmission (Switching capacity)
16 Gbit/s
Data transmission (Throughput)
11.9 Mpps
Power (DC input voltage)
54 - 57 V
Power over Ethernet (PoE) (Power over Ethernet (PoE))
Yes
Network (VLAN support)
Yes
Security (Authentication type)
RADIUS
Ports & interfaces (Power connector)
DC-in jack
Data transmission (MAC address table)
8000 entries
Ports & interfaces (Console port)
RJ-45
Power over Ethernet (PoE) (Power over Ethernet (PoE) ports quantity)
4
Data transmission (Jumbo frames)
9216
Data transmission (Jumbo frames support)
Yes
Power over Ethernet (PoE) (Total Power over Ethernet (PoE) budget)
240 W
Power over Ethernet (PoE) (Power over Ethernet (PoE) power per port)
60 W
Ports & interfaces (Fiber optic connector)
SFP
Power (Surge protection)
Yes

Tilausviitteet

EAN13
7331021066199
Valmistajan tuotenumero (MPN)
1262974
16 muuta tuotetta samassa kategoriassa:
7331021066199NET SWITCH 4PORT POE+ T8504-R/01633-001 AXIS Pikakatselu

Viite: TL-SG1005LP

Tuotemerkki: TP-LINK

Verkkokytkin TP-LINK Desktop/pedestal 5x10Base-T / 100Base-TX / 1000Base-T PoE ports 1 TL-SG1005LP

Type Unmanaged, Quality of Service (QoS) support Yes, 5xBasic switching RJ-45 Ethernet ports quantity, Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000), Switching capacity 10 Gbit/s, Forwarding rate 7.44 Mpps, Product colour Black, Power source DC/PoE, Power supply included Yes, Power over Ethernet (PoE) Yes, 4xPower over...
29,48 €
Lisää
Laos
- 37,46 € Alennuksessa! Alennettu hinta 7331021066199NET SWITCH 4PORT POE+ T8504-R/01633-001 AXIS Pikakatselu

Viite: CS4006-4ET2GT-60

Tuotemerkki: DAHUA

Verkkokytkin DAHUA DH-CS4006-4ET2GT-60 Verkkokytkin layer L2 2xRJ-45 ports RJ-45 Ports Type Fast Ethernet (10/100) 4xGigabit Eth

DH-CS4006-4ET2GT-60, Switch layer L2, 2xBasic switching RJ-45 Ethernet ports quantity, Basic switching RJ-45 Ethernet ports type Fast Ethernet (10/100), Switching capacity 4.8 Gbit/s, Throughput 3.57 Mpps, Power over Ethernet (PoE) Yes, 4xPower over Ethernet (PoE) ports quantity, Total Power over Ethernet (PoE) budget 60 W, Width 115 mm, Depth...
41,40 € 78,86 €
Lisää
Laos
7331021066199NET SWITCH 4PORT POE+ T8504-R/01633-001 AXIS Pikakatselu

Viite: IES208G

Tuotemerkki: TP-LINK

Verkkokytkin TP-LINK Omada IES208G Type L2 IES208G

Series Omada, IES208G, Type Managed, Quality of Service (QoS) support Yes, Cloud-managed Yes, Web-based management Yes, 6xBasic switching RJ-45 Ethernet ports quantity, Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000), 2xCombo SFP ports quantity, Port mirroring Yes, Switching capacity 16 Gbit/s, Forwarding rate 11.9...
161,82 €
Lisää
Viimeinen varastossa!
- 2,86 € Alennuksessa! Alennettu hinta 7331021066199NET SWITCH 4PORT POE+ T8504-R/01633-001 AXIS Pikakatselu

Viite: SF1005-EUR

Tuotemerkki: DAHUA

Verkkokytkin DAHUA 5xRJ-45 ports SF1005-EUR

Type Unmanaged, Switch layer L2, 5xBasic switching RJ-45 Ethernet ports quantity, Basic switching RJ-45 Ethernet ports type Fast Ethernet (10/100), Full duplex Yes, Transmission distance (max) 0.25 km, Switching capacity 1.8 Gbit/s, Forwarding rate 0.744 Mpps, Form factor Desktop/Wall-Mounting, Product colour Black, Power source DC/PoE, Power...
10,16 € 13,02 €
Lisää
Laos
7331021066199NET SWITCH 4PORT POE+ T8504-R/01633-001 AXIS Pikakatselu

Viite: USW-PRO-48-POE

Tuotemerkki: UBIQUITI

Verkkokytkin UBIQUITI USW-PRO-48-POE Type L3 Rack 48x10Base-T / 100Base-TX / 1000Base-T 4xSFP PoE+ ports 48 600 Watts USW-PRO-48

USW-PRO-48-POE, Type Managed, Switch layer L2/L3, 48xBasic switching RJ-45 Ethernet ports quantity, Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000), 4xSFP+ module slots quantity, Yes, Port mirroring Yes, Full duplex Yes, Switching capacity 176 Gbit/s, Throughput 88000 Mpps, Forwarding rate 130.944 Mpps, Rack mounting...
1 046,75 €
Lisää
Laos
7331021066199NET SWITCH 4PORT POE+ T8504-R/01633-001 AXIS Pikakatselu

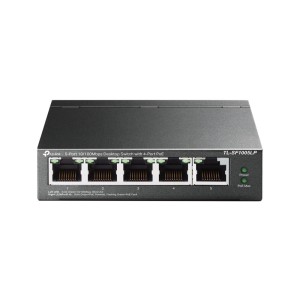

Viite: TL-SF1005LP

Tuotemerkki: TP-LINK

Verkkokytkin TP-LINK 5x10Base-T / 100Base-TX PoE ports 4 TL-SF1005LP

Type Unmanaged, 5xBasic switching RJ-45 Ethernet ports quantity, Basic switching RJ-45 Ethernet ports type Fast Ethernet (10/100), Full duplex Yes, Half duplex Yes, Switching capacity 1 Gbit/s, Forwarding rate 0.744 Mpps, Product colour Black, Power source DC/PoE, Power supply included Yes, Power over Ethernet (PoE) Yes, 4xPower over Ethernet...
27,38 €
Lisää
Laos
- 2,57 € Alennuksessa! Alennettu hinta 7331021066199NET SWITCH 4PORT POE+ T8504-R/01633-001 AXIS Pikakatselu

Viite: DH-SF1008L

Tuotemerkki: DAHUA

Verkkokytkin DAHUA SF1008L-EUR SF1008L-EUR

SF1008L-EUR, Type Unmanaged, 8xBasic switching RJ-45 Ethernet ports quantity, Basic switching RJ-45 Ethernet ports type Fast Ethernet (10/100), Switching capacity 1.6 Gbit/s, Forwarding rate 0.744 Mpps, Form factor Desktop, Product colour Light grey, Power source DC/PoE, Power consumption (typical) 0.1 W, Power over Ethernet (PoE) Yes, Width...
9,13 € 11,70 €
Lisää
Laos
7331021066199NET SWITCH 4PORT POE+ T8504-R/01633-001 AXIS Pikakatselu

Viite: TSW202

Tuotemerkki: TELTONIKA

Verkkokytkin TELTONIKA TSW202000000 Type L2 PoE+ ports 8 240 Watts TSW202

TSW202000000, Type Managed, Switch layer L2, Quality of Service (QoS) support Yes, Web-based management Yes, 8xBasic switching RJ-45 Ethernet ports quantity, Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000), 2xInstalled SFP modules quantity, Port mirroring Yes, Full duplex Yes, Switching capacity 20 Gbit/s, Product...
139,60 €
Lisää
Laos
- 330,54 € Alennuksessa! Alennettu hinta 7331021066199NET SWITCH 4PORT POE+ T8504-R/01633-001 AXIS Pikakatselu

Viite: DH-CS4228-24GT-375

Tuotemerkki: DAHUA

Verkkokytkin DAHUA CS4228-24GT-375 Type L2 Desktop/pedestal Rack 375 Watts DH-CS4228-24GT-375

CS4228-24GT-375, Type Managed, Switch layer L2, Web-based management Yes, Cloud-managed Yes, 26xBasic switching RJ-45 Ethernet ports quantity, Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000), 2xSFP module slots quantity, Switching capacity 56 Gbit/s, Forwarding rate 41.66 Mpps, Rack mounting Yes, Product colour Black,...
239,36 € 569,90 €
Lisää
Laos
7331021066199NET SWITCH 4PORT POE+ T8504-R/01633-001 AXIS Pikakatselu

Viite: TL-SG1210PP

Tuotemerkki: TP-LINK

Verkkokytkin TP-LINK TL-SG1210PP 9x10Base-T / 100Base-TX / 1000Base-T 1x10/100/1000BASE-T/SFP combo PoE+ ports 6 TL-SG1210PP

TL-SG1210PP, Type Unmanaged, Quality of Service (QoS) support Yes, 10xBasic switching RJ-45 Ethernet ports quantity, Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000), 1xCombo SFP ports quantity, Switching capacity 20 Gbit/s, Forwarding rate 14.88 Mpps, Product colour Black, Power source DC/PoE, Power supply included Yes,...
116,78 €
Lisää
Laos
- 194,18 € Alennuksessa! Alennettu hinta 7331021066199NET SWITCH 4PORT POE+ T8504-R/01633-001 AXIS Pikakatselu

Viite: CS4226-24ET-240

Tuotemerkki: DAHUA

Verkkokytkin DAHUA CS4226-24ET-240 Desktop/pedestal Rack 1U 24x10Base-T / 100Base-TX 2x10/100/1000BASE-T/SFP combo 2 26 PoE port

CS4226-24ET-240, Type Managed, Switch layer L2, Web-based management Yes, 26xBasic switching RJ-45 Ethernet ports quantity, Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000), 2xSFP module slots quantity, Switching capacity 8.8 Gbit/s, Forwarding rate 6.55 Mpps, Rack mounting Yes, Product colour Black, Power source AC,...
140,62 € 334,80 €
Lisää
Laos
- 25,86 € Alennuksessa! Alennettu hinta 7331021066199NET SWITCH 4PORT POE+ T8504-R/01633-001 AXIS Pikakatselu

Viite: SG4010P

Tuotemerkki: DAHUA

Verkkokytkin DAHUA DH-SG4010P Verkkokytkin layer L2 10xRJ-45 ports RJ-45 Ports Type Gigabit Ethernet (10/100/1000) 8xPower over

DH-SG4010P, Switch layer L2, 10xBasic switching RJ-45 Ethernet ports quantity, Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000), Switching capacity 20 Gbit/s, Forwarding rate 14.88 Mpps, Power source DC/PoE, 8xPower over Ethernet (PoE) ports quantity, Total Power over Ethernet (PoE) budget 110 W, Width 190 mm, Depth 106...
91,69 € 117,55 €
Lisää
Laos
- 214,89 € Alennuksessa! Alennettu hinta 7331021066199NET SWITCH 4PORT POE+ T8504-R/01633-001 AXIS Pikakatselu

Viite: DH-CS4226-24ET-375

Tuotemerkki: DAHUA

Verkkokytkin DAHUA CS4226-24ET-375 Type L2 Desktop/pedestal PoE ports 24 375 Watts DH-CS4226-24ET-375

CS4226-24ET-375, Type Managed, Switch layer L2, Web-based management Yes, 26xBasic switching RJ-45 Ethernet ports quantity, Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000), 2xSFP module slots quantity, Switching capacity 8.8 Gbit/s, Forwarding rate 6.55 Mpps, Rack mounting Yes, Product colour Black, Power source AC,...
155,62 € 370,51 €
Lisää
Laos
7331021066199NET SWITCH 4PORT POE+ T8504-R/01633-001 AXIS Pikakatselu

Viite: TL-SG1016

Tuotemerkki: TP-LINK

Verkkokytkin TP-LINK 16x10Base-T / 100Base-TX / 1000Base-T TL-SG1016

Type Unmanaged, Quality of Service (QoS) support Yes, 16xBasic switching RJ-45 Ethernet ports quantity, Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000), Full duplex Yes, Half duplex Yes, Switching capacity 32 Gbit/s, Forwarding rate 23.8 Mpps, Rack mounting Yes, Form factor 1U, Product colour Black, Power source AC,...
63,16 €
Lisää
Laos
7331021066199NET SWITCH 4PORT POE+ T8504-R/01633-001 AXIS Pikakatselu

Viite: USW-48

Tuotemerkki: UBIQUITI

Verkkokytkin UBIQUITI USW-48 Type L2 Desktop/pedestal 48x10Base-T / 100Base-TX / 1000Base-T 4xSFP USW-48

USW-48, Type Managed, Switch layer L2, 48xBasic switching RJ-45 Ethernet ports quantity, Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000), 4xSFP module slots quantity, Switching capacity 52 Gbit/s, Forwarding rate 77.376 Mpps, Rack mounting Yes, Product colour Silver, Power supply included Yes, Width 442.4 mm, Depth 285...
408,70 €
Lisää
Laos
7331021066199NET SWITCH 4PORT POE+ T8504-R/01633-001 AXIS Pikakatselu

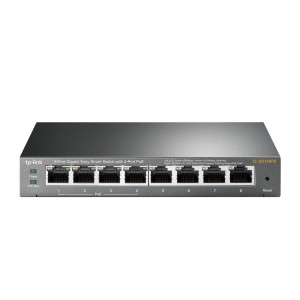

Viite: TL-SG108PE
