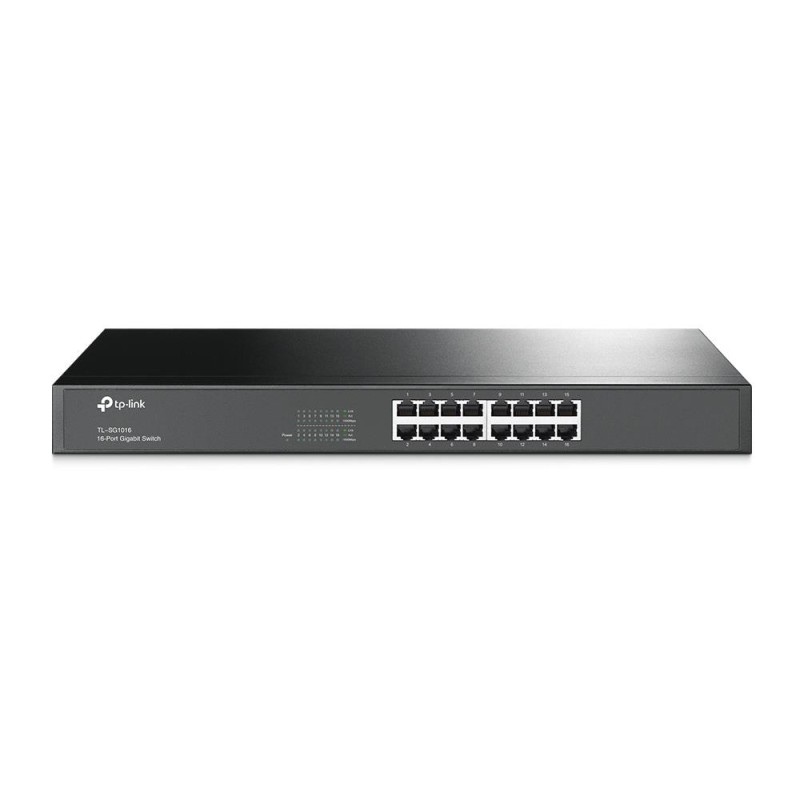

Switch|TP-LINK|16x10Base-T / 100Base-TX / 1000Base-T|TL-SG1016

Name: Switch|TP-LINK|16x10Base-T / 100Base-TX / 1000Base-T|TL-SG1016
Brand: TP-LINK
SKU: TL-SG1016
Price: 63.22 EUR
Availability: InStock

Viite TL-SG1016

Tuotemerkki TP-LINK

63,22 €

Sisältää alv:n

Määrä

Laos

Varastossa: 10 Tuotteet

Kuvaus
Tuotetiedot

Kuvaus

The TL-SG1016 Gigabit Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1016 can save power consumption and 80% of the packaging material can be recycled, making it an eco-friendly solution for your business network.

TP-Link Green Technology
This new generation TL-SG1016 Gigabit Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status to limit the carbon footprint of your network. It also complies with the EU’S RoHS, prohibiting the use of certain hazardous materials. Besides, 80% of the packaging material can be recycled.

High Performance
All 16 ports are Gigabit RJ-45 ports which can provide large file transferring and also be compatible with 10Mbps and 100Mbps Ethernet devices. Featuring non-blocking switching architecture, TL-SG1016 forwards and filters packets at full wire-speed for maximum throughput. With 10KB Jumbo frame, the performance of large files transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make The TL-SG1016 work reliably. It’s a perfect choice to update your network to Gigabit while protecting your previous investment properly.

Easy to Use
The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.

16 10/100/1000Mbps RJ45 ports
Innovative energy-efficient technology saves power consumption
Supports MAC address self-learning and auto MDI/MDIX
Standard 19-inch rack-mountable steel case

Tuotetiedot

Tuotemerkki TP-LINK

Viite TL-SG1016

Varastossa 10 Tuotteet

Lisätiedot

Vendor Homepage: https://www.tp-link.com/hk/business-networking/unmanaged-switch/tl-sg1016/v12/ specifications
Garantija: 60
Category Code: SWI
Unit Box Height: 0.08
Unit Box Length: 0.53
Unit Box Width: 0.25
Units per Shipping Box: 1
Unit Calculated Volume: 0.0106 cubm
Unit Calculated Weight: 2.3 kg
Summary: TP-Link 16-Port Gigabit Rackmount Network Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. Full duplex. MAC address table: 8000 entries, Switching
Weight & dimensions (Width): 440 mm
Weight & dimensions (Depth): 180 mm
Weight & dimensions (Height): 44 mm
Packaging data (Package width): 250 mm
Packaging data (Package depth): 528 mm
Packaging data (Package height): 80 mm
Packaging data (Package weight): 2040 g
Packaging content (Cables included): AC
Power (Power source): AC
Packaging data (Package type): Box
Logistics data (Harmonized System (HS) code): 85176990
Certificates (Compliance certificates): CE/Federal Communications Commission (FCC)/RoHS
Operational conditions (Operating temperature (T-T)): 0 - 40 C
Operational conditions (Storage relative humidity (H-H)): 5 - 90 %
Operational conditions (Storage temperature (T-T)): -40 - 70 C
Sustainability (Sustainability compliance): Yes
Performance (Compatible operating systems): Microsoft Windows 2000/XP/2003/Vista/2008/7/2012/8/10 MacOS NetWare UNIX Linux
Design (Product colour): Black
Power (AC input frequency): 50/60 Hz
Power (AC input voltage): 100 - 240 V
Power (Power consumption (max)): 10.44 W
Design (Housing material): Metal
Operational conditions (Operating relative humidity (H-H)): 10 - 90 %
Design (Form factor): 1U
Packaging content (User guide): Yes
Design (LED indicators): Yes
Network (Copper ethernet cabling technology): 1000BASE-T/100BASE-TX/10BASE-T
Network (Networking standards): IEEE 802.3ab/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x
Packaging content (Rack mount kit): Yes
Management features (Switch type): Unmanaged
Ports & interfaces (Basic switching RJ-45 Ethernet ports quantity): 16
Ports & interfaces (Basic switching RJ-45 Ethernet ports type): Gigabit Ethernet (10/100/1000)
Network (10G support): No
Data transmission (Forwarding rate): 23.8 Mpps
Data transmission (Switching capacity): 32 Gbit/s
Design (Rack mounting): Yes
Power (Power supply included): Yes
Power over Ethernet (PoE) (Power over Ethernet (PoE)): No
Network (Flow control support): Yes
Ports & interfaces (Power connector): AC-in jack
Network (Cable types supported): Cat3/Cat4/Cat5/Cat5e
Data transmission (MAC address table): 8000 entries
Network (Auto MDI/MDI-X): Yes
Network (Full duplex): Yes
Data transmission (Jumbo frames): 10000
Data transmission (Jumbo frames support): Yes
Network (Auto-negotiation): Yes
Network (Half duplex): Yes
Data transmission (Store-and-forward): Yes
Operational conditions (Heat dissipation): 35.6 BTU/h
Performance (Fanless): Yes
Management features (Quality of Service (QoS) support): Yes
Ports & interfaces (Gigabit Ethernet (copper) ports quantity): 16
Performance (Maximum cable length): 100 m
