Type Managed, 4xBasic switching RJ-45 Ethernet ports quantity, Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000), Console port RJ-45, Switching capacity 16 Gbit/s, Throughput 11.9 Mpps, Password protection Yes, Product colour Black, Power over Ethernet (PoE) Yes, 4xPower over Ethernet (PoE) ports quantity, Power over Ethernet (PoE) power per port 60 W, Total Power over Ethernet (PoE) budget 240 W, Width 62 mm, Depth 130 mm, Height 135 mm, Weight 600 g
AXIS T8504-R Industrial PoE Switch is a 4-port managed industrial PoE Gigabit switch. In addition, the switch is equipped with two RJ45 and two SFP data ports that allows for extra devices to be connected. The switch uses the same intuitive administrator interface as AXIS T85 PoE Network Switch Series. The ruggedized switch is perfect for challenging environments when mounted inside a surveillance cabinet. It is designed to withstand shock, vibrations and temperatures from -40 °C to 75 °C (-40 °F to 167 °F), making it perfect for high demanding installations such as alongside highways and tunnels.
60 W per port, 240 W power budget; Compliant with High PoE 60 W; Dual DC power redundancy; High availability with Rapid Ring; NEMA TS-2 compliant
Operational conditions (Operating temperature (T-T))
-40 - 75 C
Operational conditions (Storage temperature (T-T))
-40 - 85 C
Design (Product colour)
Black
Design (Housing material)
Aluminium
Certificates (Certification)
EN 55032, EN 55024, FCC, ICES-003, VCCI, RCM AS/NZS CISPR 32, EN 50121-4, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, EN 61000-6-4 IEC 62236-4, IEC/EN/UL 60950-1, IEC 60068-2-6, IEC 60068-2-27, 60068-2-31, NEMA TS-2-2003
MS105G, Type Unmanaged, 5xBasic switching RJ-45 Ethernet ports quantity, Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000), Half duplex Yes, Full duplex Yes, Product colour Black, Power source DC, Power supply included Yes, Width 105 mm, Depth 70 mm, Height 24.9 mm
Type Unmanaged, Quality of Service (QoS) support Yes, 16xBasic switching RJ-45 Ethernet ports quantity, Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000), Full duplex Yes, Switching capacity 32 Gbit/s, Forwarding rate 23.8 Mpps, Product colour Black, Power source DC, Power supply included Yes, Width 286 mm, Depth 111.7...

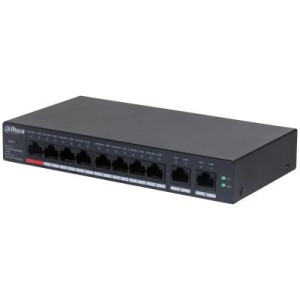

TSW040000000, Type Unmanaged, 8xBasic switching RJ-45 Ethernet ports quantity, Basic switching RJ-45 Ethernet ports type Fast Ethernet (10/100), Switching capacity 20 Gbit/s, Product colour Black, Power source DC, Power over Ethernet (PoE) Yes, 8xPower over Ethernet (PoE) ports quantity, Power over Ethernet (PoE) power per port 30 W, Total Power...
Type Unmanaged, Quality of Service (QoS) support Yes, 5xBasic switching RJ-45 Ethernet ports quantity, Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000), Full duplex Yes, Switching capacity 10 Gbit/s, Forwarding rate 7.4 Mpps, Product colour Black, Power source DC, Power supply included Yes, Width 100 mm, Depth 98 mm,...
Type Managed, 4xBasic switching RJ-45 Ethernet ports quantity, Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000), Console port RJ-45, Switching capacity 16 Gbit/s, Throughput 11.9 Mpps, Password protection Yes, Product colour Black, Power over Ethernet (PoE) Yes, 4xPower over Ethernet (PoE) ports quantity, Power over Ethernet (PoE) power per port 60 W, Total Power over Ethernet (PoE) budget 240 W, Width 62 mm, Depth 130 mm, Height 135 mm, Weight 600 g
