| Standard: |
IP |
| Resolution: |
Camera PT, Camera 2 : 2880 x 1620 - 5 Mpx |
| Sensor: |
Camera PT, Camera 2 : 1/3 " Progressive Scan CMOS |
| Lens: |
Camera PT, Camera 2 : 3.6 mm |
| View angle: |
Camera PT, Camera 2 : 79 ° |
| Optical zoom: |
 |
| Digital zoom: |
|
| Range of IR illumination: |
30 m @ Camera PT, Camera 2 |
| White light LED illuminator range: |
30 m @ Camera PT |
| Horizontal rotation range: |
Camera PT : 0 ° ... 349 ° - Rotation of the head is limited by stops |
| Vertical rotation range: |
Camera PT : -5 ° ... 90 ° Camera 2 : -10 ° ... 15 ° (manual adjustment) |
| RS-485 interface: |
|
| Horizontal scan: |
|
| Route settings: |
 |
| Image compression method: |
H.265 |
| Alarm inputs / outputs: |
|
| Audio: |
Microphone built-in, Speaker built-in - Alarm siren Audio detection Bi-directional audio streaming support |
| Mobile phones support: |
37777 port Android: DMSS free application iOS (iPhone): DMSS free application |
| Main stream frame rate: |
Camera PT, Camera 2 : 15 fps @ 5 Mpx |
| Network interface: |
Wi-Fi 6, IEEE 802.11 b/g/n/ac/ax 10/100 Base-T (RJ-45) Fast pairing with Bluetooth |
| Memory card slot: |
Micro SD card support up to 256GB |
| WEB Server: |
|
| Max. number of on-line users: |
20 |
| ONVIF: |
|
| Default IP address: |
192.168.1.108 |
| Default admin user / password: |
admin / -
The administrator password should be set at the first start |
| Web browser access ports: |
|
| PC client access ports: |
37777 |
| Mobile client access ports: |
37777 |
| ONVIF port: |
|
| RTSP URL: |
rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0 - Main stream
rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=1 - Sub stream |
| Intelligent Image Analysis: |
Human detection Smart motion detection (distinguishing between people and animals) |
| Main features: |
Intelligent Object Tracking Built-in Wi-Fi module Active deterrence function - Light and sound alarm - Active intrusion deterrence works by blinking white light and siren sound D-WDR - Wide Dynamic Range Image rotation and mirror ICR - Movable InfraRed filter Day/night mode Auto White Balance AGC - Automatic Gain Control Sharpness - sharper image outlines Configurable: brightness, contrast, saturation Motion Detection |
| Housing: |
Mini Speed Dome, Plastic |
| Color: |
White + Black |
| "Index of Protection": |
|
| IK rating: |
|
| Power supply: |

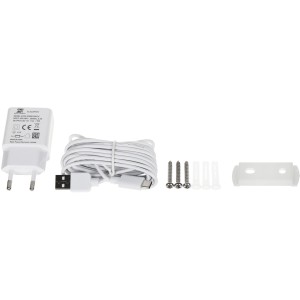

5 V DC / 1 A (power adapter included) |
| Power consumption: |
≤ 2.5 W (typical), 5.4 W (max) |
| Operation temp: |
-10 °C ... 45 °C |
| Weight: |
0.23 kg (with bracket) |
| Dimensions: |
81 x 126 mm (with bracket) |
| Supported languages: |
English |
| Manufacturer / Brand: |
DAHUA |
| Guarantee: |
3 years |
