| Standard: |
TCP/IP |
| Sensor: |
1/2.8 " Progressive Scan CMOS |
| Matrix size: |
5 Mpx |
| Resolution: |
2592 x 1944 - 5 Mpx ,
2560 x 1440 3.7 Mpx ,
1920 x 1080 - 1080p ,
1280 x 720 - 720p |
| Lens: |
5.35 ... 96.3 mm |
| View angle: |
59 ° ... 3.6 ° (manufacturer data) 50 ° ... 3.8 ° (our tests result) |
| Optical zoom: |
x 18 |
| Auto IR illuminator: |
Adaptive adjusting of the IR illuminator power to the lens zoom and outdoor light conditions |
| Range of IR illumination: |
80 m |
| Video output: |
 |
| Rotation speed (manual control): |
1 °/s ... 120 °/s (horizontal) ,
1 °/s ... 30 °/s (vertical) |
| Horizontal rotation range: |
360 ° continuous |
| Vertical rotation range: |
0 ° ... 93 ° |
| RS-485 interface: |
|
| Number of presets: |
255 |
| Horizontal scan: |
 |
| Image compression method: |
H.265 / H.264 |
| Protections: |
Overvoltage |
| Audio: |
Microphone built-in Speaker built-in Bi-directional audio streaming support Voice prompts in English or Chinese |
| Alarm inputs / outputs: |
|
| Memory card slot: |
|
| Network interface: |
10/100 Base-T (RJ-45) |
| Network protocols: |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, SMTP |
| Main stream frame rate: |
20 fps @ 5 Mpx
25 fps @ 4 Mpx |
| WEB Server: |
Built-in |
| ONVIF: |
|
| Mobile phones support: |
Port no.: 80 or access by a cloud (P2P) Android: BitVision free application iOS (iPhone): BitVision free application |
| Default IP address: |
192.168.1.168 |
| Default admin user / password: |
admin / admin
The administrator password should be set at the first start |
| Web browser access ports: |
80 |
| ONVIF port: |
8999 |
| RTSP URL: |
rtsp://ip_address/1/h264major - Main stream
rtsp://ip_address/1/h264minor - Sub stream |
| Route settings: |
8 |
| OSD menu: |
preset 95 |
| Main features: |
Intelligent Image Analysis : intrusion Local recording : Motion Detection, Schedule, continuous WDR - Wide Dynamic Range ROI - improve the quality of selected parts of image Parking action - this function enables to locate the camera to specific position automatically if operator doesn't operate the controller for some time ICR - Movable InfraRed filter BLC - configurable Back Light Compensation Auto White Balance AGC - Automatic Gain Control IR illuminator optimization Mirror - Mirror image Motion Detection - Split the screen into zones 16 x 12 |
| Power supply: |

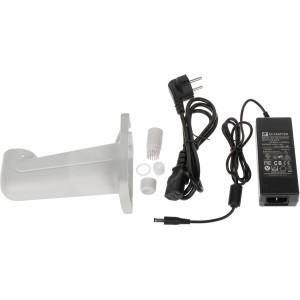

PoE (802.3at) 12 V DC / 3 A (power adapter included) |
| Housing: |
Speed Dome, Metal |
| Color: |
White + Black |
| "Index of Protection": |
IP66 |
| Operation temp: |
-40 °C ... 60 °C |
| Weight: |
1.51 kg (with bracket) |

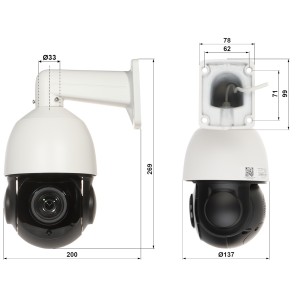

| Dimensions: |
200 x 269 x 137 mm (with bracket) |
| Supported languages: |
Polish, English, Czech, French, Greek, Spanish, Dutch, German, Portuguese, Russian, Turkish, Italian |
| Manufacturer / Brand: |
OMEGA |
| Guarantee: |
2 years |
