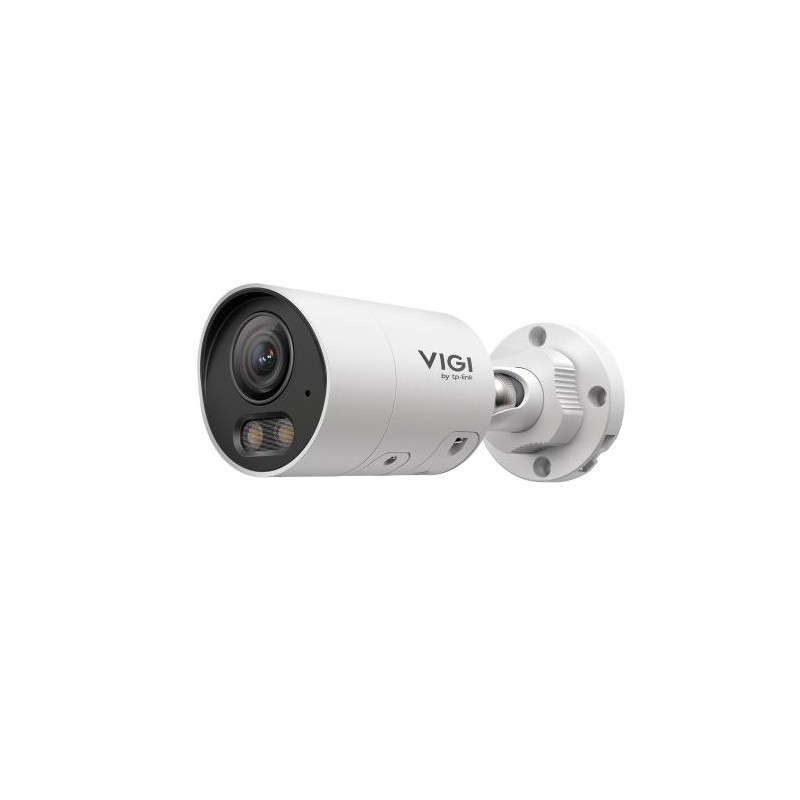

IP-kamera BULLET H.265+ 4MP INSIGHT S345S(4MM) TP-LINK

Lisätiedot

Vendor Homepage

https://www.tp-link.com/pt/business-networking/vigi-network-camera/insight-s345s/

Garantija

36

Model

InSight S345S

Category Code

FNC

Unit Box Height

0.101

Unit Box Length

0.225

Unit Box Width

0.126

Units per Shipping Box

1

Unit Calculated Volume

0.002863 cubm

Unit Calculated Weight

0.87 kg

Summary

TP-Link InSight S345S. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/Wall/Pole, Product colour: White, Form factor: Bullet. Minimum illumination: 0.0005 lx, Angle of rotation: 360 , Lens vie

Weight & dimensions (Weight)

600 g

Operational conditions (Operating temperature (T-T))

-30 - 60 C

Operational conditions (Storage relative humidity (H-H))

0 - 95 %

Operational conditions (Storage temperature (T-T))

-40 - 60 C

Weight & dimensions (Diameter)

66 mm

Network (Bluetooth)

No

Network (Ethernet LAN)

Yes

Network (Wi-Fi)

No

Design (Product colour)

White

Ports & interfaces (Ethernet LAN (RJ-45) ports)

1

Design (Housing material)

Metal

Packaging content (Manual)

Yes

Operational conditions (Operating relative humidity (H-H))

0 - 95 %

Design (Form factor)

Bullet

Weight & dimensions (Length)

191 mm

Packaging content (Mounting kit)

Yes

Camera (Camera shutter speed)

1/3 - 1/10000 s

Audio (Audio system)

2-way

Storage (Compatible memory cards)

MicroSD (TransFlash)

Storage (Maximum memory card size)

512 GB

Power (Power source type)

DC,PoE

Sustainability (Compliance certificates)

BSMI/CE/Federal Communications Commission (FCC)/Industry Canada (IC)/KC/VCCI

Storage (Card reader integrated)

Yes

Performance (Wide Dynamic Range (WDR))

Yes

Audio (Built-in speaker(s))

Yes

Audio (Built-in microphone)

Yes

Security (Password protection)

Yes

Network (Ethernet interface type)

Fast Ethernet

Design (International Protection (IP) code)

IP67

Design (Mounting type)

Ceiling/Wall/Pole

Performance (Connectivity technology)

Wired

Performance (Infrared (IR) cut-off filter)

Yes

Performance (Placement supported)

Outdoor

Performance (Type)

IP security camera

Camera (Lens viewing angle, diagonal)

115

Camera (Lens viewing angle, horizontal)

95

Camera (Lens viewing angle, vertical)

51

Image sensor (Optical sensor size)

1/1.79 "

Lens system (Number of lenses)

1

Night vision (LED type)

IR/White

Night vision (Night vision)

Yes

Night vision (Night vision distance)

30 m

Video (Maximum resolution)

2688 x 1520 pixels

Video (Noise reduction)

Yes

Video (Noise reduction technology)

3D noise reduction

Video (Total megapixels)

4 MP

Storage (Built-in HDD)

No

Security (Intelligent Video Surveillance (IVS) system features)

Abandoned object/Abnormal sound detection/Human detection/Intrusion/Line crossing detection/Region entrance detection/Region exiting detection/Scene change/Vehicle detection

Power (DC output voltage)

12

Packaging content (Number of cameras)

1

Image sensor (Sensor type)

CMOS

Security (Alarm input channels)

1

Security (Alarm output channels)

1

Lens system (Fixed focal length)

4 mm

Performance (Alarm input/output)

Yes

Camera (Minimum illumination)

0.0005 lx

Video (Back Light Compensation (BLC))

Yes

Video (Highlight Compensation (HLC))

Yes

Image sensor (Progressive scan)

Yes

Lens system (Maximum aperture number)

1

Video (Region of Interest (ROI) encoding)

Yes

Security (Video motion detection)

Yes

Video (Video compression formats)

H.264/H.264+/H.265/H.265+

Camera (Angle of rotation)

360

Camera (Pan range)

0 - 360

Camera (Tilt angle range)

0 - 75

Video (Bit rate control)

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Video (Supported graphics resolutions)

1280 x 720 (HD 720)/1920 x 1080 (HD 1080)/2048 x 1280/2304 x 1296/2560 x 1440/2688 x 1520/320 x 240/352 x 288/640 x 360/640 x 480 (VGA)/704 x 576/848 x 480

Video (Video streaming)

Yes

Audio (Signal-to-Noise Ratio (SNR))

52 dB

Network (Supported network protocols)

TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP, SMTP, SNMP, RTMP

Security (Active tampering alarm)

Yes

Management features (Web browser)

Yes

Video (Smart IR)

Yes

Night vision (Number of illumination LEDs)

2

Security (HTTPS encryption)

Yes

Performance (Dynamic range)

120 dB

Lens system (Detect distance)

76 m

Lens system (Identify distance)

7 m

Lens system (Observe distance)

29 m

Lens system (Recognize distance)

14 m

Video (Bit rate)

Main Stream: 256 Kbps - 6 Mbps Sub-Stream: 64 Kbps - 1024 Kbps

Night vision (Infra-red wavelength)

850 nm

Security (IP address filtering)

Yes

Security (Digest authentication)

Yes

Management features (Cloud-managed)

Yes

Tilausviitteet

EAN13

8885020625608

Valmistajan tuotenumero (MPN)

1451221
