Kuvaus

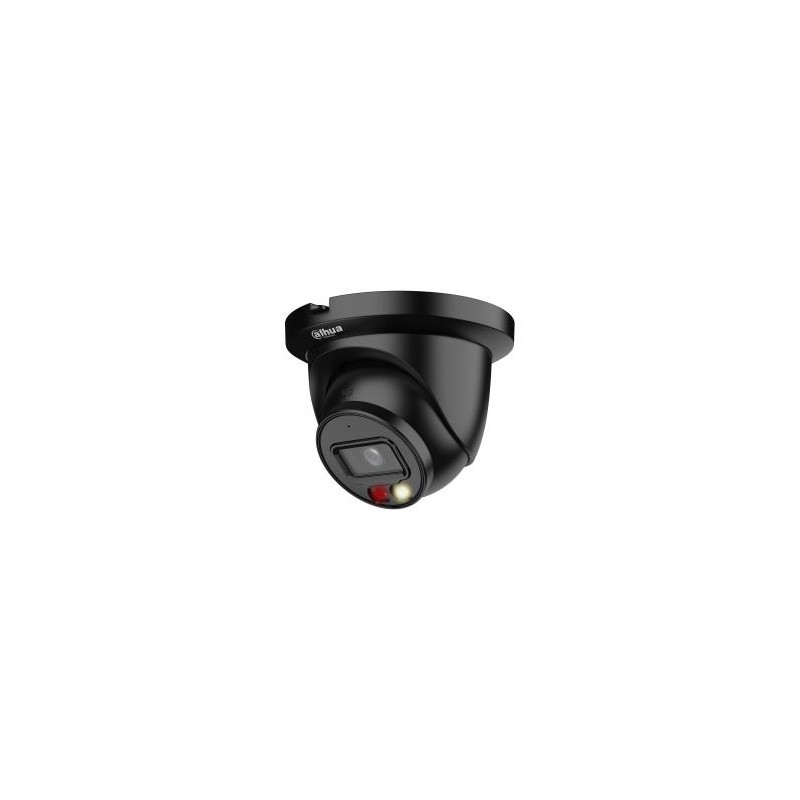

8MP Smart Dual Light Fixed-focal Eyeball WizSense Network Camera
8-MP 1/2.7" CMOS image sensor, low luminance, and high definition image Outputs max. 8 MP (3840 × 2160) @20 fps, and supports 2688 × 1520 (2688 × 1520) @25/30 fps H.265 codec, high compression rate, ultra-low bit rate Built-in warm light and IR LED, the max. illumination distance is 30 m and the max. warm light distance is 30 m ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human) Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection Supports max. 256 G Micro SD card; built in MIC 12 VDC/PoE power supply, easy for installation IP67 protection SMD Plus
Tuotetiedot
Viite
HDW2849TM-S-IL-0280B-B
Varastossa
50 Tuotteet
Lisätiedot
Vendor Homepage
https://www.dahuasecurity.com/ceen/products/All-Products/Network-Cameras/WizSense-Series/2-Series/Smart-Dual-Light/IPC-HDW2849TM-S-IL
Garantija
36
Model
DHI-IPC-HDW2849TM-S-IL-0280B-B
Category Code
FNC
Unit Box Height
0.14
Unit Box Length
0.14
Unit Box Width
0.115
Units per Shipping Box
1
Unit Calculated Volume
0.002254 cubm
Unit Calculated Weight
0.651 kg
Summary
Dahua Technology WizSense HDW2849TM-S-IL. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/Wall/Pole, Product colour: Black, Form factor: Dome. Angle of rotation: 360 , Tilt angle range: 0 - 78
Weight & dimensions (Width)
99.1 mm
Weight & dimensions (Weight)
480 g
Packaging data (Package weight)
620 g
Performance (Certification)
CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14
Operational conditions (Operating temperature (T-T))
-40 - 55 C
Operational conditions (Storage temperature (T-T))
-40 - 60 C
System requirements (Mobile operating systems supported)
Android/iOS
Weight & dimensions (Diameter)
121.9 mm
Network (Ethernet LAN)
Yes
Design (Product colour)
Black
Power (Power consumption (typical))
2.6 W
Ports & interfaces (Ethernet LAN (RJ-45) ports)
1
Operational conditions (Operating relative humidity (H-H))
0 - 95 %
Design (Form factor)
Dome
Camera (Camera shutter speed)
1/3 -1/100000 s
Power (Power source type)
DC,PoC
Performance (Wide Dynamic Range (WDR))
Yes
Design (Protection features)
Dust resistant
Network (Ethernet interface type)
Fast Ethernet
Design (International Protection (IP) code)
IP67
Design (Mounting type)
Ceiling/Wall/Pole
Performance (Connectivity technology)
Wired
Performance (Day/night mode)
Yes
Performance (Infrared (IR) cut-off filter)
Yes
Performance (Placement supported)
Outdoor
Performance (Type)
IP security camera
Image sensor (Optical sensor size)
1/2.7 "
Lens system (Number of lenses)
2.8
Night vision (LED type)
IR
Night vision (Night vision)
Yes
Night vision (Night vision distance)
30 m
Video (Maximum resolution)
3840 x 2160 pixels
Video (Privacy masking)
Yes
Video (Total megapixels)
8 MP
Security (Intelligent Video Surveillance (IVS) system features)
Intrusion/Tripwire
Power (DC output voltage)
12
Packaging content (Number of cameras)
1
Image sensor (Sensor type)
CMOS
Video (Back Light Compensation (BLC))
Yes
Video (Highlight Compensation (HLC))
Yes
Image sensor (Progressive scan)
Yes
Video (Flip & mirror)
Yes
Video (Gain control type)
Auto/Manual
Camera (Camera shutter type)
Electronic
Video (Region of Interest (ROI) encoding)
Yes
Security (Video motion detection)
Yes
Performance (Built-in light)
Yes
Video (Video compression formats)
H.264/H.264+/H.264B/H.264H/H.265/H.265+/M-JPEG
Image sensor (Number of sensors)
1
Camera (Angle of rotation)
360
Camera (Pan range)
0 - 360
Camera (Tilt angle range)
0 - 78
Camera (White balance)
Auto/Manual/Natural/Outdoor/Regional custom/Street lamp
Video (Bit rate control)
Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Video (Supported graphics resolutions)
1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2048 x 1536 (QXGA)/2304 x 1296/2688 x 1520/2880 x 1620/3072 x 1728/3072 x 2048/352 x 240/352 x 288/3840 x 2160/640 x 480 (VGA)/704 x 480/704 x 576
Video (Video streaming)
Yes
Audio (Audio formats supported)
G.711 -law/G.711 A-law/G.726/PCM
Audio (Signal-to-Noise Ratio (SNR))
56 dB
Network (Quality of Service (QoS) support)
Yes
Network (Streaming method)
Multicast
Network (Supported network protocols)
IPv4 IPv6 HTTP TCP UDP ARP RTP RTSP RTCP RTMP SMTP FTP SFTP DHCP DNS DDNS QoS UPnP NTP Multicast ICMP IGMP NFS PPPoE Boujour
Storage (Internal memory)
256 MB
Storage (ROM capacity)
128 MB
Security (Active tampering alarm)
Yes
Management features (Management software)
Smart PSS DSS DMSS
Management features (Web browser)
Yes
Network (Number of users)
20 user(s)
Lens system (Minimum aperture number)
1.6
Tilausviitteet
EAN13
6923172578655
Valmistajan tuotenumero (MPN)
1413075
