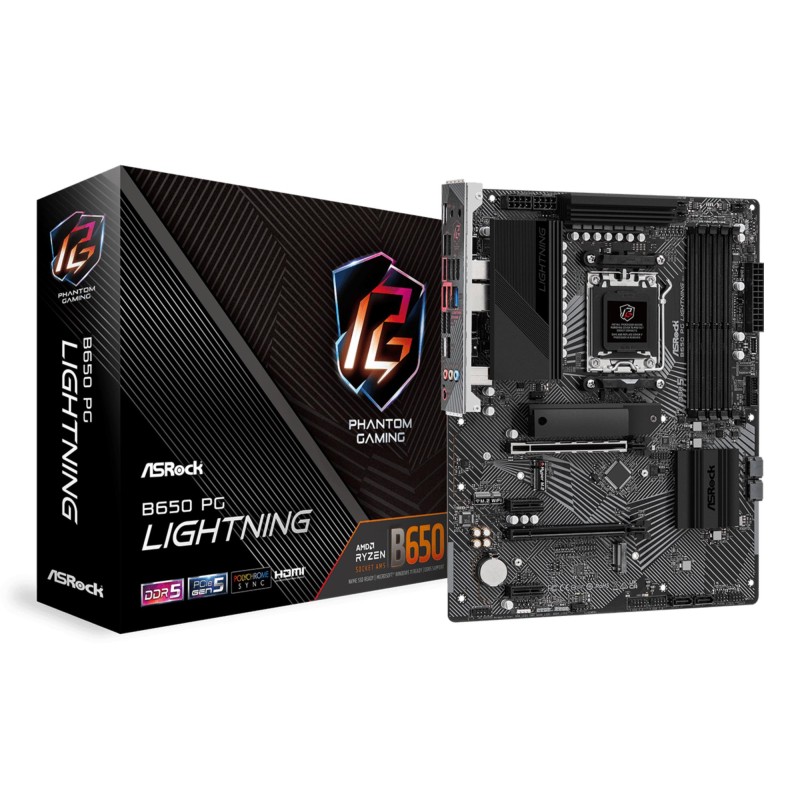

Mainboard|ASROCK|AMD B650|SAM5|ATX|Memory DDR5|Memory slots 4|2xPCI-Express 4.0 1x|2xPCI-Express 4.0 16x|3xM.2|1xHDMI|1xAudio-In

Lisätiedot

Vendor Homepage

https://www.asrock.com/mb/AMD/B650%20PG%20Lightning/index.asp

Garantija

36

Model

B650 PG Lightning

Category Code

MBA

Unit Box Height

0.08

Unit Box Length

0.36

Unit Box Width

0.3

Units per Shipping Box

1

Unit Calculated Volume

0.00864 cubm

Unit Calculated Weight

1.71 kg

Summary

Asrock B650 PG Lightning. Processor manufacturer: AMD, Processor socket: Socket AM5. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA II, Supported storage drive ty

Weight & dimensions (Width)

305 mm

Weight & dimensions (Depth)

244 mm

Packaging content (Cables included)

SATA

Network (Bluetooth)

Yes

Network (Ethernet LAN)

Yes

Network (Wi-Fi)

Yes

Processor (Processor manufacturer)

AMD

Graphics (Graphics card family)

AMD

Network (Top Wi-Fi standard)

Wi-Fi 6E (802.11ax)

Features (Component for)

PC

Graphics (Graphics card)

AMD RDNA 2

Memory (Maximum internal memory)

128 GB

Memory (Memory channels)

Dual-channel

Graphics (On-board graphics card)

Yes

Network (LAN controller)

Dragon RTL8125BG

Expansion slots (PCI Express x16 (Gen 5.x) slots)

1

Processor (Processor socket)

Socket AM5

Memory (Memory slots type)

DIMM

Memory (Number of memory slots)

4

Memory (Supported memory clock speeds)

6400/6600/6666/6800 MHz

Memory (Supported memory types)

DDR5-SDRAM

Memory (Unbuffered memory)

Yes

Storage controllers (Supported storage drive interfaces)

M.2,SATA II

Storage controllers (Supported storage drive types)

HDD & SSD

Internal I/O (ATX Power connector (24-pin))

Yes

Internal I/O (CPU fan connector)

Yes

Internal I/O (EPS power connector (8-pin))

Yes

Internal I/O (Front panel audio connector)

Yes

Internal I/O (Number of SATA III connectors)

4

Internal I/O (RGB LED pin header)

Yes

Internal I/O (TPM connector)

Yes

Internal I/O (USB 2.0 connectors)

2

Internal I/O (USB 3.2 Gen 1 (3.1 Gen 1) connectors)

1

Rear panel I/O ports (Ethernet LAN (RJ-45) ports)

1

Rear panel I/O ports (HDMI ports quantity)

1

Rear panel I/O ports (Line-in)

Yes

Rear panel I/O ports (USB 2.0 ports quantity)

4

Network (Ethernet interface type)

2.5 Gigabit Ethernet

Features (Audio output channels)

7.1 channels

Features (Motherboard chipset)

AMD B650

Features (Motherboard chipset family)

AMD

Features (Motherboard form factor)

ATX

Features (Windows operating systems supported)

Windows 10 x64/Windows 11 x64

Expansion slots (PCI Express x16 (Gen 4.x) slots)

1

BIOS (BIOS memory size)

256 Mbit

BIOS (BIOS type)

UEFI AMI

Storage controllers (RAID levels)

0/1/10

Storage controllers (RAID support)

Yes

Internal I/O (USB 3.2 Gen 2 (3.1 Gen 2) connectors)

1

Rear panel I/O ports (USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity)

7

Memory (ECC сompatibility)

ECC & Non-ECC

Graphics (HDCP)

Yes

Expansion slots (PCI Express x16 (Gen 3.x) slots)

1

Rear panel I/O ports (USB 3.2 Gen 2x2 Type-C ports quantity)

1

Tilausviitteet

EAN13

4710483940910

Valmistajan tuotenumero (MPN)

1386732
