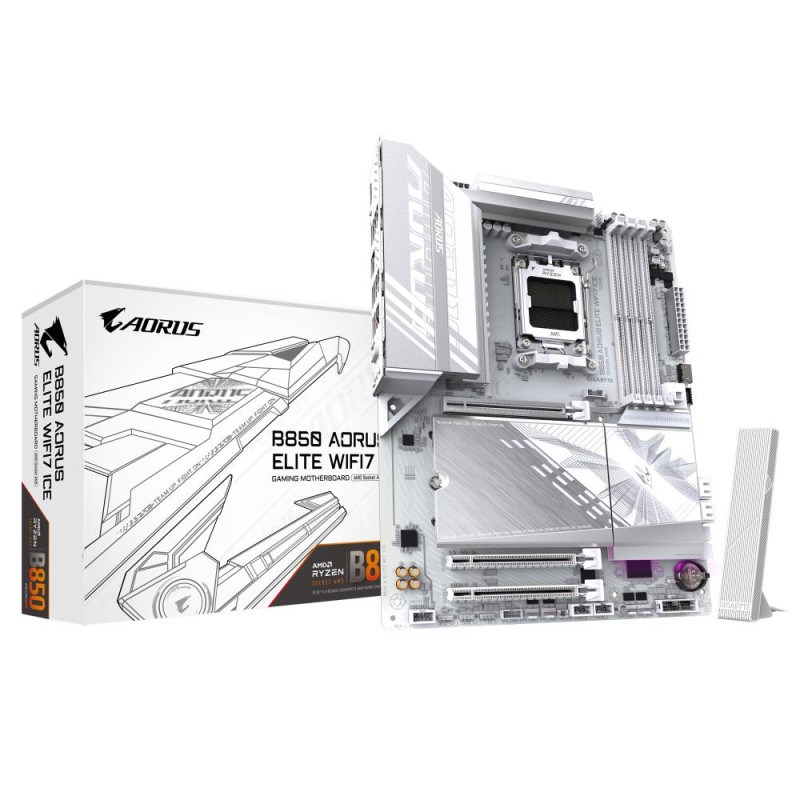

Mainboard|GIGABYTE|AMD B850|SAM5|ATX|Memory DDR5|B850AELITEWF7ICE1.1

Lisätiedot

Vendor Homepage

www.gigabyte.com/Motherboard/B850-AORUS-ELITE-WIFI7-ICE-rev-1x

Form Factor

ATX

Socket

SAM5

Input/Output connectors (USB 2.0)

4

Interface (SATA)

Yes

Memory type

DDR5

Frequency speed

4400/4800/5200/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600/7800/7900/7950/8000/8200 MHz

Interface (USB 2.0)

Yes

Input/Output connectors (RJ45)

1

Integrated LAN

2.5 Gigabit

Input/Output connectors (Optical S/PDIF)

1

Interface (Bluetooth)

Yes

Interface (WiFi)

Yes

Chipset

AMD B850

Integrated audio

Realtek ALC1220

Integrated video

Depending on CPU

RAID

SATA 0, 1, 10 NVMe 0, 1, 5, 10

TPM

Header

Expansion slots (PCI-Express 3.0 1x)

2

Expansion slots (M.2)

3

Input/Output connectors (DisplayPort)

1

Input/Output connectors (Audio port)

2

Interface (USB-C)

Yes

Garantija

36

Input/Output connectors (USB 3.2)

5

Interface (USB 3.2)

Yes

Model

B850 AORUS ELITE WIFI7 ICE

Category Code

MBA

Expansion slots (PCI-Express 5.0 16x)

1

Expansion slots (PCI-Express 4.0 4x)

1

Expansion slots (PCI-Express 4.0 8x)

1

Unit Box Height

0.081

Unit Box Length

0.34

Unit Box Width

0.27

Input/Output connectors (USB-C)

1

Units per Shipping Box

6

Unit Calculated Volume

0.01043 cubm

Product Net Weight

0.8 kg

Unit Calculated Weight

2.52 kg

Tilausviitteet

EAN13

4719331866099

Valmistajan tuotenumero (MPN)

B850 A ELITE WF7 ICE 1.1
