Mainboard|ASROCK|AMD B650|SAM5|Micro-ATX|Memory DDR5|Memory slots 2|1xPCI-Express 4.0 1x|2xPCI-Express 4.0 16x|1xM.2|1xHDMI|1xDi
  • Mainboard|ASROCK|AMD B650|SAM5|Micro-ATX|Memory DDR5|Memory slots 2|1xPCI-Express 4.0 1x|2xPCI-Express 4.0 16x|1xM.2|1xHDMI|1xDi

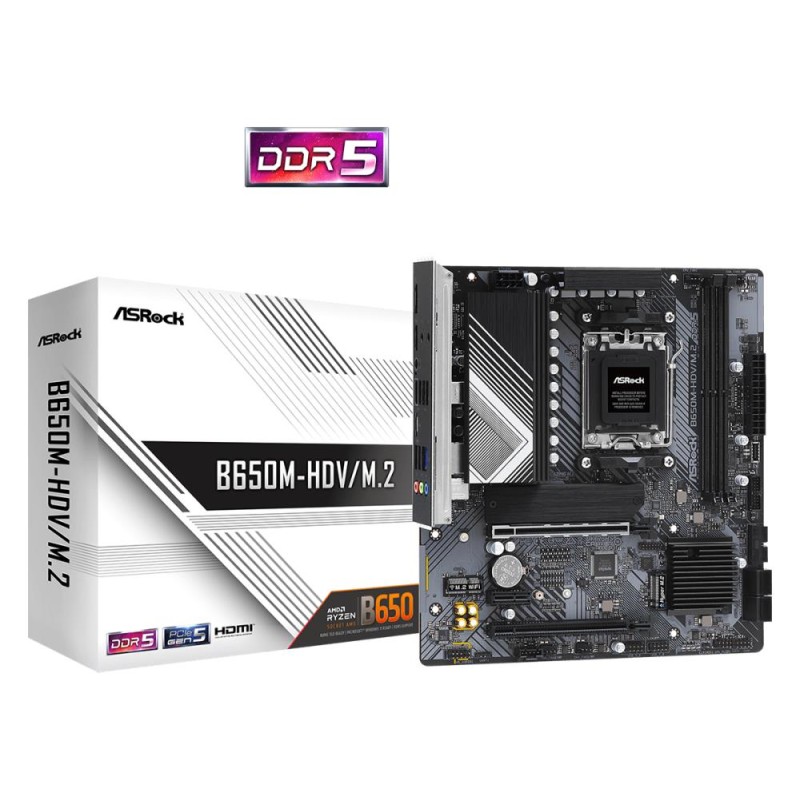

Mainboard|ASROCK|AMD B650|SAM5|Micro-ATX|Memory DDR5|Memory slots 2|1xPCI-Express 4.0 1x|2xPCI-Express 4.0 16x|1xM.2|1xHDMI|1xDi

1393840
ASROCK
AMD B650 | SAM5 | Micro-ATX | DDR5 | 6400 MHz | Memory slots 2 | Video Depending on CPU | Audio Realtek ALC897 | LAN 2.5 Gigabit | RAID SATA 0, 1, 10; NVMe 0, 1, 10 | TPM Header
106,39 €
Sisältää alv:n
Määrä
Laos
30 Tuotteet

Kuvaus

  • Supports AMD Socket AM5 Ryzen™ 7000 Series Processors
  • 8+2+1 Power Phase, Dr.MOS
  • Supports DDR5 6400+ MHz (OC)
  • 2 PCIe 4.0 x16, 1 PCIe 4.0 x1, 1 M.2 Key E for WiFi
  • Integrated AMD RDNA™ 2 Graphics*
  • Graphics Output Options: HDMI, DisplayPort
  • Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
  • 4 SATA3, 1 Blazing M.2 (PCIe Gen5x4), 1 Hyper M.2 (PCIe Gen4x4)
  • 1 USB 3.2 Gen2 Front Type-C, 7 USB 3.2 Gen1 (2 Rear, 1 Rear Type-C, 4 Front)
  • Dragon 2.5G LAN
  • Supports ASRock Auto Driver Installer, BIOS Flashback
  • Pre-Installed I/O Shield
Tuotetiedot
ASROCK
1393840
30 Tuotteet

Lisätiedot

Vendor Homepage
www.asrock.com/mb/AMD/B650M-HDVM.2/index.asp
Included Accessories
- 1 x User Manual - 2 x SATA Data Cables - 2 x Screws for M.2 Sockets
Form Factor
Micro-ATX
Socket
SAM5
Input/Output connectors (USB 2.0)
4
Interface (SATA)
Yes
Memory type
DDR5
Frequency speed
6400 MHz
Input/Output connectors (RJ45)
1
Input/Output connectors (HDMI)
1
Integrated LAN
2.5 Gigabit
Input/Output connectors (Audio-In)
1
Chipset
AMD B650
Integrated audio
Realtek ALC897
Integrated video
Depending on CPU
Memory slots
2
Input/Output connectors (Audio-Out)
1
Input/Output connectors (Microphone)
1
RAID
SATA 0, 1, 10 NVMe 0, 1, 10
TPM
Header
Expansion slots (M.2)
1
Input/Output connectors (DisplayPort)
1
Garantija
36
Input/Output connectors (USB 3.2)
2
Expansion slots (PCI-Express 4.0 16x)
2
Expansion slots (PCI-Express 4.0 1x)
1
Model
B650M-HDV/M.2
Category Code
MBA
Unit Box Height
0.062
Unit Box Length
0.28
Unit Box Width
0.26
Input/Output connectors (USB-C)
1
Units per Shipping Box
1
Unit Calculated Volume
0.004514 cubm
Product Net Weight
1.1 kg
Unit Calculated Weight
1.21 kg

Tilausviitteet

EAN13
4710483942693
Valmistajan tuotenumero (MPN)
B650M-HDV/M.2
