Kirjeldus

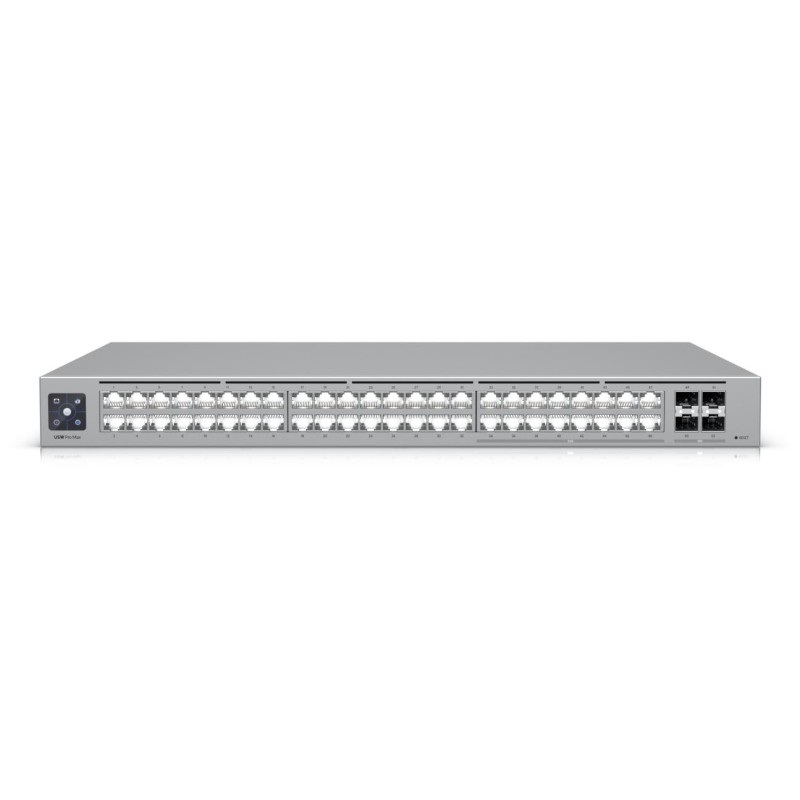

A 48-port, Layer 3 Etherlighting™ switch with 2.5 GbE.
(16) 2.5 GbE RJ45 ports (32) GbE RJ45 ports (4) 10G SFP+ ports DC power backup ready Managed with UniFi Network 8.0.24 and later
Üldine informatsioon
Tootekood
USW-PRO-MAX-48
Tarneaeg 2-5 tööpäeva.
15 Tooted
Lisainfo
Müüja koduleht
https://eu.store.ui.com/eu/en/pro/products/usw-pro-max-48
Mudeli nimi
Pro Max 48
Garantija
12
Mudel
USW-PRO-MAX-48
Category Code
SWI
Unit Box Height
0.46
Unit Box Length
0.53
Unit Box Width
0.13
Units per Shipping Box
2
Unit Calculated Volume
0.03169 cubm
Unit Calculated Weight
6.58 kg
Summary
Ubiquiti Pro Max 48. Switch layer: L3. Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500), Basic switching RJ-45 Ethernet ports quantity: 48. Switching capacity: 224 Gbit/s. Networking standards: IEEE 802.1x. Power connector: AC/DC.
Weight & dimensions (Width)
442.4 mm
Weight & dimensions (Depth)
325 mm
Weight & dimensions (Height)
43.7 mm
Weight & dimensions (Weight)
4800 g
Packaging content (Cables included)
Power
Power (Power source)
AC/DC
Certificates (Compliance certificates)
CE/Federal Communications Commission (FCC)/Industry Canada (IC)
Operational conditions (Operating temperature (T-T))
-5 - 40 C
Design (Product colour)
Grey
Power (AC input frequency)
50/60 Hz
Power (AC input voltage)
100 - 240 V
Power (Power consumption (max))
100 W
Design (Housing material)
SGCC
Operational conditions (Operating relative humidity (H-H))
10 - 90 %
Design (Form factor)
1U
Design (LED indicators)
Link/Network/Speed/Status
Design (Reset button)
Yes
Packaging data (Mounting brackets included)
Yes
Network (Networking standards)
IEEE 802.1x
Design (Display type)
LCM
Management features (Switch layer)
L3
Ports & interfaces (Basic switching RJ-45 Ethernet ports quantity)
48
Ports & interfaces (Basic switching RJ-45 Ethernet ports type)
2.5G Ethernet (100/1000/2500)
Network (10G support)
Yes
Data transmission (Forwarding rate)
166.656 Mpps
Data transmission (Switching capacity)
224 Gbit/s
Data transmission (Throughput)
112 Gbit/s
Design (Rack mounting)
Yes
Power (Power supply included)
Yes
Power over Ethernet (PoE) (Power over Ethernet (PoE))
No
Ports & interfaces (SFP+ module slots quantity)
4
Network (Broadcast storm control)
Yes
Network (Flow control support)
Yes
Network (Port mirroring)
Yes
Network (VLAN support)
Yes
Ports & interfaces (Power connector)
AC/DC
Data transmission (Static route)
Yes
Security (DHCP features)
DHCP relay/DHCP snooping
Data transmission (Jumbo frames support)
Yes
Design (Stackable)
Yes
Ports & interfaces (Gigabit Ethernet (copper) ports quantity)
32
Network (Virtual LAN features)
Voice VLAN
Power (Redundant power supply (RPS) support)
Yes
Security (Loop protection)
Yes
Ports & interfaces (2.5G Ethernet (copper) ports quantity)
16
Network (Rate limiting)
Yes
Security (IGMP snooping)
Yes
Eriviited
ean13
810084692745
MPN
1413468
