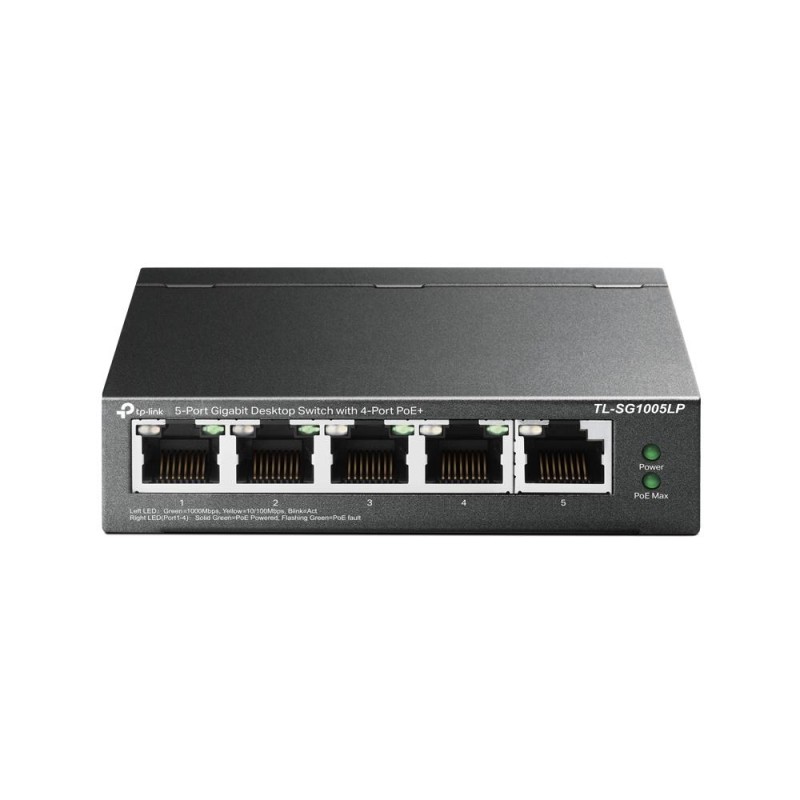

Switch|TP-LINK|Desktop/pedestal|5x10Base-T / 100Base-TX / 1000Base-T|PoE ports 1|TL-SG1005LP

Tootekood TL-SG1005LP

Kaubamärk TP-LINK

29,50 €

KM-ga

Tarneaeg 1-5 tööpäeva.

Kogus

Laos

Tarneaeg 2-5 tööpäeva. : 23 Tooted

Kirjeldus
Üldine informatsioon

Kirjeldus

Professional 5-Port Gigabit Switch with 4 PoE+ Ports
Plug and Play, with PoE power supply which meets the needs of diverse devices.

Dedicated 4-Port PoE+ Switch (40 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 40 W PoE power budget for the 4× PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.

Intelligent Power Management
When total power consumption exceeds 40 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.

Advanced Functions for Higher Performance
Administrators can designate the priority of traffic based on QoS, for example, to ensure that voice and video applications remain clear and lag-free.
IGMP Snooping optimizes multimedia traffic delivery, to ensure a better network experience especially for applications like IPTV.

Durable Metal Casing
The interior components of TL-SG1005LP are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SG1005LP delivers switching performance you can depend on.

5× 10/100/1000 Mbps RJ45 ports
With four PoE+ ports, transfers data and power on one single cable
Works with IEEE 802.3af/at compliant PDs
802.1p/DSCP QoS enable smooth latency-sensitive traffic
Supports PoE Power up to 30 W for each PoE port
Supports PoE Power up to 40 W for all PoE ports
Plug and play, no configuration and installation required

Üldine informatsioon

Kaubamärk TP-LINK

Tootekood TL-SG1005LP

Tarneaeg 2-5 tööpäeva. 23 Tooted

Lisainfo

Müüja koduleht: https://www.tp-link.com/uk/business-networking/poe-switch/tl-sg1005lp/
Garantija: 60
Mudel: TL-SG1005LP
Category Code: SWI
Unit Box Height: 0.13
Unit Box Length: 0.195
Unit Box Width: 0.12
Units per Shipping Box: 1
Unit Calculated Volume: 0.003042 cubm
Unit Calculated Weight: 0.74 kg
Summary: TP-Link TL-SG1005LP. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 2000 entries, Switching capacity: 10 Gbit/s. Networking standards:
Weight & dimensions (Width): 99.8 mm
Weight & dimensions (Depth): 98 mm
Weight & dimensions (Height): 25 mm
Packaging data (Package width): 131 mm
Packaging data (Package depth): 196 mm
Packaging data (Package height): 121 mm
Packaging data (Package weight): 730 g
Power (Power source): DC/PoE
Packaging data (Package type): Box
Logistics data (Harmonized System (HS) code): 85176990
Certificates (Compliance certificates): CE/Federal Communications Commission (FCC)/RoHS
Operational conditions (Operating temperature (T-T)): 0 - 40 C
Operational conditions (Storage relative humidity (H-H)): 5 - 90 %
Operational conditions (Storage temperature (T-T)): -40 - 70 C
Sustainability (Sustainability compliance): Yes
Design (Product colour): Black
Power (AC input frequency): 50/60 Hz
Power (AC input voltage): 100 - 240 V
Power (Power consumption (max)): 47.5 W
Certificates (Certification): FCC, CE, RoHS
Operational conditions (Operating relative humidity (H-H)): 10 - 90 %
Power (Input current): 0.81 A
Packaging content (User guide): Yes
Design (LED indicators): Yes
Network (Copper ethernet cabling technology): 1000BASE-T/100BASE-TX/10BASE-T
Network (Networking standards): IEEE 802.1p/IEEE 802.3ab/IEEE 802.3af/IEEE 802.3at/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x
Management features (Switch type): Unmanaged
Ports & interfaces (Basic switching RJ-45 Ethernet ports quantity): 5
Ports & interfaces (Basic switching RJ-45 Ethernet ports type): Gigabit Ethernet (10/100/1000)
Network (10G support): No
Data transmission (Forwarding rate): 7.44 Mpps
Data transmission (Switching capacity): 10 Gbit/s
Design (Rack mounting): No
Power (DC input voltage): 53.5 V
Power (Power supply included): Yes
Power over Ethernet (PoE) (Power over Ethernet (PoE)): Yes
Network (Flow control support): Yes
Network (Cable types supported): Cat3/Cat4/Cat5/Cat5e/Cat6
Data transmission (MAC address table): 2000 entries
Network (Auto MDI/MDI-X): Yes
Data transmission (Jumbo frames): 16000
Data transmission (Jumbo frames support): Yes
Design (Stackable): No
Design (Wall mountable): Yes
Network (Auto-negotiation): Yes
Data transmission (Store-and-forward): Yes
Operational conditions (Heat dissipation): 161.98 BTU/h
Performance (Fanless): Yes
Management features (Quality of Service (QoS) support): Yes
Ports & interfaces (Gigabit Ethernet (copper) ports quantity): 5
Power over Ethernet (PoE) (Total Power over Ethernet (PoE) budget): 40 W
Security (IGMP snooping): Yes
Power over Ethernet (PoE) (Power over Ethernet plus (PoE+) ports quantity): 4
Network (MAC address auto-aging supported): Yes
Network (MAC address auto-learning supported): Yes
Performance (Maximum cable length): 100 m
