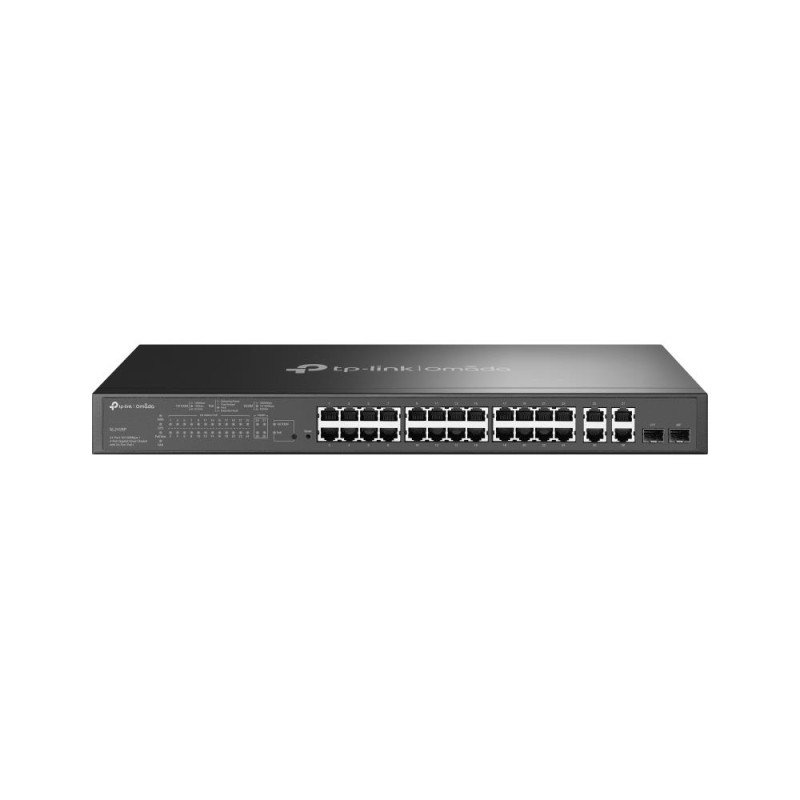

Switch|TP-LINK|SL2428P|Rack|PoE+ ports 24|250 Watts|SL2428P

Tootekood SL2428P

Kaubamärk TP-LINK

258,01 €

KM-ga

Tarneaeg 1-5 tööpäeva.

Kogus

Laos

Tarneaeg 2-5 tööpäeva. : 2 Tooted

Kirjeldus
Üldine informatsioon

Kirjeldus

TP-Link’s brand new Omada smart switches provide huge upgrade comparing with previous versions. The switches can be managed by Omada SDN Controller, which provides professional and reliable one-step solutions. Integrated L2 and L2+ features such as 802.1Q VLAN, QoS, IGMP Snooping and static routing provide cost-effective networking solutions for small and medium-sized businesses without sacrificing enhanced usability and strong performance.

24× 10/100 Mbps 802.3af/at PoE+ ports with up to 30 W PoE output per port
2× Gigabit RJ45 ports and 2× Combo Gigabit RJ45/SFP ports
250 W total PoE budget
Centralized cloud management via the web or the Omada app
Standalone management via web, CLI, SNMP, and RMON
Static Routing helps route internal traffic for higher efficiency
VLAN, ACL, QoS, and IGMP Snooping
Durable metal casing and rackmountable design

Üldine informatsioon

Kaubamärk TP-LINK

Tootekood SL2428P

Tarneaeg 2-5 tööpäeva. 2 Tooted

Lisainfo

Müüja koduleht: https://www.tp-link.com/en/business-networking/omada-switch-poe/sl2428p/ overview
Mudeli nimi: SL2428P
Garantija: 24
Category Code: SWI
Unit Box Height: 0.08
Unit Box Length: 0.535
Unit Box Width: 0.252
Units per Shipping Box: 1
Unit Calculated Volume: 0.01079 cubm
Unit Calculated Weight: 3.2 kg
Summary: TP-Link Omada SL2428P. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 24. MAC address table: 8000 entries, Switching capacity: 12.8 Gbit/s. Networki
Weight & dimensions (Width): 440 mm
Weight & dimensions (Depth): 180 mm
Weight & dimensions (Height): 44 mm
Packaging content (Quick start guide): Yes
Packaging content (Cables included): AC
Power (Power source): AC
Operational conditions (Operating temperature (T-T)): 0 - 40 C
Operational conditions (Storage relative humidity (H-H)): 5 - 90 %
Operational conditions (Storage temperature (T-T)): -40 - 70 C
Performance (Compatible operating systems): Microsoft Windows XP, Vista, Windows 7, Windows 8, MAC OS, NetWare, UNIX, Linux
Design (Product colour): Black
Power (AC input frequency): 50/60 Hz
Power (AC input voltage): 100 - 240 V
Power (Power consumption (max)): 291.6 W
Design (Number of fans): 2 fan(s)
Certificates (Certification): CE, FCC, RoHS
Operational conditions (Operating relative humidity (H-H)): 10 - 90 %
Design (Form factor): 1U
Network (Copper ethernet cabling technology): 1000BASE-T/100BASE-TX/10BASE-T
Security (Security algorithms): SNMPv2/SNMPv3/SSH/SSH-2/SSL/TLS
Management features (Web-based management): Yes
Network (Networking standards): IEEE 802.1D/IEEE 802.1p/IEEE 802.1Q/IEEE 802.1s/IEEE 802.1w/IEEE 802.3ab/IEEE 802.3ad/IEEE 802.3af/IEEE 802.3at/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x
Packaging content (Rack mount kit): Yes
Management features (Switch layer): L2
Management features (Switch type): Managed
Ports & interfaces (Basic switching RJ-45 Ethernet ports quantity): 24
Ports & interfaces (Basic switching RJ-45 Ethernet ports type): Fast Ethernet (10/100)
Network (10G support): No
Data transmission (Switching capacity): 12.8 Gbit/s
Data transmission (Throughput): 9.5 Mpps
Design (Rack mounting): Yes
Power over Ethernet (PoE) (Power over Ethernet (PoE)): Yes
Network (Broadcast storm control): Yes
Network (Flow control support): Yes
Network (Link aggregation): Yes
Network (Port mirroring): Yes
Network (Spanning tree protocol): Yes
Network (VLAN support): Yes
Ports & interfaces (Fast Ethernet (copper) ports quantity): 24
Network (Cable types supported): Cat5/Cat5e
Data transmission (MAC address table): 8000 entries
Data transmission (Packet buffer memory): 4.1 MB
Network (Auto MDI/MDI-X): Yes
Data transmission (Jumbo frames): 9000
Data transmission (Jumbo frames support): Yes
Operational conditions (Heat dissipation): 995.09 BTU/h
Management features (Quality of Service (QoS) support): Yes
Ports & interfaces (Gigabit Ethernet (copper) ports quantity): 4
Network (Number of VLANs): 512
Power over Ethernet (PoE) (Total Power over Ethernet (PoE) budget): 250 W
Network (Rate limiting): Yes
Security (IGMP snooping): Yes
Power over Ethernet (PoE) (Power over Ethernet plus (PoE+) ports quantity): 24
Management features (ARP inspection): Yes
Management features (Configuring Location Settings (CLI)): Yes
Management features (System event log): Yes
Data transmission (Number of queues): 4
Security (Access Control List (ACL)): Yes
Security (SSH/SSL support): Yes
Multicast features (Multicast support): Yes
Protocols (Management protocols): SNMP v1/v2c/v3, RMON, SNTP, TFTP
Ports & interfaces (Combo SFP ports quantity): 2
Performance (Firmware upgradeable): Yes
