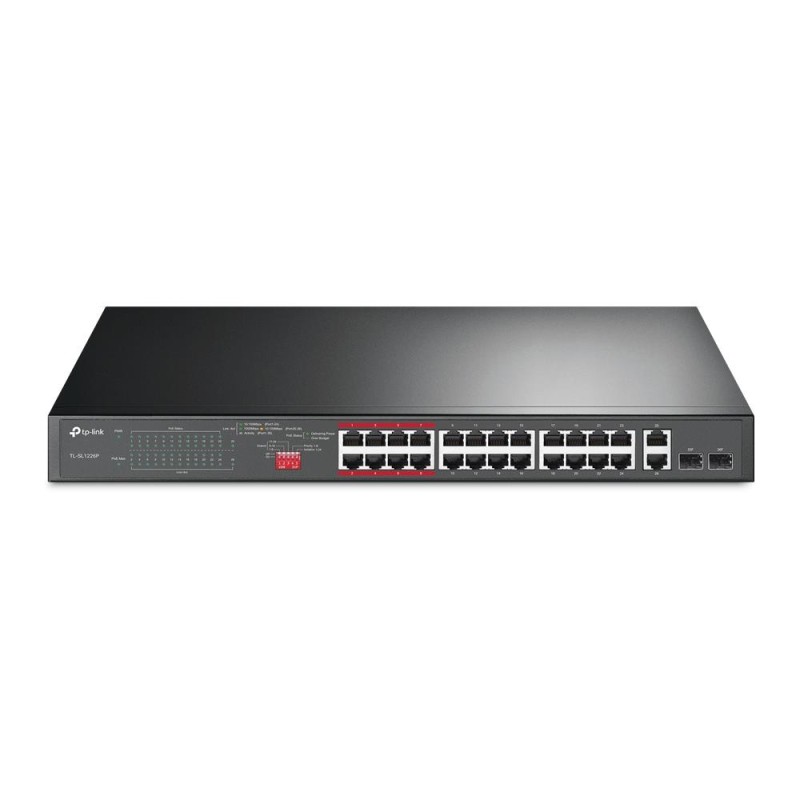

TL-SL1226P, Type Unmanaged, 26xBasic switching RJ-45 Ethernet ports quantity, Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000), 2xCombo SFP ports quantity, Switching capacity 8.8 Gbit/s, Forwarding rate 6.54 Mpps, Rack mounting Yes, Form factor 1U, Product colour Grey, Power source AC, Power supply included Yes, Power over Ethernet (PoE) Yes, 24xPower over Ethernet plus (PoE+) ports quantity, Power over Ethernet (PoE) power per port 30 W, Total Power over Ethernet (PoE) budget 250 W, Width 440 mm, Depth 180 mm, Height 44 mm
Plug and Play, with PoE Transmission for Surveillance up to 250 m
- 250 W PoE Budget - Transmission Distance up to 250 m - One-Click Priority Mode - One-Click Traffic Separation - Ultra HD Video - Plug and Play
Dedicated 24-Port PoE+ Switch for Wide Range of Applications with 250 W PoE Budget
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 250 W PoE power budget for the 24× PoE ports makes it has wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and etc.
Dedicated Design for IP Surveillance—Up to 250 m Transmission
With extend mode, the PoE transmission distance reaches up to 250 m — perfect for IP Camera deployment in large areas.
Dedicated Design for IP Surveillance — Higher Performance and Security
Priority Video Quality Guaranteed
Quality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1–8 when one-touch Priority Mode is on.
One-Click Traffic Separation for Ports 1-24
With one click, Isolation Mode easily divides traffic for ports 1–24 to avoid snooping and tampering. This enables the switch to isolate broadcast storm, improving LAN security and data transmission.
Smooth HD Video Monitoring
2× gigabit RJ45 ports and 2× combo gigabit SFP ports ensure smooth streaming even when 24× HD IP cameras work simultaneously.
Intelligent Power Management to Prevent Power Overload
When your total power consumption exceeds 250 W, Intelligent Power Management automatically cuts lower priority ports’ power to ensure high-priority ports’ power supply. This protects the device from power overload operation. It also automatically detects the required PoE power for your device and protects your non-PoE equipment from being damaged.
Wide Operating Temperature with Good Heat Dissipation
Durable metal casing and professional heat dissipation design ensure the wide operating temperature (0–50℃) with reliability.
4xBasic switching RJ-45 Ethernet ports quantity, Basic switching RJ-45 Ethernet ports type 10G Ethernet (100/1000/10000), Yes, Product colour White, DIN rail mounting Yes, Power source DC/PoE, Power over Ethernet (PoE) Yes, Width 176 mm, Depth 128 mm, Height 35 mm
TL-SL1226P, Type Unmanaged, 26xBasic switching RJ-45 Ethernet ports quantity, Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000), 2xCombo SFP ports quantity, Switching capacity 8.8 Gbit/s, Forwarding rate 6.54 Mpps, Rack mounting Yes, Form factor 1U, Product colour Grey, Power source AC, Power supply included Yes, Power over Ethernet (PoE) Yes, 24xPower over Ethernet plus (PoE+) ports quantity, Power over Ethernet (PoE) power per port 30 W, Total Power over Ethernet (PoE) budget 250 W, Width 440 mm, Depth 180 mm, Height 44 mm
