Kirjeldus

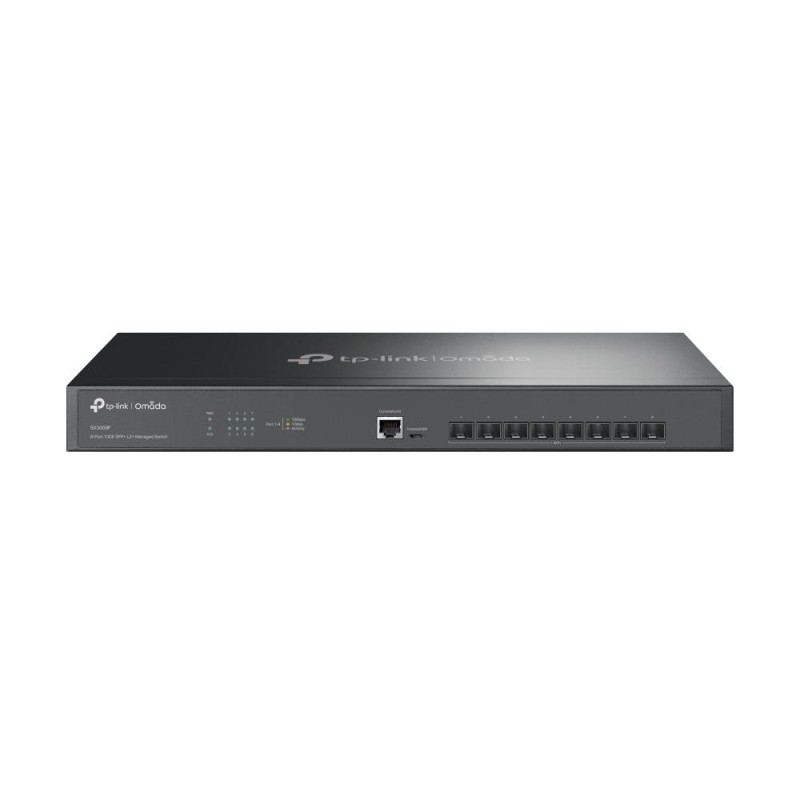

TP-Link | Omada L2+ managed switches provide high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The 10-gigabit ports ensure high-speed data transfer, and their backward compatility with gigabit products reserves room for network upgrades, therefore guarantees stable and long-term usability. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-of-Service (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM function helps facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ 10-gigabit managed switches provide a reliable, secure solution for enterprise, campus and ISP networks.
8× 10 Gbps SFP+ slots enable high-bandwidth connectivity 160 Gbps Switching Capacity Centralized cloud management via the web or the Omada app† Standalone management via web, CLI, SNMP, and RMON Static Routing helps route internal traffic for higher efficiency VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM ERPS supports rapid protection and recovery in a ring topology Fanless design for silent operation Durable metal casing and rack-mountable design
Üldine informatsioon
Tootekood
TL-SX3008F
Tarneaeg 2-5 tööpäeva.
1 Ühik
Lisainfo
Müüja koduleht
https://www.tp-link.com/en/business-networking/omada-switch-l3-l2-managed/sx3008f/
Mudeli nimi
TL-SX3008F
Garantija
60
Seeria
Omada
Category Code
SWI
Unit Box Height
0.25
Unit Box Length
0.53
Unit Box Width
0.08
Units per Shipping Box
1
Unit Calculated Volume
0.0106 cubm
Unit Calculated Weight
2.43 kg
CnCode
85176200
Summary
TP-Link Omada 8-Port 10GE SFP+ L2+ Managed Switch. Switch type: Managed, Switch layer: L2/L3. Console port: RJ-45/micro-USB. MAC address table: 32000 entries, Switching capacity: 160 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEE
Weight & dimensions (Width)
440 mm
Weight & dimensions (Depth)
180 mm
Weight & dimensions (Height)
44 mm
Packaging content (Quick start guide)
Yes
Packaging content (Cables included)
AC
Power (Power source)
AC
Packaging data (Package type)
Box
Operational conditions (Operating temperature (T-T))
0 - 45 C
Operational conditions (Storage relative humidity (H-H))
5 - 90 %
Operational conditions (Storage temperature (T-T))
-40 - 70 C
Design (Product colour)
Black
Power (AC input frequency)
50/60 Hz
Power (AC input voltage)
220 V
Power (Power consumption (max))
15.46 W
Certificates (Certification)
CE, FCC, RoHS
Packaging content (Manual)
Yes
Operational conditions (Operating relative humidity (H-H))
10 - 90 %
Design (LED indicators)
Yes
Security (Security algorithms)
HTTPS/SSH/SSH-2/SSL/TLS
Management features (Web-based management)
Yes
Network (Networking standards)
IEEE 802.1D/IEEE 802.1Q/IEEE 802.1s/IEEE 802.1w/IEEE 802.3ad/IEEE 802.3x
Management features (Cloud-managed)
Yes
Packaging content (Rack mount kit)
Yes
Management features (Switch layer)
L2/L3
Management features (Switch type)
Managed
Ports & interfaces (Basic switching RJ-45 Ethernet ports type)
No
Network (10G support)
Yes
Data transmission (Forwarding rate)
119.04 Mpps
Data transmission (Switching capacity)
160 Gbit/s
Design (Rack mounting)
Yes
Power (Power supply included)
Yes
Power over Ethernet (PoE) (Power over Ethernet (PoE))
No
Ports & interfaces (SFP+ module slots quantity)
8
Network (Broadcast storm control)
Yes
Network (Flow control support)
Yes
Network (Link aggregation)
Yes
Network (Port mirroring)
Yes
Network (Spanning tree protocol)
Yes
Network (VLAN support)
Yes
Security (Authentication type)
AAA,TACACS+
Ports & interfaces (Power connector)
DC-in jack
Data transmission (Static route)
Yes
Security (DHCP features)
DHCP relay/DHCP server/DHCP snooping/DHCPv6 client/DHCPv6 snooping
Data transmission (MAC address table)
32000 entries
Data transmission (Packet buffer memory)
16 MB
Ports & interfaces (Console port)
RJ-45/micro-USB
Data transmission (Jumbo frames)
9000
Data transmission (Jumbo frames support)
Yes
Operational conditions (Heat dissipation)
52.75 BTU/h
Security (MAC address filtering)
Yes
Management features (Quality of Service (QoS) support)
Yes
Network (Number of VLANs)
4000
Network (Virtual LAN features)
Private VLAN/Protocol-based VLAN/Voice VLAN
Security (Loop protection)
Yes
Network (Rate limiting)
Yes
Security (IGMP snooping)
Yes
Management features (ARP inspection)
Yes
Management features (Configuring Location Settings (CLI))
Yes
Management features (MIB support)
RFC2925, RFC2618, RFC2620, RFC2021, RFC2819, RFC2674, RFC1493, RFC1643, RFC2233, RFC1213
Management features (System event log)
Yes
Management features (Traffic classification)
Yes
Network (Head-of-line (HOL) blocking)
Yes
Network (IP routing)
Yes
Data transmission (Number of queues)
8
Security (Access Control List (ACL))
Yes
Security (Authentication)
Guest VLAN,MAC-based authentication,Port-based authentication,Web-based authentication
Security (BPDU filtering/protection)
Yes
Security (IP-MAC-Port binding)
Yes
Security (Queue scheduling algorithms)
SP/Weighted Round Robin (WRR)/WRR+SP
Security (SSH/SSL support)
Yes
Security (Static port security)
Yes
Multicast features (Multicast Listener Discovery (MLD) snooping)
Y
Multicast features (Multicast support)
Yes
Protocols (IPv4 & IPv6 features)
IPv6 ping/IPv6 Telnet/IPv6 tracert
Protocols (Management protocols)
SNMPv1/v2c/v3, SNTP
Eriviited
ean13
6935364006457
MPN
1337473
