LR2110-8ET-120-V2, Switch layer L2, 8xBasic switching RJ-45 Ethernet ports quantity, Basic switching RJ-45 Ethernet ports type Fast Ethernet (10/100), 1xSFP module slots quantity, Switching capacity 8.8 Gbit/s, Forwarding rate 4.17 Mpps, Product colour Black, Power supply included Yes, Power over Ethernet (PoE) Yes, 8xPower over Ethernet (PoE) ports quantity, Total Power over Ethernet (PoE) budget 120 W, Width 150 mm, Depth 100 mm, Height 42 mm, Weight 590 g

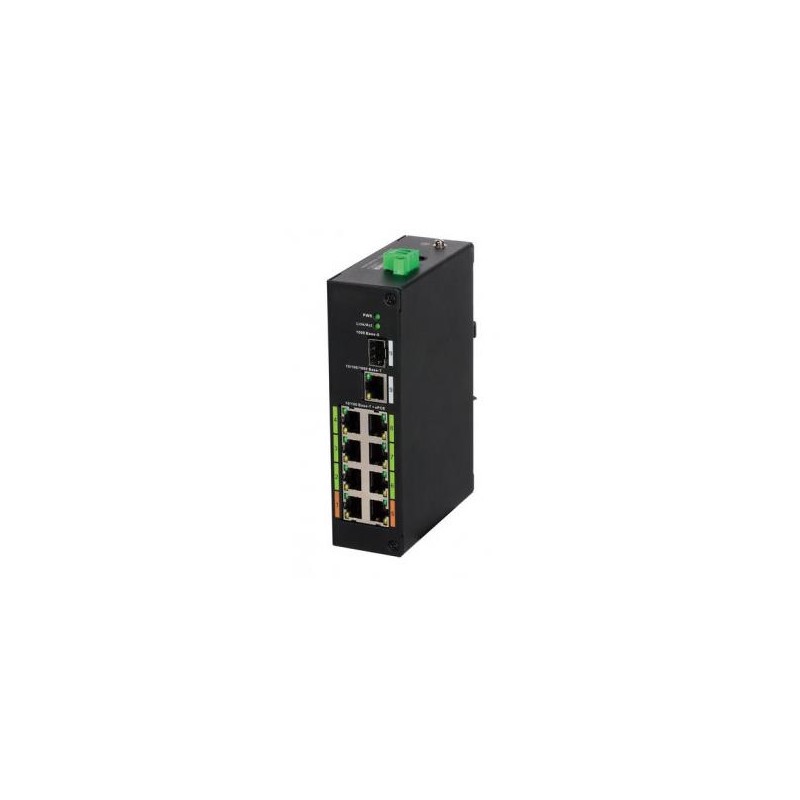

DH-LR2110-8ET-120 is a 8-Port ePoE switch, which is able to realize PoE transmission over 800 meters Ethernet cable at the speed of 10Mbps, or 300 meters at the speed of 100Mbps. Besides, it supports PoE and PoC power supply technology, which has greatly simplified construction and wiring. Dahua ePoE technology offer a new way to accomplish long distance transmission between IP camera and network switch. It allows more flexible surveillance system design, improves reliability and saves construction and wiring cost.
Supports long distance PoE transmission up to 800m with ePoE technology of Dahua
Layer-two ePoE switch· MAC auto study and aging, MAC address list capacity is 8K
Conform IEEE802.3, IEEE802.3u, IEEE802.3ab/z and IEEE802.3X standards
Supports IEEE802.3af, IEEE802.3at, Hi-PoE standard
Industrial wide temperature design
Port indicator light is to display the status of current transmission mode for the port, which includes IEEE, E100 and E10
