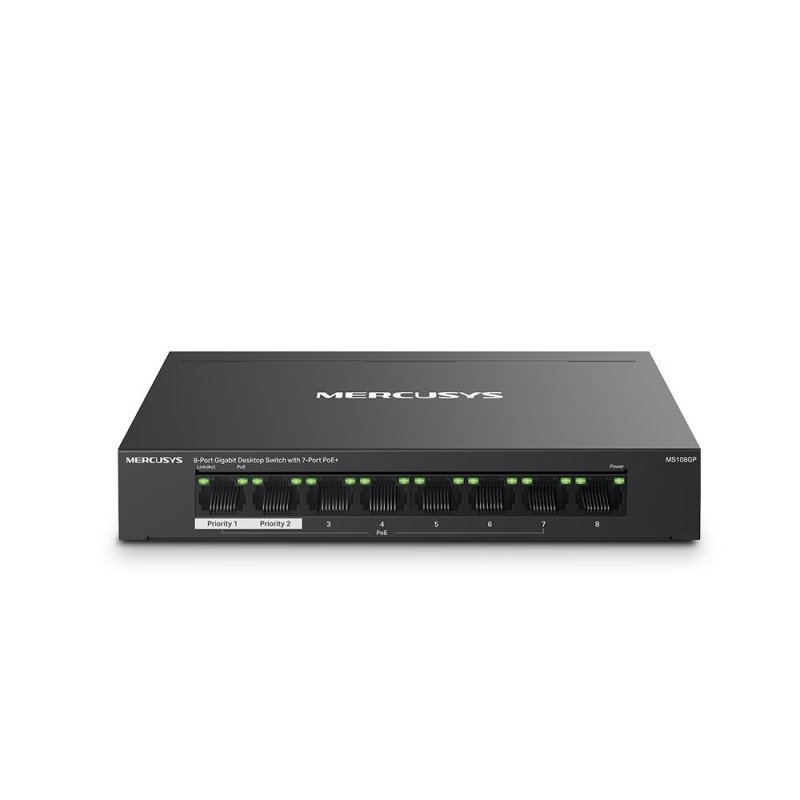

Switch|MERCUSYS|MS108GP|PoE+ ports 7|MS108GP

Name: Switch|MERCUSYS|MS108GP|PoE+ ports 7|MS108GP
Brand: MERCUSYS
SKU: MS108GP
Price: 27.8 EUR
Availability: InStock

Tootekood MS108GP

Kaubamärk MERCUSYS

27,80 €

KM-ga

Tarneaeg 1-5 tööpäeva.

Kogus

Laos

Tarneaeg 2-5 tööpäeva. : 13 Tooted

Kirjeldus
Üldine informatsioon

Kirjeldus

7 PoE+ Ports (65 W Budget) for Network Deployment
All eight ports of the MS108GP are gigabit ports, with seven PoE+ ports (1-7). Each PoE+ port supports a maximum of 30 W and is compliant with the 802.3af/at Powered Devices. The total 65 W PoE power budget* enables a variety of uses, including surveillance for offices, dormitories, and small businesses. IP cameras, access points, IP phones, PCs, video recorders, and more are all completely compatible with it.

No Fuss
No need for electricians; simplify installation and deployment.

Cost-Efficiency
Getting rid of extra cables and power adapters will save money on infrastructure.

Flexibility
Deployment in complex situations is made possible by more placement possibilities.

Power Management
Improves power usage while intelligently protecting your gadgets from power surges.

IEEE 802.3af/at
PoE ports compliant with the 802.3af/at Powered Devices.

Long-Range up to 250 m with Extend Mode**
Extend Mode** increases PoE transmission distance to 250 m. MS108GP has 7 long-range ports with PoE+. Turn on the Extend Mode and make it ideal for installing surveillance cameras over wide areas.

Traffic Separation
With only one click, isolation mode divides traffic for ports 1-7 to prevent snooping/tampering and isolate broadcast storms for greater protection.

Port Prioritization
Prioritizing the data of specific ports would ensure the high quality of delicate applications, such as voice and video, in crucial business domains.

Plug and Play
MS108GP offers auto-negotiation (10/100/1000 M) and automated MDI/MDIX. There is no additional configuration needed. It is simple to use and saves time and effort.

Durable and Silent
MS108GP's durable metal case allows for efficient heat dissipation, excellent signal interference prevention, equipment stability, and long network life.

Full Gigabit Ports: 8× 10/100/1000 Mbps RJ45 ports
Two Cables in One: With 7 PoE+ ports, transfers data and power on one single cable
High Power PoE+: Support PoE Power up to 30 W for each PoE port and 65 W for all PoE ports*
Long-Range up to 250 m: Increases PoE transmission distance to 250 m by Extend Mode*
Isolation Mode: One click to divide traffic for specific ports for stability and security
Compliant with Powered Devices: Works with IEEE 802.3af/at compliant PDs
Durable Metal Casing: Allows for efficient heat dissipation and long network life
Plug and Play: Simple to use and saves time and effort

Üldine informatsioon

Kaubamärk MERCUSYS

Tootekood MS108GP

Tarneaeg 2-5 tööpäeva. 13 Tooted

Lisainfo

Müüja koduleht: https://www.mercusys.com/en/product/details/ms108gp
Mudeli nimi: MS108GP
Garantija: 36
Category Code: SWI
Unit Box Height: 0.085
Unit Box Length: 0.125
Unit Box Width: 0.19
Units per Shipping Box: 12
Unit Calculated Volume: 0.00252 cubm
Unit Calculated Weight: 0.858 kg
Summary: Mercusys 8-Port Gigabit Desktop Switch with 7-Port PoE+. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 8000 entries. Netwo
Weight & dimensions (Width): 171 mm
Weight & dimensions (Depth): 98 mm
Weight & dimensions (Height): 27 mm
Packaging content (Quick start guide): Yes
Packaging content (Cables included): AC
Power (Power source): AC
Operational conditions (Operating temperature (T-T)): 0 - 40 C
Operational conditions (Storage relative humidity (H-H)): 5 - 95 %
Operational conditions (Storage temperature (T-T)): -40 - 70 C
Design (Product colour): Black
Power (AC input frequency): 50 Hz
Power (AC input voltage): 220 V
Power (Power consumption (max)): 77.33 W
Power (Power consumption (typical)): 5.07 W
Design (Housing material): Metal
Operational conditions (Operating relative humidity (H-H)): 10 - 90 %
Power (Input current): 1.31 A
Management features (Web-based management): Yes
Network (Networking standards): IEEE 802.3af/IEEE 802.3at/IEEE 802.3x
Power (Input voltage): 53.5 V
Management features (Switch type): Managed
Ports & interfaces (Basic switching RJ-45 Ethernet ports quantity): 8
Ports & interfaces (Basic switching RJ-45 Ethernet ports type): Gigabit Ethernet (10/100/1000)
Network (10G support): No
Design (Rack mounting): No
Power (Power supply included): Yes
Power over Ethernet (PoE) (Power over Ethernet (PoE)): Yes
Network (Flow control support): Yes
Data transmission (MAC address table): 8000 entries
Power over Ethernet (PoE) (Power over Ethernet (PoE) ports quantity): 7
Network (Auto MDI/MDI-X): Yes
Network (Full duplex): Yes
Design (Stackable): No
Design (Wall mountable): Yes
Network (Half duplex): Yes
Data transmission (Store-and-forward): Yes
Operational conditions (Heat dissipation): 262.922 BTU/h
Power over Ethernet (PoE) (Power over Ethernet (PoE) power per port): 65 W
Power over Ethernet (PoE) (Power over Ethernet plus (PoE+) ports quantity): 1
Management features (Traffic classification): Yes
Network (Policy-based routing): Yes
