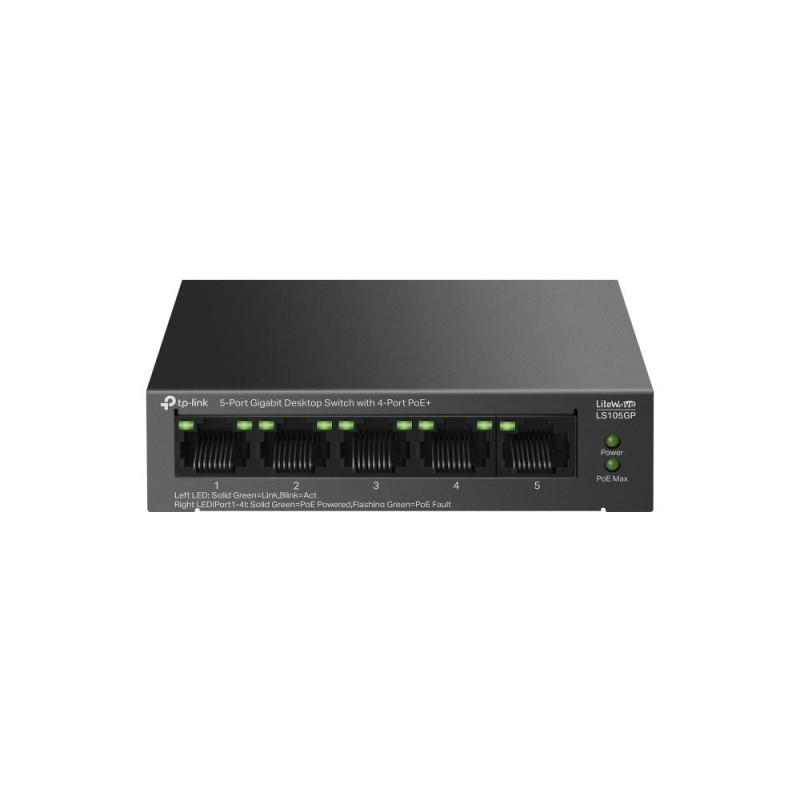

Switch|TP-LINK|LS105GP|PoE+ ports 4|LS105GP

Name: Switch|TP-LINK|LS105GP|PoE+ ports 4|LS105GP
Brand: TP-LINK
SKU: LS105GP
Price: 27.59 EUR
Availability: InStock

Tootekood LS105GP

Kaubamärk TP-LINK

27,59 €

KM-ga

Tarneaeg 1-5 tööpäeva.

Kogus

Laos

Tarneaeg 2-5 tööpäeva. : 8 Tooted

Kirjeldus
Üldine informatsioon

Kirjeldus

Overview
The TP-Link LiteWave Series PoE Switches require no configuration and provide PoE (Power over Ethernet) ports. They can automatically detect and supply power with all IEEE 802.3af/at compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.

Full Gigabit Ports: Five gigabit augo-negotiation ports provide up to 10 Gbps switching capacity
65 W PoE Budget: Four gigabit 802.3af/at-compliant PoE+ ports easily connect and power fixed devices like IP cameras, access points, and IP phones via a single cable. Up to 30 W PoE output is supported by each PoE port.*
Up to 250 m PoE Transmission: With Extend Mode, PoE transmission distance reaches up to 250m, perfect for surveillance camera deployment in large areas.**
PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices
Plug and Play: Simply plug and play for instant connectivity with no configuration required
Silent Operation: Fanless design reduces power consumption and ensures silent operation, ideal for noise-sensitive homes or businesses
Reliable Hardware Design: Durable metal casing and desktop/wall-mounting design are well-suited for different environments

Üldine informatsioon

Kaubamärk TP-LINK

Tootekood LS105GP

Tarneaeg 2-5 tööpäeva. 8 Tooted

Lisainfo

Müüja koduleht: https://www.tp-link.com/uk/business-networking/soho-switch-poe/ls105gp/ specifications
Mudeli nimi: LS105GP
Garantija: 60
Mudel: TP-LINK LS105GP
Category Code: SWI
Unit Box Height: 0.122
Unit Box Length: 0.197
Unit Box Width: 0.13
Units per Shipping Box: 1
Unit Calculated Volume: 0.003124 cubm
Unit Calculated Weight: 0.68 kg
Summary: TP-Link LiteWave 5-Port Gigabit Desktop Switch with 4-Port PoE+. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 2000 entries, Switchin
Weight & dimensions (Width): 99.8 mm
Weight & dimensions (Depth): 98 mm
Weight & dimensions (Height): 25 mm
Power (Power source): DC/PoE
Packaging data (Package type): Box
Operational conditions (Operating temperature (T-T)): 0 - 40 C
Operational conditions (Storage relative humidity (H-H)): 5 - 90 %
Operational conditions (Storage temperature (T-T)): -40 - 70 C
Design (Product colour): Black
Power (AC input frequency): 50 Hz
Power (AC input voltage): 220 V
Power (Power consumption (max)): 74.46 W
Certificates (Certification): CE, FCC, RoHS
Operational conditions (Operating relative humidity (H-H)): 10 - 90 %
Packaging content (User guide): Yes
Design (LED indicators): Yes
Network (Networking standards): IEEE 802.1p/IEEE 802.3ab/IEEE 802.3af/IEEE 802.3at/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x
Management features (Switch type): Unmanaged
Ports & interfaces (Basic switching RJ-45 Ethernet ports quantity): 5
Ports & interfaces (Basic switching RJ-45 Ethernet ports type): Gigabit Ethernet (10/100/1000)
Network (10G support): No
Data transmission (Forwarding rate): 7.44 Mpps
Data transmission (Switching capacity): 10 Gbit/s
Power (DC input voltage): 53.5 V
Power (Power supply included): Yes
Power over Ethernet (PoE) (Power over Ethernet (PoE)): Yes
Network (Flow control support): Yes
Network (Cable types supported): Cat3/Cat4/Cat5/Cat5e
Data transmission (MAC address table): 2000 entries
Power over Ethernet (PoE) (Power over Ethernet (PoE) ports quantity): 4
Network (Auto MDI/MDI-X): Yes
Data transmission (Jumbo frames): 16000
Network (Auto-negotiation): Yes
Data transmission (Store-and-forward): Yes
Operational conditions (Heat dissipation): 253.16 BTU/h
Management features (Quality of Service (QoS) support): Yes
Power over Ethernet (PoE) (Total Power over Ethernet (PoE) budget): 65 W
Power over Ethernet (PoE) (Power over Ethernet (PoE) power per port): 30 W
Security (IGMP snooping): Yes
Network (MAC address auto-aging supported): Yes
Network (MAC address auto-learning supported): Yes
