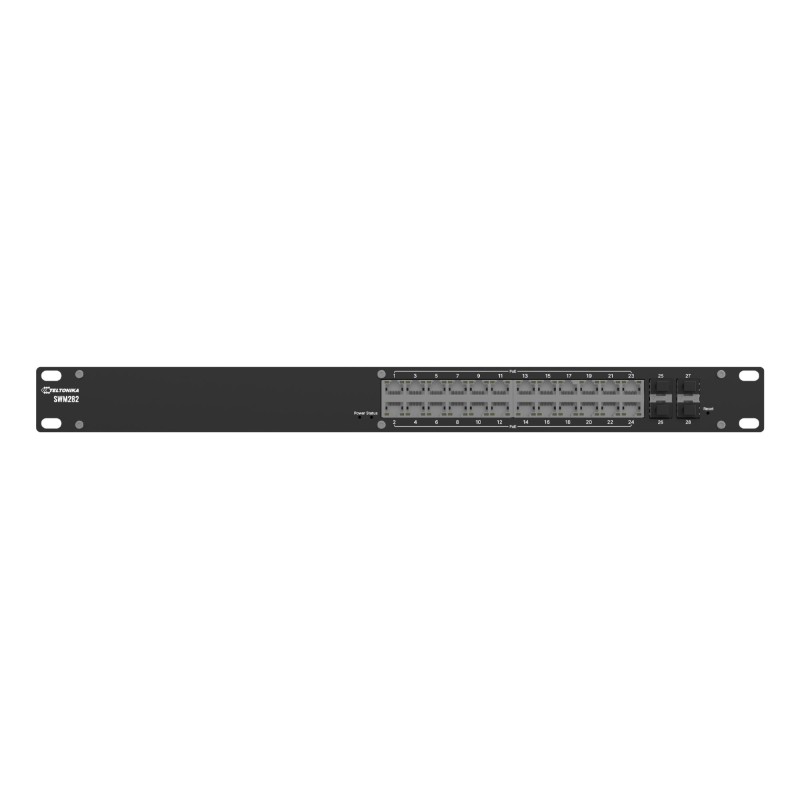

Switch|TELTONIKA|SWM282000200|Switch type Managed|Switch layer L2|24xRJ-45 ports|Power over Ethernet (PoE) Yes|24xPower over Eth

Tootekood SWM282

Kaubamärk TELTONIKA

316,86 €

KM-ga

Tarneaeg 1-5 tööpäeva.

Kogus

Laos

Tarneaeg 2-5 tööpäeva. : 18 Tooted

Kirjeldus
Üldine informatsioon

Kirjeldus

The SWM282 is a high-capacity L2 managed switch with enhanced L3 capabilities, built to simplify network control while delivering power and connectivity at scale. It features 24 PoE+ ports, supplying up to 30 W per port with a total power budget of 300 W, and 4 SFP ports. With support for PROFINET and other industrial protocols, this 24-port switch is an ideal choice for enterprise networks and IIoT solutions.

Üldine informatsioon

Kaubamärk TELTONIKA

Tootekood SWM282

Tarneaeg 2-5 tööpäeva. 18 Tooted

Lisainfo

Müüja koduleht: https://www.teltonika-networks.com/products/ethernet-switches/swm282
Mudeli nimi: SWM282000200
Garantija: 24
Mudel: SWM282
Category Code: SWI
Unit Box Height: 0.1
Unit Box Length: 0.52
Unit Box Width: 0.33
Units per Shipping Box: 1
Unit Calculated Volume: 0.01716 cubm
Unit Calculated Weight: 2.58 kg
Summary: Teltonika SWM282. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. MAC address table: 8000 entries, Switching capacity: 56 Gbit/s. Networ
Weight & dimensions (Width): 483 mm
Weight & dimensions (Depth): 234 mm
Weight & dimensions (Height): 44 mm
Weight & dimensions (Weight): 2291 g
Packaging content (Quick start guide): Yes
Power (Power source): AC
Packaging data (Package type): Box
Certificates (Compliance certificates): CB/CE/Federal Communications Commission (FCC)/Industry Canada (IC)/RCM/UKCA
Operational conditions (Operating temperature (T-T)): 0 - 50 C
Design (Product colour): Black
Power (AC input frequency): 50/60 Hz
Power (AC input voltage): 100 - 240 V
Power (Power consumption (max)): 330 W
Design (Housing material): Aluminium
Operational conditions (Operating relative humidity (H-H)): 10 - 90 %
Design (Reset button): Yes
Network (Ethernet LAN data rates): 10,100,1000 Mbit/s
Performance (Built-in processor): Yes
Performance (Internal memory): 128 MB
Performance (Processor frequency): 500 MHz
Design (International Protection (IP) code): IP30
Management features (Web-based management): Yes
Network (Networking standards): IEEE 802.1p/IEEE 802.1Q/IEEE 802.1x/IEEE 802.3ab/IEEE 802.3af/IEEE 802.3at/IEEE 802.3az/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x
Performance (Flash memory): 16 MB
Management features (Switch layer): L2+
Management features (Switch type): Managed
Ports & interfaces (Basic switching RJ-45 Ethernet ports quantity): 24
Ports & interfaces (Basic switching RJ-45 Ethernet ports type): Gigabit Ethernet (10/100/1000)
Network (10G support): No
Data transmission (Forwarding rate): 83.33 Mpps
Data transmission (Switching capacity): 56 Gbit/s
Design (Rack mounting): Yes
Power (Power supply included): No
Power over Ethernet (PoE) (Power over Ethernet (PoE)): Yes
Network (Port mirroring): Yes
Network (VLAN support): Yes
Security (Authentication type): RADIUS,TACACS+
Ports & interfaces (Power connector): AC-in jack
Data transmission (Static route): Yes
Security (DHCP features): DHCP client/DHCP server/DHCPv6 client
Data transmission (MAC address table): 8000 entries
Data transmission (Packet buffer memory): 0.512 MB
Network (Auto MDI/MDI-X): Yes
Data transmission (Jumbo frames): 10000
Data transmission (Jumbo frames support): Yes
Security (MAC address filtering): Yes
Management features (Quality of Service (QoS) support): Yes
Power over Ethernet (PoE) (Total Power over Ethernet (PoE) budget): 300 W
Ports & interfaces (SFP module slots quantity): 4
Security (Loop protection): Yes
Power over Ethernet (PoE) (Power over Ethernet (PoE) power per port): 30 W
Network (Rate limiting): Yes
Power over Ethernet (PoE) (Power over Ethernet plus (PoE+) ports quantity): 24
Performance (Memory type): DDR3-SDRAM
Security (Queue scheduling algorithms): SP/Weighted Round Robin (WRR)/WFQ
Power over Ethernet (PoE) (Power over Ethernet (PoE) type supported): Active PoE/PoE+
Performance (Firmware upgradeable): Yes
Management features (Traffic shaping): Yes
Power over Ethernet (PoE) (Power over Ethernet (PoE) modes): Alternative A
