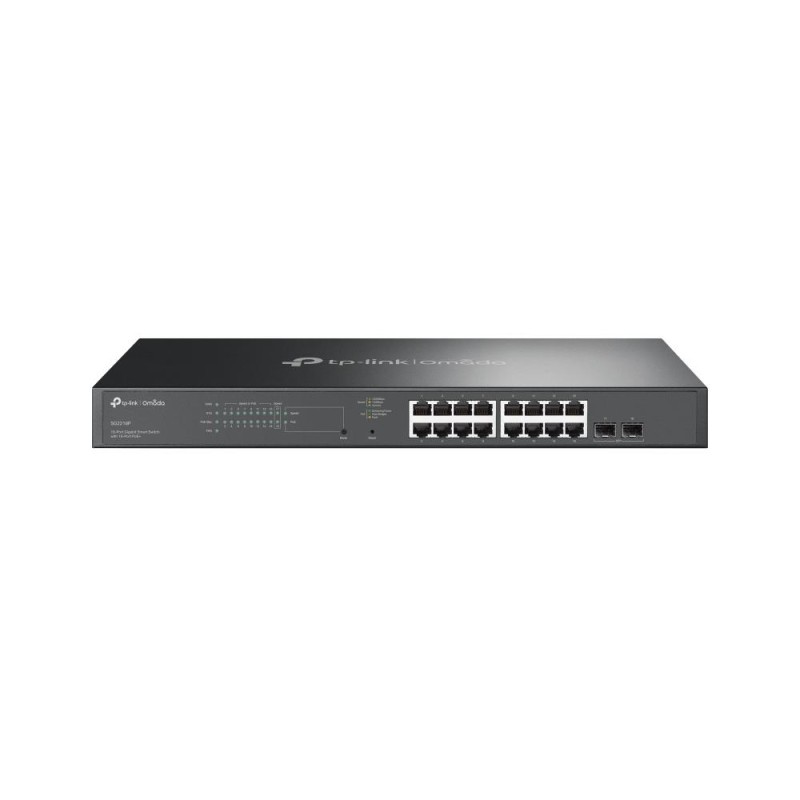

Võrgulüliti TP-LINK JetStream TL-SG2218P Desktop pedestal 16x10Base-T 100Base-TX 1000Base-T 2xSFP PoE+ ports 16 150 Watts TL

Lisainfo

Müüja koduleht

https://www.tp-link.com/en/business-networking/omada-switch-poe/sg2218p/

Mudeli nimi

TL-SG2218P

Garantija

60

Seeria

JetStream

Category Code

SWI

Unit Box Height

0.08

Unit Box Length

0.54

Unit Box Width

0.25

Units per Shipping Box

1

Unit Calculated Volume

0.0108 cubm

Unit Calculated Weight

3.2 kg

Summary

TP-Link Omada 18-Port Gigabit Smart Switch with 16-Port PoE+. Switch type: Managed, Switch layer: L2/L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. MAC address table: 8000

Weight & dimensions (Width)

440 mm

Weight & dimensions (Depth)

180 mm

Weight & dimensions (Height)

44 mm

Packaging content (Cables included)

LAN (RJ-45)

Power (Power source)

DC/PoE

Packaging data (Package type)

Box

Operational conditions (Operating temperature (T-T))

0 - 50 C

Operational conditions (Storage relative humidity (H-H))

5 - 90 %

Operational conditions (Storage temperature (T-T))

-40 - 70 C

Design (Product colour)

Black

Power (AC input frequency)

50/60 Hz

Power (AC input voltage)

100 - 240 V

Power (Power consumption (max))

181.4 W

Certificates (Certification)

CE, FCC, RoHS

Operational conditions (Operating relative humidity (H-H))

10 - 90 %

Design (Form factor)

1U

Packaging content (User guide)

Yes

Design (LED indicators)

Yes

Network (Ethernet LAN data rates)

10,100,1000 Mbit/s

Management features (Web-based management)

Yes

Network (Networking standards)

IEEE 802.1D/IEEE 802.1p/IEEE 802.1Q/IEEE 802.1s/IEEE 802.1w/IEEE 802.1x/IEEE 802.3ab/IEEE 802.3ad/IEEE 802.3az/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z

Management features (Cloud-managed)

Yes

Management features (Switch layer)

L2/L2+

Management features (Switch type)

Managed

Ports & interfaces (Basic switching RJ-45 Ethernet ports quantity)

16

Ports & interfaces (Basic switching RJ-45 Ethernet ports type)

Gigabit Ethernet (10/100/1000)

Network (10G support)

No

Data transmission (Forwarding rate)

26.78 Mpps

Data transmission (Switching capacity)

26.78 Gbit/s

Design (Rack mounting)

Yes

Power (Power supply included)

Yes

Power over Ethernet (PoE) (Power over Ethernet (PoE))

Yes

Network (Broadcast storm control)

Yes

Network (Flow control support)

Yes

Network (Link aggregation)

Yes

Network (Spanning tree protocol)

Yes

Network (VLAN support)

Yes

Security (DHCP features)

DHCP client/DHCP relay/DHCP snooping

Data transmission (MAC address table)

8000 entries

Data transmission (Packet buffer memory)

4.1 MB

Network (Auto MDI/MDI-X)

Yes

Data transmission (Jumbo frames)

9

Data transmission (Jumbo frames support)

Yes

Network (Auto-negotiation)

Yes

Operational conditions (Heat dissipation)

619.06 BTU/h

Security (MAC address filtering)

Yes

Management features (Quality of Service (QoS) support)

Yes

Power over Ethernet (PoE) (Total Power over Ethernet (PoE) budget)

150 W

Ports & interfaces (SFP module slots quantity)

2

Security (Loop protection)

Yes

Network (Rate limiting)

Yes

Management features (ARP inspection)

Yes

Management features (Configuring Location Settings (CLI))

Yes

Management features (MIB support)

MIB II (RFC1213), Bridge MIB (RFC1493), P/Q-Bridge MIB (RFC2674), Radius Accounting Client MIB (RFC2620), Radius Authentication Client MIB (RFC2618), Remote Ping, Traceroute MIB (RFC2925), Support TP-Link private MIBs, RMON MIB(RFC1757, rmon 1,2,3,9)

Management features (System event log)

Yes

Network (IP routing)

Yes

Security (Access Control List (ACL))

Yes

Security (Authentication)

MAC-based authentication,Port-based authentication

Security (BPDU filtering/protection)

Yes

Security (SSH/SSL support)

Yes

Security (Static port security)

Yes

Multicast features (Multicast support)

Yes

Network (Policy-based routing)

Yes

Multicast features (Multicast features)

Multicast forwarding

Eriviited

ean13

4897098689509

MPN

1404658
