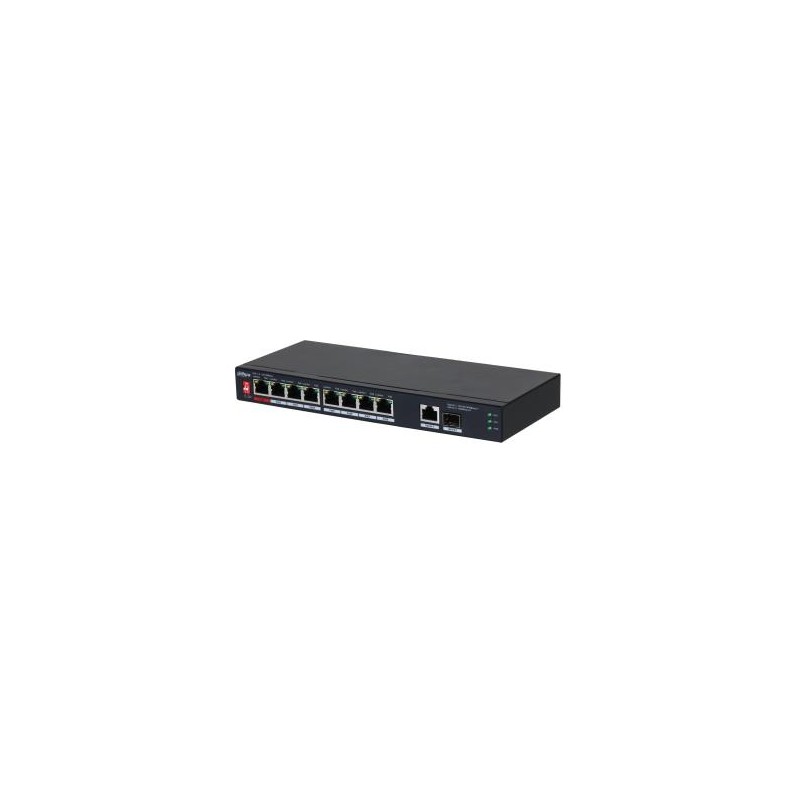

Switch|DAHUA|PFS3110-8ET1GT1GF-96|Desktop/pedestal|8x10Base-T / 100Base-TX|1x10Base-T / 100Base-TX / 1000Base-T|2x1000Base-T|PoE

Tootekood DH-PFS3110-8ET1GT1GF-96

Kaubamärk DAHUA

174,10 €

78,34 € SÄÄST 95,76 €

KM-ga

Tarneaeg 1-5 tööpäeva.

Kogus

Laos

Tarneaeg 2-5 tööpäeva. : 50 Tooted

Kirjeldus
Üldine informatsioon

Kirjeldus

Intelligent PoEP

rovides power consumption control and real-time monitoring toguarantee priority of power supply for important ports and preventmalfunctioning caused by power consumption change. Supports ultrawide power supply, able to adapt to IPC power fluctuation.

Red Port 90 W

The red ports support IEEE802.3af, IEEE802.3at, IEEE802.3bt and Hi-PoEstandards, with a maximum output power consumption of 90W perport. Suitable for powering high-power devices.

PoE Watchdog

Adopts the innovative PoE Watchdog. PoE Watchdog can be switchedon by dialing/turning on the WEB page switch. It enables the switch toautomatically detect port status and restart the failed ports to recoverconnection in case of IPC connection exception. This enables intelligentoperation and maintenance management in its true sense andeffectively reduces manual maintenance costs.

Long Distance PoEB

y dialing or enabling long-range transmission on the WEB interface,the transmission distance of a PoE port can be up to 250 m, meeting therequirement of wired transmission (bandwidth reduced to 10 Mbps).

100 Mbps PoE ports and gigabit uplink ports
The red port meets the IEEE 802.3bt standard
Power supply supports up to 90 W
PoE watchdog monitors the status of terminals in real-time
Supports 250 m long-distance power supply
Supports the power management policy
8-pin PoE offers better compatibility and reduces cable loss
Durable full-metal housing provides great heat dissipation

Üldine informatsioon

Kaubamärk DAHUA

Tootekood DH-PFS3110-8ET1GT1GF-96

Tarneaeg 2-5 tööpäeva. 50 Tooted

Lisainfo

Müüja koduleht: https://www.dahuasecurity.com/search/products?keyword DH-PFS3110-8ET1GT1GF-96
Mudeli nimi: PFS3110-8ET1GT1GF-96
Garantija: 36
Category Code: SWI
Unit Box Height: 0.09
Unit Box Length: 0.285
Unit Box Width: 0.24
Units per Shipping Box: 1
Unit Calculated Volume: 0.006156 cubm
Unit Calculated Weight: 1.38 kg
Summary: Dahua Technology PoE PFS3110-8ET1GT1GF-96. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 8000 entries, Switching capacity: 5.6 Gbit/s
Weight & dimensions (Width): 240 mm
Weight & dimensions (Depth): 105 mm
Weight & dimensions (Height): 28 mm
Weight & dimensions (Weight): 650 g
Packaging data (Package width): 279 mm
Packaging data (Package depth): 239 mm
Packaging data (Package height): 89 mm
Packaging data (Package weight): 1400 g
Power (Power source): DC
Certificates (Compliance certificates): CE/Federal Communications Commission (FCC)
Operational conditions (Operating temperature (T-T)): -10 - 55 C
Operational conditions (Storage relative humidity (H-H)): 5 - 95 %
Operational conditions (Storage temperature (T-T)): -40 - 70 C
Design (Product colour): Black
Power (Power consumption (max)): 96 W
Design (Housing material): Metal
Operational conditions (Operating relative humidity (H-H)): 10 - 90 %
Power (Input current): 1.81 A
Network (Networking standards): IEEE 802.3/IEEE 802.3ab/IEEE 802.3af/IEEE 802.3at/IEEE 802.3bt/IEEE 802.3u/IEEE 802.3x
Management features (Switch type): Unmanaged
Ports & interfaces (Basic switching RJ-45 Ethernet ports quantity): 8
Ports & interfaces (Basic switching RJ-45 Ethernet ports type): Gigabit Ethernet (10/100/1000)
Network (10G support): No
Data transmission (Forwarding rate): 4.17 Mpps
Data transmission (Switching capacity): 5.6 Gbit/s
Power (DC input voltage): 53 V
Power (Power supply included): Yes
Power over Ethernet (PoE) (Power over Ethernet (PoE)): Yes
Data transmission (MAC address table): 8000 entries
Data transmission (Packet buffer memory): 0.5 MB
Power over Ethernet (PoE) (Power over Ethernet (PoE) ports quantity): 8
Data transmission (Jumbo frames): 9000
Data transmission (Jumbo frames support): Yes
Power over Ethernet (PoE) (Total Power over Ethernet (PoE) budget): 96 W
Ports & interfaces (SFP module slots quantity): 1
