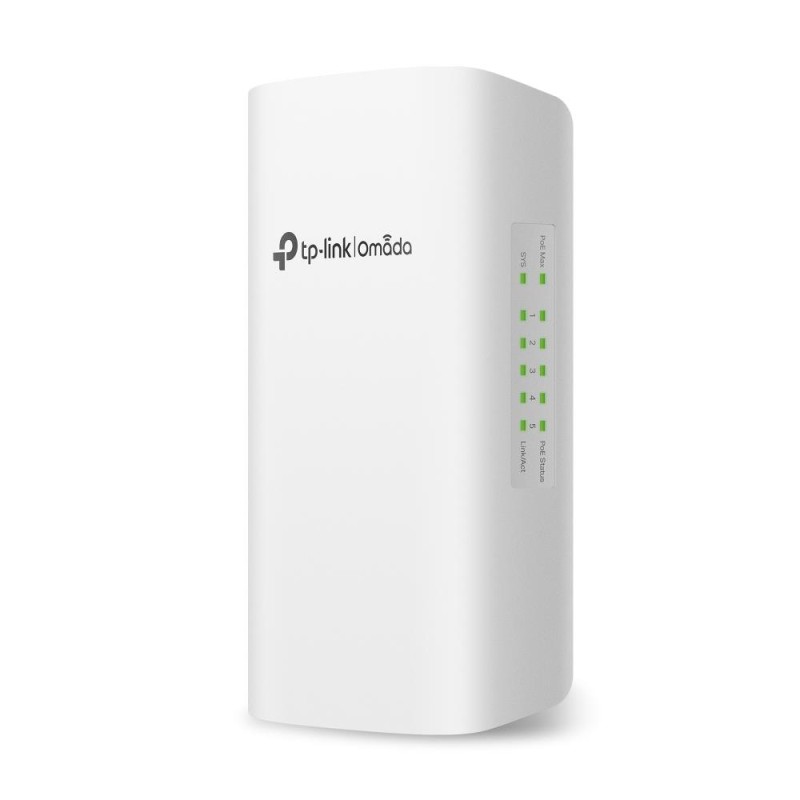

Omada 5-Port Gigabit Smart Switch with 1-Port PoE++ In and 4-Port PoE+ Out
Up to 200 m PoE Distance: Standard PoE Passthrough to doubles PoE source-to-device transmission distance from 100 m (328 ft) to 200 m (656 ft) without losing gigabit speeds, perfect for long-range surveillance cameras and access points.*
1-Port Gigabit PoE++ In and 4-Port PoE+ Out: Supports up to 64 W / 44 W / 19 W/ 6 W PoE budget output when powered by 802.3bt Type 4 (90 W), 802.3bt Type 3 (60 W), 802.3at, and 802.3af PoE, respectively.**
Outdoor Weatherproof: IP55 waterproof, dustproof, and UV-resistant enclosure. Operation temperatures of -40 to 60 °C and 4KV lightning protection further ensure stable operation against harsh outdoor conditions.
Easy Installation: Easy to mount to a wall or pole with the provided mounting kits to flexibly fit your needs.
Centralized Cloud Management: Integrates into Omada SDN for cloud access, remote management, and multi-site management.
Value-Added Features Foster Touchpoint Experiences: Static Routing, Access Control List (ACL), QoS, and VLAN.
Switching capacity 10 Gbps | Forwarding rate 7.4 Mpps | Included Accessories Power Cord,Installation Guide,Resource CD,Rubber Feet | Dimensions 108 х 98 х 25 mm | Product Net Weight 0.36 kg
Forwarding rate 7.4 Mpps | Power supply External | Included Accessories Power Adapter; Installation Guide | Dimensions 99.8 x 98 x 25 mm | Product Net Weight 0.1 kg
Type L2 | PoE+ ports 24 | Switching capacity 56 Gbps | Forwarding rate 83.33 Mpps | Operating temperature range 0 °C to 50 °C | Dimensions 483 x 44 x 234 mm | Product Net Weight 2.291 kg
Switching capacity 1.6 Gbps | Forwarding rate 1.1904 Mpps | Operating temperature range 0 °C to +45 °C | Dimensions 133.5 mm × 56.0 mm × 22.0 mm | Product Net Weight 0.23 kg
Type L3 | Built-in management | PoE ports 8 | PoE power budget 150 Watts | Power supply Inbuilt | Included Accessories 2x IEC cordsRackmount earsK-54 kit | Operating temperature range -20°C to 70°C | Product Net Weight 2 kg
