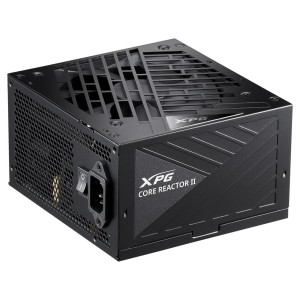

CORE REACTOR II IMPROVE YOUR CORE, ENHANCE YOUR PERFORMANCE CORE REACTOR II is a top-performing power supply unit designed for ATX 3.0 & ATX 3.1 compliance with a modular cable design and an 80 PLUS GOLD certification. These power supplies thrive in high-performance scenarios like servers or workstation setups, where a lot of power is needed.
Next-Gen Ready - ATX 3.0 & ATX 3.1 COMPLIANT CORE REACTOR II series power supply units meet Intel ATX 3.0 & ATX 3.1 design guide specifications and feature a 12VHPWR connector. By upgrading to an ATX 3.0 & ATX 3.1-compliant power supply, you'll be fully equipped for the upcoming wave of high-performance components. A must for the modern gamer, creator, or AI developer. Stay ahead of the curve by upgrading to an ATX 3.0 & ATX 3.1 PSU, the new standard in PC hardware.
Certified GOLD Efficiency CORE REACTOR II units recieved 80 PLUS GOLD certifications for efficiency, achieving up to 91.40% (115V) efficiency at 50% load. It comes in 1200W, 1000W, 850W, 750W, and 650W models for varying user needs and scenarios. It's the perfect PSU for mid-to-high level components, including the latest CPUs and GPUs.
Intelligent Fan-Curve Design The intelligent fan curve ensures quiet operation, even under full power load. By starting the fan at a low RPM, fan performance is both enhanced and extended, thereby increasing the power supply unit's lifespan.
Premium all 105°C Japanese Capacitors CORE REACTOR II features top-tier 105°C Japanese capacitors, ensuring exceptional stability and reliability of the PSU for many years of dependable performance.
PEAK PERFORMANCE AND RELIABILITY All XPG ATX 3.0 and ATX 3.1 power supplies are designed to support up to 235% power excursion, enabling the system to handle sudden power spikes, ensuring stability, and preventing crashes during intense workloads like gaming, rendering, and data processing.

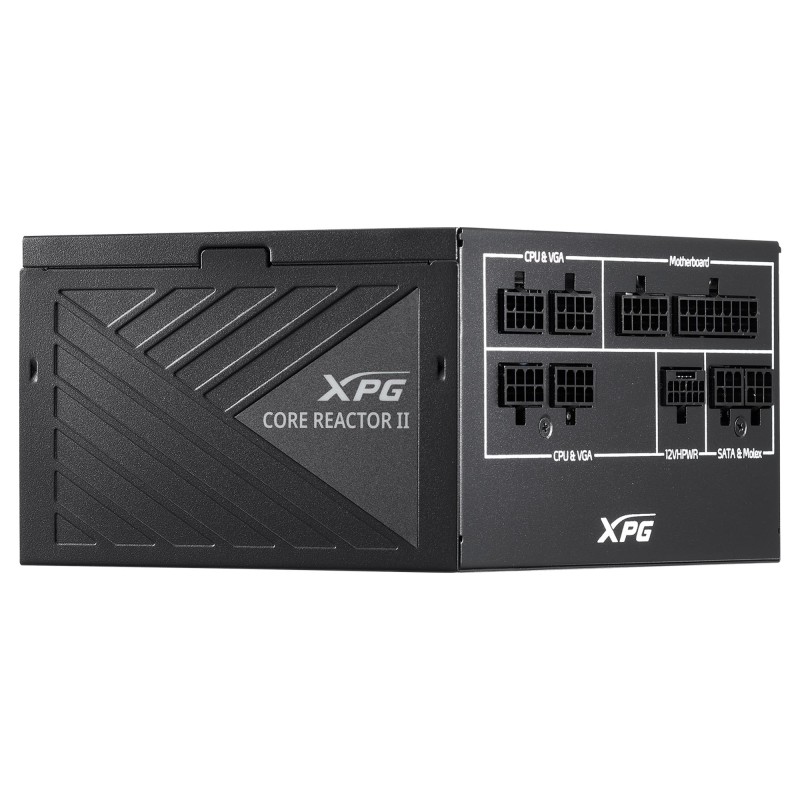

XPG COREREACTOR II 1000W Power Supply. Total power: 1000 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 24-pin ATX, Cabling type: Fully-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS c
Weight & dimensions (Width)
160 mm
Weight & dimensions (Depth)
150 mm
Weight & dimensions (Height)
86 mm
Weight & dimensions (Weight)
1770 g
Packaging data (Package width)
210 mm
Packaging data (Package depth)
338 mm
Packaging data (Package height)
157 mm
Packaging data (Package weight)
3430 g
Certificates (Compliance certificates)
BSMI/CB/CE/China Compulsory Certification (CCC)/cTUVus/EAC/Federal Communications Commission (FCC)/Norma Oficial Mexicana (NOM)/RCM/UKCA
Design (Product colour)
Black
Power (AC input frequency)
50/60 Hz
Power (AC input voltage)
100 - 240 V
Design (Cooling type)
Active
Design (Number of fans)
1 fan(s)
Power (Input current)
13 A
Design (Fan diameter)
135 mm
Power (Max output current (+12V))
83.5 A
Power (Max output current (+3.3V))
22 A
Power (Max output current (+5V))
22 A
Power (Max output current (+5Vsb))
3 A
Power (Max output current (-12V))
0.3 A
Power (Power protection features)
Over current/Over power/Over voltage/Overheating/Short circuit/Surge & inrush protection (SIP)/Under voltage
Power (Total power)
1000 W
Ports & interfaces (ATX Power connector (24-pin))
Yes
Ports & interfaces (Cabling type)
Fully-Modular
Ports & interfaces (Motherboard power connector)
24-pin ATX
Ports & interfaces (Number of SATA power connectors)
9
Ports & interfaces (Peripheral (Molex) power connectors (4-pin))
3
Performance (80 PLUS certification)
80 PLUS Gold
Performance (Mean time between failures (MTBF))
100000 h
Performance (Power supply unit (PSU) form factor)
ATX
Performance (Purpose)
PC
Performance (ATX version)
3.0
Ports & interfaces (PCI Express power connectors (6+2 pin))
8
Performance (Bearing technology)
FDB
Performance (EPS version)
2.92
Ports & interfaces (EPS power connector (8-pin))
Yes
Power (Power factor)
0.99
Ports & interfaces (ATX power connector (12+4 pin))
