32 GB | USB Type-A | USB version 3.2 Gen 1 (3.1 Gen 1) | Read speed 145 MB/s | Write speed 115 MB/s | Compatible operating systems Microsoft Windows, macOS, Linux, Chrome OS, Android | Form factor Sleeve | Colour Blue | Protection features Waterproof,Dust resistant | IP code IP68 | Hardware encryption Yes | Width 20.1 mm | Depth 80 mm | Height 10.6 mm | Weight 25 g | Operating temperature (T-T) 0 - 50 °C

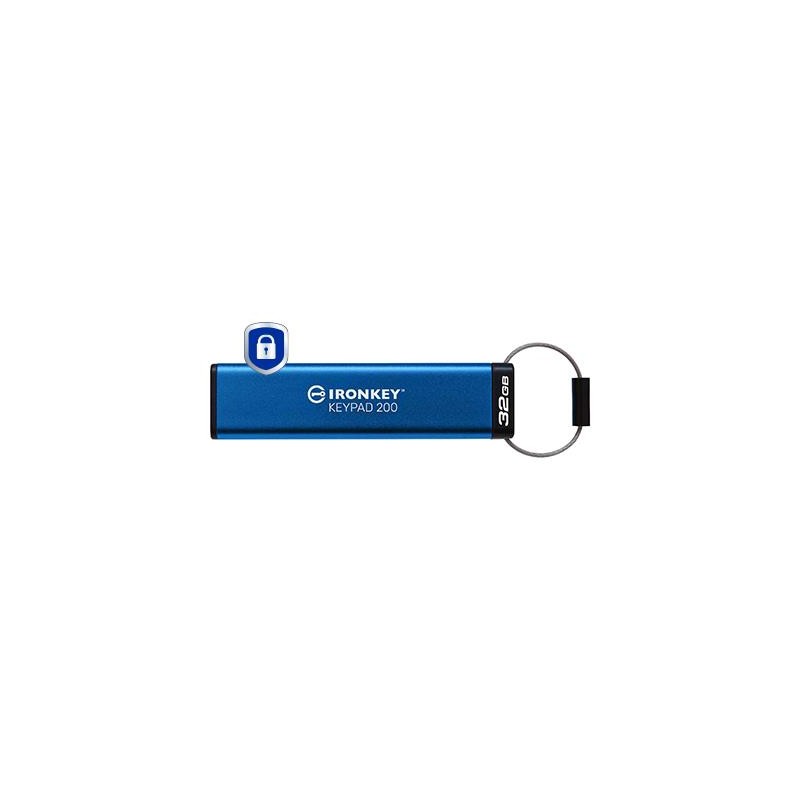

FIPS 140-3 Level 3 (Pending) with XTS-AES 256-bit Hardware Encryption The Kingston IronKey™ Keypad 200 series are OS-independent hardware-encrypted USB Type-A and USB Type-C®* drives with an alphanumeric keypad for easy-to-use PIN access.
The KP200 incorporates XTS-AES 256-bit hardware-based encryption. It is also FIPS 140-3 Level 3 (pending) certified for military-grade security with enhancements that further elevate the bar for data protection. Its circuitry is covered by a layer of special epoxy that makes it virtually impossible to remove components without damaging them; this tough epoxy stops attacks against the semiconductor components. The drive is designed to be tamper evident to alert owners. It also incorporates brute force password attack protection, and BadUSB protection with digitally signed firmware. The alphanumeric keypad is coated with a layer of polymer that protects the keys and hides key usage through analysis of fingerprints on the keys.
Fast dual-channel performance is offered on KP200 drives with 512GB and on KP200C drives with 64GB-512GB capacities.
The KP200 series utilises a built-in rechargeable battery that can be used to unlock the drive first without using any software, and then plug it into any device that supports USB Type-A or USB Type-C mass storage device. This gives users the most flexibility across different platform types and operating systems.
With the Multi-PIN option (Admin/User), the keypad can be used to set up an easy-to-remember but hard-to guess alphanumeric PIN for the Admin or User accounts. Admin can restore a User PIN and provide access to the drive should the User PIN be forgotten, or if the drive is locked after reaching the maximum of 10 User login attempts. With both Admin and User PINs enabled, KP200 will lock the User PIN after 10 failed login attempts; if the Admin PIN is entered incorrectly 10 times in a row, brute force attack protection will crypto-erase the drive, destroy the data forever, and reset it.
The drive also provides two levels of Read-Only (or Write-Protect) modes – a Global mode that can be set by Admin, and a session-only mode that can be set by User. Read-Only modes can protect the drive from malware on untrusted systems. In addition, Admin can load content and set Global Read-Only mode, so that User can access the data but not make any changes.
Fast dual-channel performance is offered on KP200 drives with 512GB and on KP200C drives with 64GB-512GB capacities.
FIPS 140-3 Level 3 (Pending) certified KP200 now meets the new FIPS 140-3 Level 3 military-grade security specifications published by NIST. This is an enhanced version of the FIPS 140-2 specifications that further enhances the drive’s security capabilities and tamper resistance. It includes XTS-AES 256-bit encryption along with brute force and [BadUSB] attack protection with digitally signed firmware. Its circuitry is covered by a layer of special epoxy that makes it virtually impossible to remove components without damaging them; this tough epoxy stops attacks against the semiconductor components.
OS and device independent With KP200 utilising a rechargeable battery, the keypad can be used to unlock the drive without using any software, then plug it into any system that supports USB Type-A or USB Type-C mass storage device. This gives users the most flexibility across different platform types and operating systems.
Multi-PIN option Users have the option to set up a User or an Admin/User mode. Admin can be used to restore a User PIN and provide access to the drive should User PIN be forgotten or if the drive is locked after reaching the maximum of 10 User login attempts.
Global and Session Read-Only (write protect) modes Both Admin and User can set a session-based Read-Only mode to protect the drive from malware on untrusted systems. Admin can also set a Global Read-Only mode that sets the drive in Read-Only mode until reset.
FIPS 140-3 Level 3 (Pending) certified
OS/device independent
Multi-PIN (Admin and User) option
Global or session read-only option
Kingston® IronKey™ Keypad 200 incorporates DataLock® Secured Technology licensed from ClevX, LLC. www.clevx.com/patents * USB Type-C® and USB-C® are registered trademarks of USB Implementers Forum. ** Some of the listed capacity on a flash storage device is used for formatting and other functions and is thus not available for data storage. As such, the actual available capacity for data storage is less than what is listed on the products. For more information, go to Kingston’s Flash Memory Guide. *** Speed may vary due to host hardware, software and usage. **** Product must be clean and dry before use. ***** Compatible systems.
256 GB | USB Type-A | USB version 3.2 Gen 1 (3.1 Gen 1) | Compatible operating systems Microsoft Windows 7/8/8.1/10, Mac OS 10.x. | Form factor Cap | Colour Silver | Housing material Aluminium | Width 58 mm | Depth 7 mm | Height 17 mm | Weight 6 g
1 TB | USB Type-A | USB version 3.2 Gen 2 (3.1 Gen 2) | Read speed 1000 MB/s | Write speed 900 MB/s | Form factor Capless | Colour Black | Width 67 mm | Depth 21 mm | Height 12 mm | Weight 24 g | Operating temperature (T-T) 0 - 45 °C
128 GB | USB Type-A | USB version 3.2 Gen 1 (3.1 Gen 1) | Read speed 150 MB/s | Write speed 150 MB/s | Form factor Capless | Colour Black,Silver | Width 13.21 mm | Depth 42.42 mm | Height 6.6 mm | Operating temperature (T-T) 0 - 45 °C
32 GB | USB Type-A | USB version 2.0 | Read speed 28 MB/s | Write speed 6.5 MB/s | Compatible operating systems Microsoft Windows 8 or higherMacOS 10.x or higher | Form factor Cap | Colour Transparent | Housing material Plastic | Width 65 mm | Depth 9 mm | Height 19 mm | Weight 6 g
32 GB | USB Type-A | USB version 3.2 Gen 1 (3.1 Gen 1) | Read speed 150 MB/s | Form factor Capless | Colour Blue,Silver | Width 13.21 mm | Depth 42.42 mm | Height 6.6 mm | Operating temperature (T-T) 0 - 45 °C
128 GB | USB Type-A | USB version 3.2 Gen 1 (3.1 Gen 1) | Form factor Capless | Colour Black | Width 15.9 mm | Depth 19.1 mm | Height 8.8 mm | Weight 1.28 g | Operating temperature (T-T) 0 - 35 °C
32 GB | USB Type-A | USB version 3.2 Gen 1 (3.1 Gen 1) | Form factor Slide | Colour Green,White | Width 19.5 mm | Depth 55 mm | Height 10.2 mm | Weight 7.9 g
32 GB | USB Type-A | USB version 3.2 Gen 1 (3.1 Gen 1) | Read speed 100 MB/s | Form factor Cap | Colour Black | Housing material Plastic | Width 19 mm | Depth 7 mm | Height 15 mm | Weight 3 g
128 GB | USB Type-A | USB version 3.2 Gen 1 (3.1 Gen 1) | Form factor Slide | Colour Green,White | Width 19.5 mm | Depth 55 mm | Height 10.2 mm | Weight 7.9 g
64 GB | USB Type-A | USB version 3.2 Gen 1 (3.1 Gen 1) | Read speed 100 MB/s | Compatible operating systems Windows Vista, 7, 8, 8.1, 10, 11, Mac OS X 10.6 or later, Linux Kernel 2.6 or later | Form factor Capless | Colour Black | Housing material Metal | Protection features Dust resistant,Shock resistant,Water resistant | Width 12 mm | Depth 39.1 mm |...
512 GB | USB Type-A | USB version 3.2 Gen 2 (3.1 Gen 2) | Read speed 1000 MB/s | Write speed 900 MB/s | Form factor Capless | Colour Black | Width 67 mm | Depth 21 mm | Height 12 mm | Weight 24 g | Operating temperature (T-T) 0 - 45 °C
512 GB | USB Type-A | USB version 3.2 Gen 1 (3.1 Gen 1) | Read speed 400 MB/s | Write speed 110 MB/s | Form factor Capless | Colour Grey | Protection features Magnet proof,Shock resistant,Temperature proof,Waterproof,X-ray proof | Width 15.46 mm | Depth 12.02 mm | Height 40.05 mm | Weight 10.9 g | Operating temperature (T-T) 0 - 60 °C
512 GB | USB Type-C | USB version 3.2 Gen 1 (3.1 Gen 1) | Form factor Slide | Colour Black,Green | Width 21.2 mm | Depth 10.6 mm | Height 63.6 mm | Weight 9 g
64 GB | USB Type-A / Lightning | USB version 3.2 Gen 2 (3.1 Gen 2) | Form factor Swivel | Colour Black,Silver | Housing material Metal,Plastic | Protection features Scratch resistant | Width 53 mm | Depth 12 mm | Height 12.5 mm
32 GB | USB Type-A | USB version 2.0 | Form factor Slide | Colour Black,Red | Width 20.8 mm | Depth 11.2 mm | Height 60.2 mm | Weight 6.8 g | Operating temperature (T-T) 0 - 45 °C
32 GB | USB Type-A | USB version 3.2 Gen 1 (3.1 Gen 1) | Read speed 145 MB/s | Write speed 115 MB/s | Compatible operating systems Microsoft Windows, macOS, Linux, Chrome OS, Android | Form factor Sleeve | Colour Blue | Protection features Waterproof,Dust resistant | IP code IP68 | Hardware encryption Yes | Width 20.1 mm | Depth 80 mm | Height 10.6 mm | Weight 25 g | Operating temperature (T-T) 0 - 50 °C
