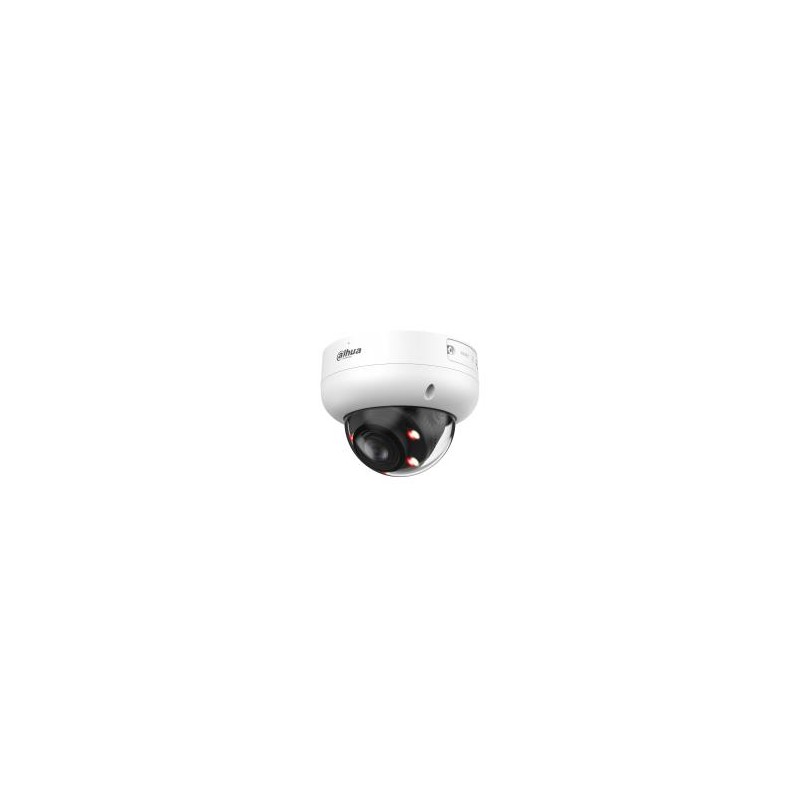

NET CAMERA 8MP DOME/HDBW3849R-ZAS-IL-27135 DAHUA

Lisainfo

Müüja koduleht

https://www.dahuasecurity.com/

Garantija

36

Mudel

IPC-HDBW3649R-ZAS-IL

Category Code

FNC

Unit Box Height

0.14

Unit Box Length

0.14

Unit Box Width

0.15

Units per Shipping Box

1

Unit Calculated Volume

0.00294 cubm

Unit Calculated Weight

0.75 kg

Summary

Dahua Technology WizSense DH-IPC-HDBW3849R-ZAS-IL-27135. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Dome. Minimum illumination: 0.007 lx, Ang

Weight & dimensions (Height)

94 mm

Weight & dimensions (Weight)

560 g

Packaging data (Package weight)

740 g

Performance (Certification)

CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

Operational conditions (Operating temperature (T-T))

-30 - 60 C

Operational conditions (Storage temperature (T-T))

-40 - 60 C

System requirements (Mobile operating systems supported)

Android/iOS

Weight & dimensions (Diameter)

122 mm

Audio (Audio output channels)

1.0 channels

Network (Bluetooth)

No

Network (Ethernet LAN)

Yes

Network (Wi-Fi)

No

Design (Product colour)

White

Power (Power consumption (max))

9 W

Ports & interfaces (Ethernet LAN (RJ-45) ports)

1

Design (Housing material)

Metal

Management features (Firmware upgradeable)

Yes

Design (Form factor)

Dome

Camera (Camera shutter speed)

1/3 s-1/100,000 s

Storage (Compatible memory cards)

MicroSD (TransFlash)

Storage (Maximum memory card size)

512 GB

Power (Power source type)

DC,PoE

Storage (Card reader integrated)

Yes

Performance (Wide Dynamic Range (WDR))

Yes

Audio (Built-in microphone)

Yes

Security (Password protection)

Yes

Storage (RAM capacity)

1024 MB

Network (Ethernet interface type)

Fast Ethernet

Design (IK code)

IK10

Design (International Protection (IP) code)

IP67

Design (Mounting type)

Ceiling

Performance (Connectivity technology)

Wired

Performance (Day/night mode)

Yes

Performance (Placement supported)

Indoor & outdoor

Performance (Type)

IP security camera

Camera (Lens viewing angle, diagonal)

138 - 36

Camera (Lens viewing angle, horizontal)

114 - 32

Camera (Lens viewing angle, vertical)

58 - 17

Image sensor (Optical sensor size)

1/2.7 "

Lens system (Number of lenses)

1

Night vision (LED type)

IR/White

Night vision (Night vision)

Yes

Night vision (Night vision distance)

50 m

Video (Frame rate)

30 fps

Video (Maximum resolution)

3840 x 2160 pixels

Video (Noise reduction)

Yes

Video (Noise reduction technology)

3D noise reduction

Video (Total megapixels)

8 MP

Power (DC output voltage)

12

Packaging content (Number of cameras)

1

Image sensor (Number of effective pixels (H x V))

3840 x 2160 pixels

Image sensor (Sensor type)

CMOS

Lens system (Focal length range)

2.7 - 13.5 mm

Security (Alarm input channels)

1

Security (Alarm output channels)

1

Audio (Audio input channels)

1.0 channels

Camera (Minimum illumination)

0.007 lx

Video (Back Light Compensation (BLC))

Yes

Video (Highlight Compensation (HLC))

Yes

Camera (Adjustment shutter speed)

Auto/Manual

Image sensor (Progressive scan)

Yes

Lens system (Fixed focus)

Yes

Lens system (Maximum aperture number)

1

Video (Gain control type)

Auto/Manual

Video (Region of Interest (ROI) encoding)

Yes

Security (Video motion detection)

Yes

Performance (Built-in light)

Yes

Video (Video compression formats)

H.264/H.265

Image sensor (Number of sensors)

1

Camera (Angle of rotation)

355

Camera (Pan range)

0 - 360

Camera (Tilt angle range)

0 - 80

Camera (White balance)

Auto/Custom modes/Lamp/Manual/Natural/Outdoor

Video (Bit rate control)

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Video (Supported graphics resolutions)

1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2048 x 1536 (QXGA)/2304 x 1296/2592 x 1944/2688 x 1520/3072 x 1728/3072 x 2048/352 x 240/352 x 288/3840 x 2160/640 x 480 (VGA)/704 x 480/704 x 576

Video (Video streaming)

Yes

Audio (Audio formats supported)

G.711/G.723/G.726/PCM

Audio (Signal-to-Noise Ratio (SNR))

56 dB

Network (Supported network protocols)

IPv4 IPv6 HTTP TCP UDP ARP RTP RTSP RTCP RTMP SMTP FTP SFTP DHCP DNS DDNS QoS UPnP NTP Multicast ICMP IGMP NFS SAMBA PPPoE SNMP P2P

Storage (ROM capacity)

256 MB

Management features (Management software)

Smart PSS DSS DMSS

Video (Smart IR)

Yes

Lens system (Closest focusing distance)

1.5 m

Night vision (Number of illumination LEDs)

2

Network (Number of users)

20 user(s)

Security (Mirror)

Yes

Power (Power consumption (Power over Ethernet (PoE)))

3.9 W

Performance (Dynamic range)

120 dB

Lens system (Detect distance (tele))

257.4 m

Lens system (Detect distance (wide))

89.9 m

Lens system (Identify distance (tele))

25.7 m

Lens system (Identify distance (wide))

19 m

Lens system (Observe distance (tele))

103 m

Lens system (Observe distance (wide))

36 m

Lens system (Recognize distance (tele))

51.5 m

Lens system (Recognize distance (wide))

18 m

Audio (Bit rate range)

3 - 8192 Kbit/s

Network (Networking standards)

IEEE 802.1x/IEEE 802.3af

Security (Digest authentication)

Yes

Camera (Number of Privacy masking areas)

8

Lens system (Auto focus)

Yes

Panoramic camera (Signal-to-Noise Ratio (SNR) (panoramic camera))

56 dB

Lens system (Focus)

Motorized/Manual

Network (User access level)

User

Camera (Vertical field of view (thermal module))

58

Eriviited

ean13

6939554925757

MPN

1441428
