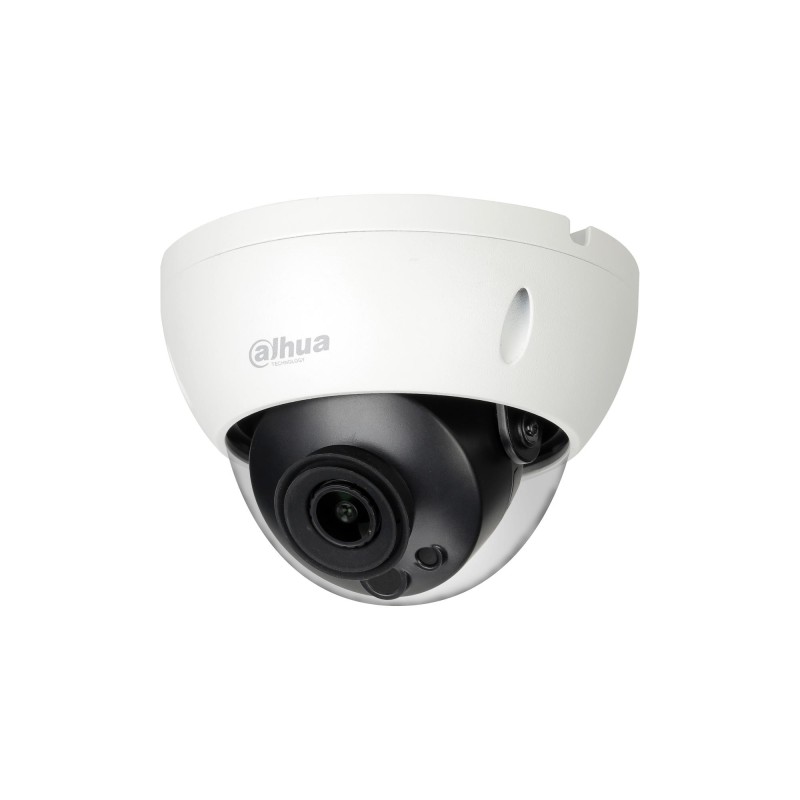

Valvekaamera 4MP DOME IArvuti-HDBW5449RASENI0360B DAHUA

Lisainfo

Müüja koduleht

https://www.dahuasecurity.com/ceen/products/productDetail/41173

Garantija

36

Category Code

FNC

Unit Box Height

0.135

Unit Box Length

0.158

Unit Box Width

0.155

Units per Shipping Box

1

Unit Calculated Volume

0.003306 cubm

Unit Calculated Weight

0.63 kg

Summary

Dahua Technology IPC -HDBW5449R-ASE-NI-0360B. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Dome. Minimum illumination: 0.001 lx, Angle of rotat

Weight & dimensions (Width)

122 mm

Weight & dimensions (Depth)

122 mm

Weight & dimensions (Height)

88.9 mm

Weight & dimensions (Weight)

460 g

Packaging data (Package weight)

620 g

Performance (Certification)

CE-LVD: EN60950-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

Operational conditions (Operating temperature (T-T))

-30 - 60 C

Operational conditions (Storage temperature (T-T))

-30 - 60 C

System requirements (Mobile operating systems supported)

Android/iOS

Weight & dimensions (Diameter)

122 mm

Audio (Audio output channels)

1.0 channels

Network (Ethernet LAN)

Yes

Design (Product colour)

White

Power (Power consumption (typical))

4.4 W

Ports & interfaces (Ethernet LAN (RJ-45) ports)

1

Design (Housing material)

Metal

Operational conditions (Operating relative humidity (H-H))

0 - 95 %

Design (Form factor)

Dome

Camera (Camera shutter speed)

1/3 - 1/100000 s

Storage (Compatible memory cards)

MicroSD (TransFlash)

Storage (Maximum memory card size)

256 GB

Power (Power source type)

DC,PoE

Sustainability (Compliance certificates)

CE/Federal Communications Commission (FCC)

Performance (Wide Dynamic Range (WDR))

Yes

Audio (Built-in microphone)

Yes

Design (IK code)

IK10

Design (International Protection (IP) code)

IP67

Design (Mounting type)

Ceiling

Performance (Connectivity technology)

Wired

Performance (Day/night mode)

Yes

Performance (Placement supported)

Indoor & outdoor

Performance (Type)

IP security camera

Camera (Lens viewing angle, horizontal)

93

Camera (Lens viewing angle, vertical)

50

Image sensor (Optical sensor size)

1/1.8 "

Lens system (Number of lenses)

1

Video (Frame rate)

60 fps

Video (Maximum resolution)

2688 x 1520 pixels

Video (Noise reduction)

Yes

Video (Noise reduction technology)

3D noise reduction

Video (Privacy masking)

Yes

Video (Total megapixels)

4 MP

Storage (Built-in HDD)

No

Security (Intelligent Video Surveillance (IVS) system features)

Abandoned object/Missing object

Power (DC output voltage)

12

Packaging content (Number of cameras)

1

Image sensor (Number of effective pixels (H x V))

2688 x 1520 pixels

Image sensor (Sensor type)

CMOS

Security (Alarm input channels)

1

Security (Alarm output channels)

1

Lens system (Fixed focal length)

3.6 mm

Audio (Audio input channels)

1.0 channels

Performance (Alarm input/output)

Yes

Camera (Minimum illumination)

0.001 lx

Video (Back Light Compensation (BLC))

Yes

Video (Highlight Compensation (HLC))

Yes

Camera (Adjustment shutter speed)

Auto/Manual

Image sensor (Progressive scan)

Yes

Lens system (Maximum aperture number)

1

Video (Flip & mirror)

Yes

Video (Gain control type)

Auto/Manual

Camera (Camera shutter type)

Electronic

Video (Region of Interest (ROI) encoding)

Yes

Video (Video compression formats)

H.264/H.264B/H.264H/H.265/M-JPEG

Image sensor (Number of sensors)

1

Camera (Angle of rotation)

355

Camera (Pan range)

0 - 355

Camera (Tilt angle range)

0 - 75

Camera (White balance)

Auto/Manual/Outdoor

Video (Bit rate control)

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Video (Supported graphics resolutions)

1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2304 x 1296/2560 x 1440/2688 x 1520/352 x 240/352 x 288/640 x 480 (VGA)/704 x 480/704 x 576

Video (Video formats supported)

H.264/H.265

Video (Video streaming)

Yes

Audio (Audio formats supported)

AAC/G.711/G.723/G.726

Network (Streaming method)

Multicast/Unicast

Network (Supported network protocols)

IPv4 IPv6 HTTP HTTPS TCP UDP ARP RTP RTSP RTCP RTMP SMTP FTP SFTP DHCP DNS DDNS QoS UPnP NTP Multicast ICMP IGMP NFS SAMBA PPPoE 802.1x SNMP

Storage (Internal memory)

1000 MB

Storage (ROM capacity)

128 MB

Management features (Management software)

Smart PSS DSS DMSS

Management features (Web browser)

Yes

Lens system (Closest focusing distance)

2 m

Network (Number of users)

20 user(s)

Security (Mirror)

Yes

Performance (Dynamic range)

140 dB

Lens system (Detect distance)

70 m

Lens system (Identify distance)

7 m

Lens system (Observe distance)

28 m

Lens system (Recognize distance)

14 m

Video (Bit rate)

H.264: 32 Kbps-8192 Kbps, H.265: 19 Kbps-8192 Kbps

Video (Supported video modes)

1080p/720p

Network (Networking standards)

IEEE 802.3af

Eriviited

ean13

6939554975462

MPN

1300034
