Kirjeldus

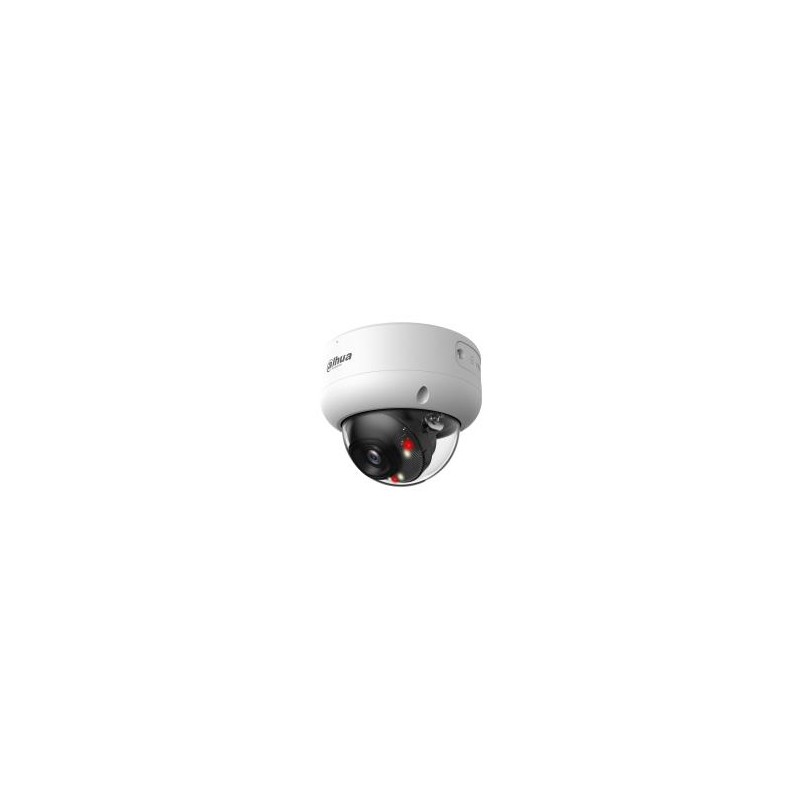

8MP Smart Dual Light Fixed-focal Dome WizSense Network Camera
8-MP 1/2.7" CMOS image sensor, low luminance, and high definition image Outputs max. 8 MP (3840 2160)@25/30 fps H.265 codec, high compression rate, ultra-low bit rate Built-in IR LED and warm light , the max. IR illumination distance is 30 m and the max. warm light distance is 30 m ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human), stay detection, loitering detection; face detection (full image) Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 512 G Micro SD card; built-in Mic 12 VDC/PoE power supply IP67 and IK10 protection SMD 4.0 Supports AI SSA SMD area can be set in warm light areas that support triggering alarms
Üldine informatsioon
Tootekood
DH-IPC-HDBW3849E-AS-IL-0280B
Tarneaeg 2-5 tööpäeva.
6 Tooted
Lisainfo
Müüja koduleht
https://www.dahuasecurity.com/products/All-Products/Network-Cameras/WizSense-Series/3-Series/Smart-Dual-Light/IPC-HDBW3849E-AS-IL
Garantija
36
Category Code
FNC
Unit Box Height
0.135
Unit Box Length
0.135
Unit Box Width
0.125
Units per Shipping Box
1
Unit Calculated Volume
0.002278 cubm
Unit Calculated Weight
0.724 kg
Summary
Dahua Technology WizSense IPC-HDBW3849EP-AS-IL-0280B. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Dome. Minimum illumination: 0.007 lx, Angle
Weight & dimensions (Width)
89.1 mm
Weight & dimensions (Height)
111.7 mm
Weight & dimensions (Weight)
528 g
Packaging data (Package weight)
690 g
Performance (Certification)
CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
Operational conditions (Operating temperature (T-T))
40 - 60 C
Operational conditions (Storage temperature (T-T))
40 - 60 C
System requirements (Mobile operating systems supported)
Android/iOS
Audio (Audio output channels)
1.0 channels
Network (Bluetooth)
No
Network (Ethernet LAN)
Yes
Network (Wi-Fi)
No
Design (Product colour)
White
Power (Power consumption (max))
6.2 W
Power (Power consumption (typical))
3.7 W
Ports & interfaces (Ethernet LAN (RJ-45) ports)
1
Design (Housing material)
Metal
Management features (Firmware upgradeable)
Yes
Packaging content (Manual)
Yes
Operational conditions (Operating relative humidity (H-H))
0 - 95 %
Design (Form factor)
Dome
Camera (Camera shutter speed)
1/3 s-1/100,000 s
Storage (Compatible memory cards)
MicroSD (TransFlash)
Storage (Maximum memory card size)
512 GB
Power (Power source type)
DC,PoE
Storage (Card reader integrated)
Yes
Performance (Wide Dynamic Range (WDR))
Yes
Audio (Built-in microphone)
Yes
Security (Password protection)
Yes
Storage (RAM capacity)
1024 MB
Network (Ethernet interface type)
Fast Ethernet
Design (IK code)
IK10
Design (International Protection (IP) code)
IP67
Design (Mounting type)
Ceiling
Performance (Connectivity technology)
Wired
Performance (Day/night mode)
Yes
Performance (Placement supported)
Indoor & outdoor
Performance (Type)
IP security camera
Camera (Lens viewing angle, diagonal)
132
Camera (Lens viewing angle, horizontal)
110
Camera (Lens viewing angle, vertical)
58
Image sensor (Optical sensor size)
1/2.7 "
Lens system (Number of lenses)
1
Night vision (LED type)
IR
Night vision (Night vision)
Yes
Night vision (Night vision distance)
50 m
Video (Frame rate)
30 fps
Video (Maximum resolution)
3840 x 2160 pixels
Video (Noise reduction)
Yes
Video (Noise reduction technology)
3D noise reduction
Video (Total megapixels)
8 MP
Power (DC output voltage)
12
Packaging content (Number of cameras)
1
Image sensor (Number of effective pixels (H x V))
3840 x 2160 pixels
Image sensor (Sensor type)
CMOS
Lens system (Focal length range)
2.8 - 3.6 mm
Security (Alarm input channels)
1
Security (Alarm output channels)
1
Audio (Audio input channels)
1.0 channels
Camera (Minimum illumination)
0.007 lx
Video (Back Light Compensation (BLC))
Yes
Video (Highlight Compensation (HLC))
Yes
Camera (Adjustment shutter speed)
Auto/Manual
Image sensor (Progressive scan)
Yes
Lens system (Fixed focus)
Yes
Lens system (Maximum aperture number)
1
Video (Gain control type)
Auto/Manual
Video (Region of Interest (ROI) encoding)
Yes
Security (Video motion detection)
Yes
Performance (Built-in light)
Yes
Video (Video compression formats)
H.264/H.265
Image sensor (Number of sensors)
1
Camera (Angle of rotation)
355
Camera (Pan range)
0 - 360
Camera (Tilt angle range)
0 - 75
Camera (White balance)
Auto/Custom modes/Lamp/Manual/Natural/Outdoor
Video (Bit rate control)
Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Video (Supported graphics resolutions)
1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2048 x 1536 (QXGA)/2304 x 1296/2592 x 1944/2688 x 1520/3072 x 1728/3072 x 2048/352 x 240/352 x 288/3840 x 2160/640 x 480 (VGA)/704 x 480/704 x 576
Video (Video streaming)
Yes
Audio (Audio formats supported)
G.711/G.723/G.726/PCM
Audio (Signal-to-Noise Ratio (SNR))
56 dB
Network (Supported network protocols)
IPv4 IPv6 HTTP TCP UDP ARP RTP RTSP RTCP RTMP SMTP FTP SFTP DHCP DNS DDNS QoS UPnP NTP Multicast ICMP IGMP NFS SAMBA PPPoE SNMP P2P
Storage (ROM capacity)
256 MB
Management features (Management software)
Smart PSS DSS DMSS
Video (Smart IR)
Yes
Lens system (Closest focusing distance)
1.5 m
Night vision (Number of illumination LEDs)
2
Network (Number of users)
20 user(s)
Security (Mirror)
Yes
Power (Power consumption (Power over Ethernet (PoE)))
8.2 W
Performance (Dynamic range)
120 dB
Lens system (Detect distance (tele))
257.4 m
Lens system (Detect distance (wide))
89.9 m
Lens system (Identify distance (tele))
25.7 m
Lens system (Identify distance (wide))
19 m
Lens system (Observe distance (tele))
103 m
Lens system (Observe distance (wide))
36 m
Lens system (Recognize distance (tele))
51.5 m
Lens system (Recognize distance (wide))
18 m
Audio (Bit rate range)
3 - 8192 Kbit/s
Network (Networking standards)
IEEE 802.1x/IEEE 802.3af
Security (Digest authentication)
Yes
Camera (Number of Privacy masking areas)
8
Lens system (Auto focus)
Yes
Panoramic camera (Signal-to-Noise Ratio (SNR) (panoramic camera))
56 dB
Lens system (Focus)
Motorized/Manual
Network (User access level)
User
Eriviited
ean13
6939554920189
MPN
1441420
