Kirjeldus

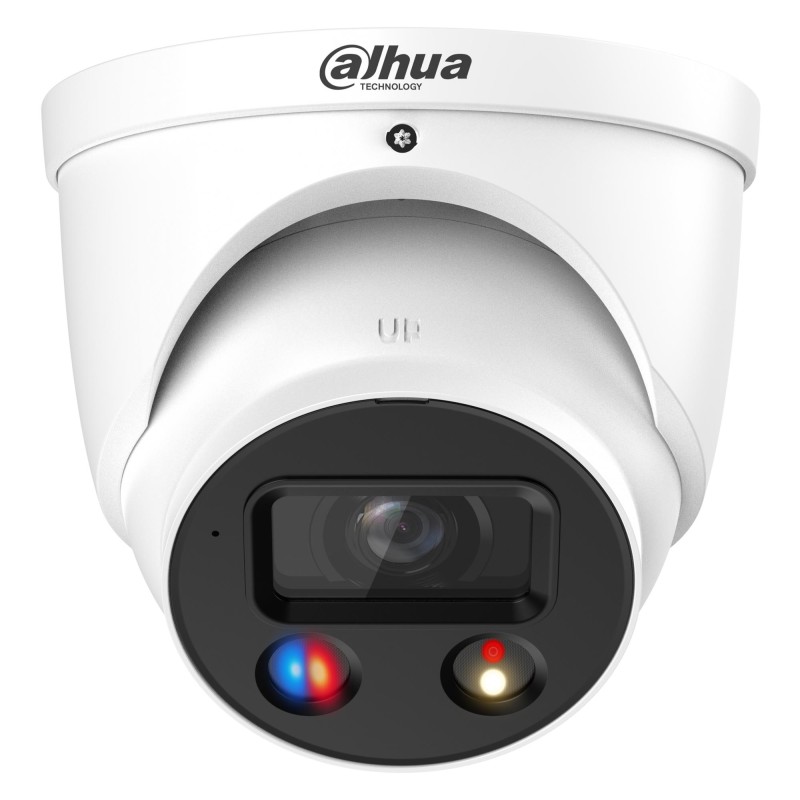

8-MP 1/2.7" CMOS image sensor, low luminance, and high definition image
Outputs max. 8 MP (3840 ×2160)@25/30 fps
H.265 codec, high compression rate, ultra-low bit rate
Built-in warm light and IR LED; the max. IR illumination distance is 30 m and warm light distance is 30 m
ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human)
Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection
Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; buit-in dual Mic; 1-ch speaker; support two-way talk
12 VDC/PoE power supply
IP67 protection
Sound and light alarm (red and blue lights)
SMD 4.0
Supports AI SSA and one-tap arming and disarming
SMD area can be set in warm light areas that support triggering alarms
Üldine informatsioon
Tootekood
IPC-HDW3849H-ASPV0280B-S5
Tarneaeg 2-5 tööpäeva.
4 Tooted
Lisainfo
Müüja koduleht
https://www.dahuasecurity.com/products/All-Products/Network-Cameras/WizSense-Series/3-Series/TiOC/IPC-HDW3849H-AS-PV S5
Garantija
36
Mudel
IPC-HDW3849H-ASPV0280B-S5
Category Code
FNC
Unit Box Height
0.135
Unit Box Length
0.155
Unit Box Width
0.155
Units per Shipping Box
1
Unit Calculated Volume
0.003243 cubm
Unit Calculated Weight
0.936 kg
Summary
Dahua Technology IPC-HDW3849H-AS-PV. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.0004 lx, Angle of rot
Weight & dimensions (Height)
110.9 mm
Weight & dimensions (Weight)
750 g
Packaging data (Package weight)
920 g
Performance (Certification)
CE-LVD: EN62368-1, CE-EMC, FCC
Operational conditions (Operating temperature (T-T))
-40 - 60 C
System requirements (Mobile operating systems supported)
Android/iOS
Weight & dimensions (Diameter)
122 mm
Audio (Audio output channels)
1.0 channels
Network (Bluetooth)
No
Network (Ethernet LAN)
Yes
Network (Wi-Fi)
No
Design (Product colour)
White
Power (Power consumption (max))
8.6 W
Power (Power consumption (typical))
4.5 W
Ports & interfaces (Ethernet LAN (RJ-45) ports)
1
Design (Housing material)
Metal
Packaging content (Manual)
Yes
Operational conditions (Operating relative humidity (H-H))
0 - 95 %
Ports & interfaces (DC-in jack)
Yes
Design (Form factor)
Dome
Camera (Camera shutter speed)
1/3 - 1/100000 s
Storage (Compatible memory cards)
MicroSD (TransFlash)
Storage (Maximum memory card size)
2 GB
Power (Power source type)
DC,PoE
Storage (Card reader integrated)
Yes
Performance (Wide Dynamic Range (WDR))
Yes
Audio (Built-in microphone)
Yes
Network (Ethernet interface type)
Fast Ethernet
Security (Security algorithms)
HTTPS
Design (International Protection (IP) code)
IP67
Design (Mounting type)
Ceiling
Performance (Connectivity technology)
Wired
Performance (Day/night mode)
Yes
Performance (Infrared (IR) cut-off filter)
Yes
Performance (Placement supported)
Indoor & outdoor
Performance (Type)
IP security camera
Camera (Camera pan control)
Yes
Camera (Camera tilt control)
Yes
Camera (Lens viewing angle, diagonal)
125
Camera (Lens viewing angle, horizontal)
106
Camera (Lens viewing angle, vertical)
55
Image sensor (Optical sensor size)
1/2.7 "
Lens system (Number of lenses)
1
Night vision (LED type)
IR
Night vision (Night vision)
Yes
Night vision (Night vision distance)
30 m
Video (Frame rate)
30 fps
Video (Maximum resolution)
3840 x 2160 pixels
Video (Noise reduction)
Yes
Video (Noise reduction technology)
3D noise reduction
Video (Privacy masking)
Yes
Video (Total megapixels)
8 MP
Storage (Built-in HDD)
No
Security (Intelligent Video Surveillance (IVS) system features)
Tripwire
Power (DC output voltage)
12
Packaging content (Number of cameras)
1
Image sensor (Sensor type)
CMOS
Lens system (Fixed focal length)
2.8 mm
Audio (Audio input channels)
1.0 channels
Performance (Alarm input/output)
Yes
Camera (Minimum illumination)
0.0004 lx
Video (Back Light Compensation (BLC))
Yes
Video (Highlight Compensation (HLC))
Yes
Camera (Adjustment shutter speed)
Auto/Manual
Image sensor (Progressive scan)
Yes
Lens system (Maximum aperture number)
1
Video (Gain control type)
Auto/Manual
Camera (Camera shutter type)
Electronic
Video (Region of Interest (ROI) encoding)
Yes
Security (Built-in siren)
Yes
Security (Video motion detection)
Yes
Video (Video compression formats)
H.264/H.265/M-JPEG
Image sensor (Number of sensors)
1
Camera (Angle of rotation)
360
Camera (Pan range)
0 - 360
Camera (Tilt angle range)
0 - 78
Camera (White balance)
Auto/Custom modes/Manual/Natural/Outdoor
Video (Bit rate control)
Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Video (Supported graphics resolutions)
1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2048 x 1536 (QXGA)/2304 x 1296/2592 x 1944/2688 x 1520/3072 x 1728/3072 x 2048/352 x 240/352 x 288/3840 x 2160/640 x 480 (VGA)/704 x 480/704 x 576
Video (Video formats supported)
H.264+/H.265+
Video (Video streaming)
Yes
Audio (Signal-to-Noise Ratio (SNR))
56 dB
Network (Quality of Service (QoS) support)
Yes
Network (Streaming method)
Multicast
Network (Supported network protocols)
IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP
Storage (ROM capacity)
256 MB
Management features (Management software)
Smart PSS, DSS, DMSS
Management features (Web browser)
Yes
Video (Smart IR)
Yes
Lens system (Closest focusing distance)
1.5 m
Night vision (Number of illumination LEDs)
1
Network (Number of users)
20 user(s)
Security (HTTPS encryption)
Yes
Security (Mirror)
Yes
Power (Power consumption (Power over Ethernet (PoE)))
5.8 W
Lens system (Detect distance (wide))
66 m
Lens system (Identify distance (wide))
6.6 m
Lens system (Observe distance (wide))
26.4 m
Lens system (Recognize distance (wide))
13.2 m
Video (Bit rate)
3 kbps - 16384 kbps
Video (Supported video modes)
1520p/1944p/2160p/240p/480p/576p/720p/960p
Audio (Voice codecs)
G.711a/G.711Mu/G.726/PCM
Security (IP address filtering)
Yes
Network (Networking standards)
IEEE 802.1x/IEEE 802.3af
Eriviited
ean13
6923172525765
MPN
1429339
