Kirjeldus
People & Vehicle Analytics Human & Vehicle Classification Efficient H.265+ Compression Technology
4MP Super-High Definition and 24h Full-Color People & Vehicle Analytics Human & Vehicle Classification Smart Detection Smart Video Enhancement Technology Active Defense and Two-Way Audio IP67 Waterproof H.265+ Compression Technology
Üldine informatsioon
Tootekood
VIGIC345(6MM)
Tarneaeg 2-5 tööpäeva.
2 Tooted
Lisainfo
Müüja koduleht
https://www.tp-link.com/en/business-networking/vigi-network-camera/vigi-c345/v1%20(2.8mm%20lens)/ highlights
Garantija
36
Mudel
VIGI C345(6MM)
Category Code
FNC
Unit Box Height
0.1
Unit Box Length
0.22
Unit Box Width
0.13
Units per Shipping Box
1
Unit Calculated Volume
0.00286 cubm
Unit Calculated Weight
0.79 kg
Summary

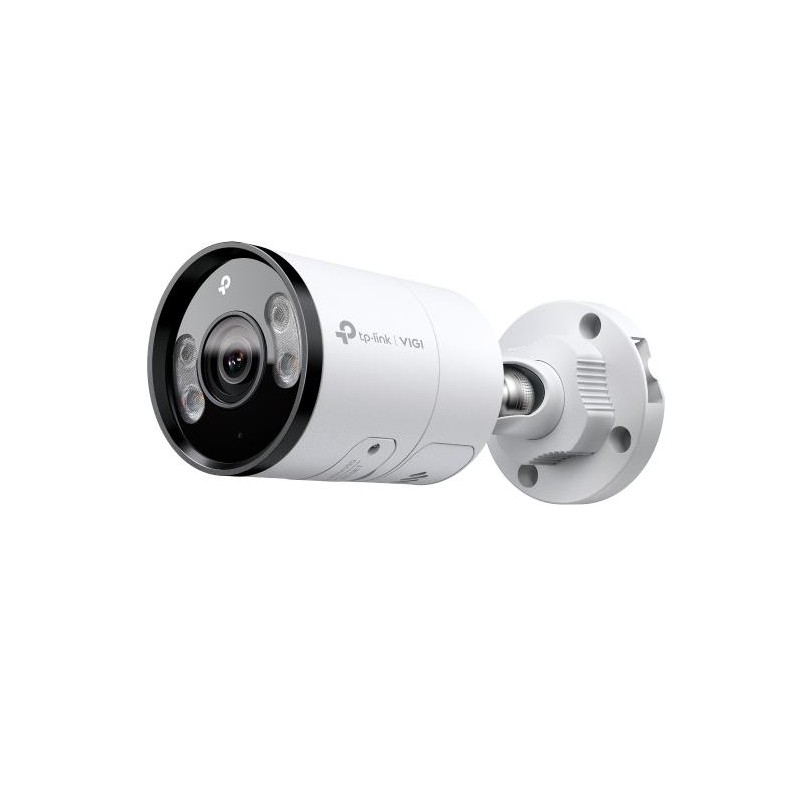

TP-Link VIGI C345. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Wall, Product colour: White, Form factor: Bullet. Minimum illumination: 0.005 lx, Angle of rotation: 360 , Lens viewing angle, horizo
Weight & dimensions (Width)
184 mm
Weight & dimensions (Depth)
74 mm
Weight & dimensions (Height)
74 mm
Weight & dimensions (Weight)
525 g
Performance (Certification)
CE, NTRA, VCCI, KC, BSMI, FCC, IC
Operational conditions (Operating temperature (T-T))
-30 - 60 C
Operational conditions (Storage relative humidity (H-H))
0 - 95 %
Operational conditions (Storage temperature (T-T))
-40 - 60 C
Network (Bluetooth)
No
Network (Ethernet LAN)
Yes
Network (Wi-Fi)
No
Design (Product colour)
White
Power (Power consumption (max))
9.7 W
Ports & interfaces (Ethernet LAN (RJ-45) ports)
1
Design (Housing material)
Metal
Operational conditions (Operating relative humidity (H-H))
0 - 95 %
Ports & interfaces (DC-in jack)
Yes
Design (Form factor)
Bullet
Camera (Camera shutter speed)
1/3 to 1/10000 s s
Audio (Audio system)
2-way
Storage (Compatible memory cards)
MicroSD (TransFlash)
Storage (Maximum memory card size)
512 GB
Power (Power source type)
DC,PoE
Storage (Card reader integrated)
Yes
Performance (Wide Dynamic Range (WDR))
Yes
Audio (Built-in speaker(s))
Yes
Audio (Built-in microphone)
Yes
Security (Password protection)
Yes
Network (Ethernet interface type)
Fast Ethernet
Design (International Protection (IP) code)
IP67
Design (Mounting type)
Wall
Performance (Connectivity technology)
Wired
Performance (Day/night mode)
Yes
Performance (Infrared (IR) cut-off filter)
Yes
Performance (Placement supported)
Outdoor
Performance (Type)
IP security camera
Camera (Lens viewing angle, diagonal)
60.8
Camera (Lens viewing angle, horizontal)
52.7
Camera (Lens viewing angle, vertical)
29
Image sensor (Optical sensor size)
1/2.7 "
Lens system (Number of lenses)
1
Night vision (LED type)
IR/White
Night vision (Night vision)
Yes
Night vision (Night vision distance)
30 m
Video (Frame rate)
30 fps
Video (Maximum resolution)
2688 x 1520 pixels
Video (Noise reduction)
Yes
Video (Noise reduction technology)
3D noise reduction
Video (Privacy masking)
Yes
Video (Total megapixels)
4 MP
Storage (Built-in HDD)
No
Management features (Reset button)
Yes
Power (DC output voltage)
12
Packaging content (Number of cameras)
1
Image sensor (Sensor type)
CMOS
Lens system (Fixed focal length)
6 mm
Camera (Minimum illumination)
0.005 lx
Video (Back Light Compensation (BLC))
Yes
Video (Highlight Compensation (HLC))
Yes
Image sensor (Progressive scan)
Yes
Lens system (Maximum aperture number)
1.6
Video (Region of Interest (ROI) encoding)
Yes
Security (Video motion detection)
Yes
Performance (Built-in light)
Yes
Video (Video compression formats)
H.264/H.264+/H.265/H.265+
Camera (Angle of rotation)
360
Camera (Pan range)
0 - 360
Camera (Tilt angle range)
0 - 90
Video (Bit rate control)
Constant Bit Rate (CBR),Variable Bit Rate (VBR)
Video (Supported graphics resolutions)
1280 x 720 (HD 720)/1920 x 1080 (HD 1080)/2048 x 1280/2304 x 1296/2560 x 1440
Audio (Signal-to-Noise Ratio (SNR))
52 dB
Network (Supported network protocols)
TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
Video (Smart IR)
Yes
Night vision (Number of illumination LEDs)
2
Security (Mirror)
Yes
Power (Power consumption (Power over Ethernet (PoE)))
10.7 W
Performance (Dynamic range)
120 dB
Lens system (Detect distance)
120 m
Lens system (Identify distance)
12 m
Lens system (Observe distance)
50 m
Lens system (Recognize distance)
24 m
Network (Live view)
Yes
Night vision (Infra-red wavelength)
850 nm
Security (IP address filtering)
Yes
Security (Digest authentication)
Yes
Camera (Number of Privacy masking areas)
4
Security (Human and vehicle targets classification)
Yes
Eriviited
ean13
4895252506969
MPN
1420729
