Kirjeldus
4-MP 1/2.9" CMOS image sensor, low luminance, and high definition image Outputs max. 4 MP (2688 × 1520)@20 fps, and supports 2560 × 1440@25/30 fps H.265 codec, high compression rate, ultra-low bit rate Built-in IR LED, and the max. illumination distance is 30 m ROI, SMART H.264 +/H.265+, flexible coding, applicable to various bandwidth and storage environments Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human) Supports max. 256 G Micro SD card; built in MIC 12 VDC/PoE power supply IP67 protection SMD Plus
Üldine informatsioon
Tootekood
DH-IPC-HFW2441S-S-0280B
Tarneaeg 2-5 tööpäeva.
8 Tooted
Lisainfo
Müüja koduleht
https://www.dahuasecurity.com/products/All-Products/Network-Cameras/WizSense-Series/2-Series/4MP/IPC-HFW2441S-S?gclid CjwKCAiA44OtBhAOEiwAj4gpOWiQg3WCbV6WQm8WH5TYkKJ0TkHpz03Js3WhY-DaAFiu0W_f46g5exoCvt4QAvD_BwE
Garantija
36
Mudel
DH-IPC-HFW2441S-S-0280B
Category Code
FNC
Unit Box Height
0.11
Unit Box Length
0.21
Unit Box Width
0.1
Units per Shipping Box
1
Unit Calculated Volume
0.00231 cubm
Unit Calculated Weight
0.589 kg
Summary

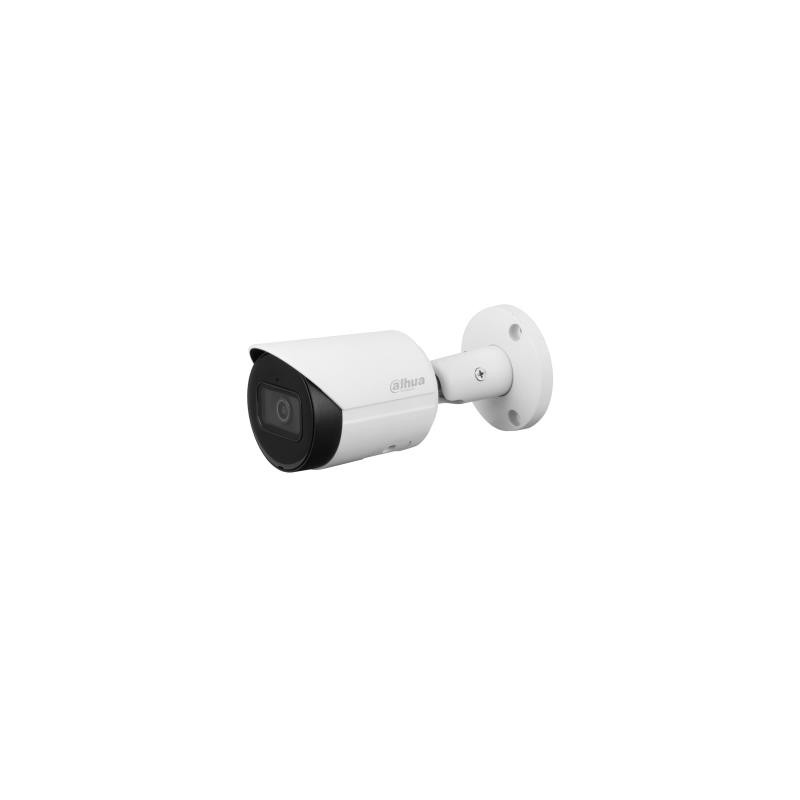

Dahua Technology WizSense DH-IPC-HFW2441S-S-0280B. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Wall, Product colour: White, Form factor: Bullet. Angle of rotation: 360 , Lens viewing angle, horizo
Weight & dimensions (Width)
166.2 mm
Weight & dimensions (Depth)
70 mm
Weight & dimensions (Height)
70 mm
Weight & dimensions (Weight)
480 g
Packaging data (Package weight)
590 g
Operational conditions (Operating temperature (T-T))
-40 - 60 C
Operational conditions (Storage temperature (T-T))
-40 - 60 C
Network (Bluetooth)
No
Network (Ethernet LAN)
Yes
Network (Wi-Fi)
No
Design (Product colour)
White
Power (Power consumption (max))
4.2 W
Power (Power consumption (typical))
2.5 W
Ports & interfaces (Ethernet LAN (RJ-45) ports)
1
Design (Housing material)
Metal
Operational conditions (Operating relative humidity (H-H))
0 - 95 %
Design (Form factor)
Bullet
Camera (Camera shutter speed)
1/3 - 1/100.000 s
Storage (Compatible memory cards)
MicroSD (TransFlash)
Storage (Maximum memory card size)
256 GB
Power (Power source type)
DC,PoE
Storage (Card reader integrated)
Yes
Performance (Wide Dynamic Range (WDR))
Yes
Audio (Built-in microphone)
Yes
Network (Ethernet interface type)
Fast Ethernet
Design (International Protection (IP) code)
IP67
Design (Mounting type)
Wall
Performance (Connectivity technology)
Wired
Performance (Day/night mode)
Yes
Performance (Placement supported)
Outdoor
Performance (Type)
IP security camera
Camera (Lens viewing angle, diagonal)
114
Camera (Lens viewing angle, horizontal)
95
Camera (Lens viewing angle, vertical)
52
Image sensor (Optical sensor size)
1/2.9 "
Night vision (LED type)
IR
Night vision (Night vision)
Yes
Night vision (Night vision distance)
30 m
Video (Maximum resolution)
2668 x 1520 pixels
Video (Noise reduction)
Yes
Video (Noise reduction technology)
3D noise reduction
Video (Privacy masking)
Yes
Video (Total megapixels)
4 MP
Storage (Built-in HDD)
No
Power (DC output voltage)
12
Packaging content (Number of cameras)
1
Image sensor (Sensor type)
CMOS
Lens system (Fixed focal length)
2.8 mm
Camera (Minimum illumination)
0 lx
Video (Back Light Compensation (BLC))
Yes
Video (Highlight Compensation (HLC))
Yes
Camera (Adjustment shutter speed)
Auto/Manual
Image sensor (Progressive scan)
Yes
Lens system (Fixed focus)
Yes
Video (Flip & mirror)
Yes
Video (Gain control type)
Auto/Manual
Camera (Camera shutter type)
Electronic
Video (Region of Interest (ROI) encoding)
Yes
Video (Video compression formats)
H.264/H.264B/H.264H/H.265/M-JPEG
Image sensor (Number of sensors)
1
Camera (Angle of rotation)
360
Camera (Pan range)
0 - 360
Camera (Tilt angle range)
0 - 90
Camera (White balance)
Auto/Manual/Natural/Street lamp
Video (Bit rate control)
Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Video (Supported graphics resolutions)
1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2304 x 1296/2560 x 1440/2688 x 1520/352 x 240/352 x 288/640 x 480 (VGA)/704 x 480/704 x 576
Video (Video streaming)
Yes
Audio (Signal-to-Noise Ratio (SNR))
56 dB
Network (Supported network protocols)
IPv4 IPv6 HTTP TCP UDP ARP RTP RTSP RTCP RTMP SMTP FTP SFTP DHCP DNS DDNS NTP Multicast ICMP IGMP
Storage (Internal memory)
128 MB
Storage (ROM capacity)
128 MB
Management features (Web browser)
Yes
Lens system (Closest focusing distance)
0.9 m
Night vision (Number of illumination LEDs)
1
Network (Number of users)
6 user(s)
Security (Mirror)
Yes
Power (Power consumption (Power over Ethernet (PoE)))
3.3 W
Performance (Dynamic range)
120 dB
Lens system (Detect distance)
63.6 m
Lens system (Identify distance)
6.4 m
Lens system (Observe distance)
25.4 m
Lens system (Recognize distance)
12.7 m
Video (Bit rate)
12 kbps-6144 kbps
Audio (Voice codecs)
G.711a/G.711Mu/G.726/PCM
Network (Live view)
Yes
Camera (Number of Privacy masking areas)
4
Lens system (Minimum aperture number)
1.6
