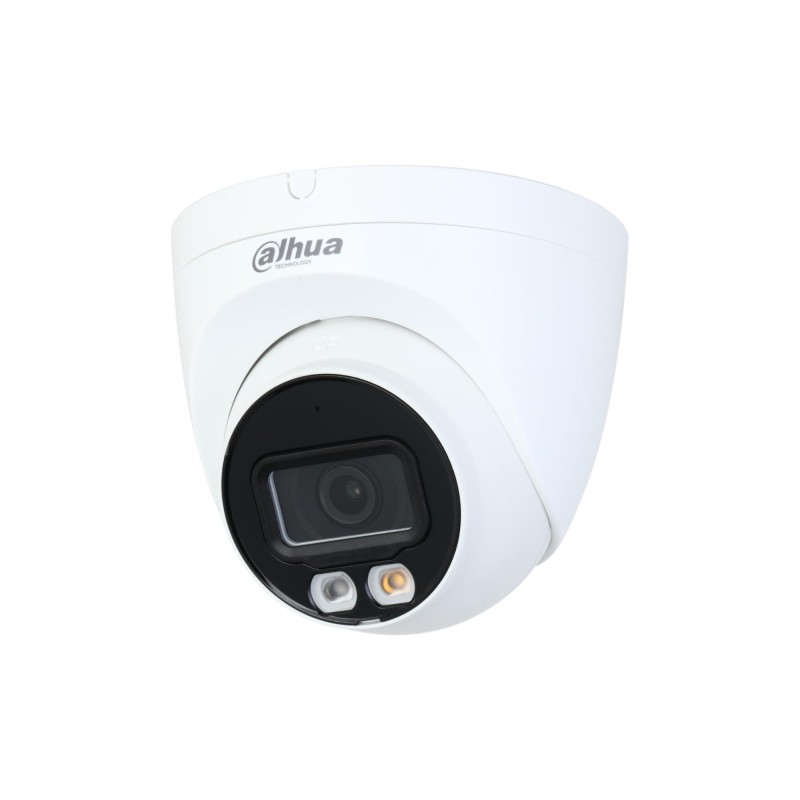

NET CAMERA 4MP EYEBALL/IPC-HDW2449T-S-IL-0280B DAHUA

Lisainfo

Müüja koduleht

https://www.dahuasecurity.com/products/All-Products/Network-Cameras/WizSense-Series/2-Series/Smart-Dual-Illuminators/IPC-HDW2449T-S-IL

Garantija

36

Category Code

FNC

Unit Box Height

0.11

Unit Box Length

0.12

Unit Box Width

0.12

Units per Shipping Box

30

Unit Calculated Volume

0.00196 cubm

Unit Calculated Weight

0.545 kg

Summary

Dahua Technology WizSense IPC-HDW2449T-S-IL-0280B. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Turret. Minimum illumination: 0.008 lx, Angle o

Weight & dimensions (Width)

109.9 mm

Weight & dimensions (Depth)

109.9 mm

Weight & dimensions (Height)

100.9 mm

Weight & dimensions (Weight)

370 g

Packaging data (Package weight)

510 g

Performance (Certification)

CE-LVD: EN 62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B

Operational conditions (Operating temperature (T-T))

-40 - 60 C

Operational conditions (Storage temperature (T-T))

-40 - 60 C

System requirements (Mobile operating systems supported)

Android/iOS

Weight & dimensions (Diameter)

109.9 mm

Network (Ethernet LAN)

Yes

Design (Product colour)

White

Power (Power consumption (max))

5.2 W

Ports & interfaces (Ethernet LAN (RJ-45) ports)

1

Operational conditions (Operating relative humidity (H-H))

0 - 95 %

Ports & interfaces (DC-in jack)

Yes

Design (Form factor)

Turret

Camera (Camera shutter speed)

1/3 - 1/100000 s

Storage (Compatible memory cards)

MicroSD (TransFlash)

Storage (Maximum memory card size)

256 GB

Power (Power source type)

DC,PoE

Power (Power consumption)

2.1 mA

Storage (Card reader integrated)

Yes

Performance (Wide Dynamic Range (WDR))

Yes

Audio (Built-in microphone)

Yes

Network (Ethernet interface type)

Fast Ethernet

Design (International Protection (IP) code)

IP67

Design (Mounting type)

Ceiling

Performance (Connectivity technology)

Wired

Performance (Placement supported)

Indoor & outdoor

Performance (Type)

IP security camera

Camera (Lens viewing angle, diagonal)

114

Camera (Lens viewing angle, horizontal)

95

Camera (Lens viewing angle, vertical)

52

Image sensor (Optical sensor size)

1/2.9 "

Lens system (Number of lenses)

1

Night vision (LED type)

IR

Night vision (Night vision)

No

Night vision (Night vision distance)

30 m

Video (Frame rate)

30 fps

Video (Maximum resolution)

2688 x 1520 pixels

Video (Noise reduction)

Yes

Video (Noise reduction technology)

3D noise reduction

Video (Privacy masking)

Yes

Video (Total megapixels)

4 MP

Storage (Built-in HDD)

No

Security (Intelligent Video Surveillance (IVS) system features)

Human detection/Intrusion/Tripwire/Vehicle detection

Power (DC output voltage)

12

Packaging content (Number of cameras)

1

Image sensor (Sensor type)

CMOS

Camera (Minimum illumination)

0.008 lx

Video (Back Light Compensation (BLC))

Yes

Video (Highlight Compensation (HLC))

Yes

Camera (Adjustment shutter speed)

Auto/Manual

Image sensor (Progressive scan)

Yes

Lens system (Maximum aperture number)

1.6

Video (Gain control type)

Auto/Manual

Camera (Camera shutter type)

Electronic

Security (Video motion detection)

Yes

Video (Video compression formats)

H.264/H.264B/H.264H/H.265/M-JPEG

Image sensor (Number of sensors)

1

Camera (Angle of rotation)

360

Camera (Pan range)

0 - 360

Camera (Tilt angle range)

0 - 78

Video (Bit rate control)

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Video (Supported graphics resolutions)

1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2304 x 1296/2520 x 1520/2560 x 1440/640 x 480 (VGA)

Video (Video formats supported)

H.264/H.264+/H.265/H.265+

Video (Video streaming)

Yes

Audio (Signal-to-Noise Ratio (SNR))

56 dB

Network (Streaming method)

Multicast

Network (Supported network protocols)

IPv4 IPv6 HTTP TCP UDP ARP RTP RTSP RTCP RTMP SMTP FTP SFTP DHCP DNS DDNS NTP Multicast ICMP IGMP

Storage (Internal memory)

128 MB

Storage (ROM capacity)

128 MB

Management features (Management software)

DSS DMSS

Management features (Web browser)

Yes

Lens system (Closest focusing distance)

0.9 m

Night vision (Number of illumination LEDs)

2

Network (Number of users)

6 user(s)

Security (Mirror)

Yes

Security (Privacy protection)

Yes

Power (Power consumption (Power over Ethernet (PoE)))

2.5 W

Performance (Dynamic range)

120 dB

Panoramic camera (Number of Privacy masking areas (panoramic camera))

4

Lens system (Detect distance)

63.6 m

Lens system (Detect distance (tele))

85.4 m

Lens system (Detect distance (wide))

63.6 m

Lens system (Identify distance)

6.4 m

Lens system (Identify distance (tele))

8.5 m

Lens system (Identify distance (wide))

6.4 m

Lens system (Normal focusing range)

0.9 - 1.6 m

Lens system (Observe distance)

25.4 m

Lens system (Observe distance (tele))

34.2 m

Lens system (Observe distance (wide))

25.4 m

Lens system (Recognize distance)

12.7 m

Lens system (Recognize distance (tele))

17.1 m

Lens system (Recognize distance (wide))

12.7 m

Video (Bit rate)

H.264: 32 kbps-6144 kbps H.265: 12 kbps-6144 kbps

Video (Supported video modes)

1080p

Audio (Bit rate range)

12 - 6144 Kbit/s

Audio (Voice codecs)

G.711a/G.711Mu/G.726/PCM

Eriviited

ean13

6923172537782

MPN

1441446
