8-kanaline NVR kahe kettapesaga, kahe tuumaga protsessoriga. Integreeritud LAN 10/100, toide DC 12V/5A, energiatarve 20W. Kompaktne must korpus, töötemperatuur –10 °C kuni +55 °C.
Type HDTV/Megapixel/Outdoor|Pixel Resolution 5 Mega Pixel|IR Illumination|Sensor size 1/2.7"|Lens Mount M12|Min. Illumination 0.0003 Lux|Effective pixels 2960 (H) × 1668 (V)|Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s|1xAudio-In|1xAudio-Out|1xRJ45|1xAlarm In|1xAlarm Out|Power options PoE/12V|Power supply requirements Basic: 3.3 W (12 VDC); 4.4 W (PoE) Max. (pulling stream+warning light+speaker+warm light on): 6.8 W (12 VDC); 8.2 W (PoE)|Environment Outdoor|Operating temperature range –40 °C to +60 °C|Colour White|Dimensions 288.4 mm × 94.4 mm × 84.7 mm

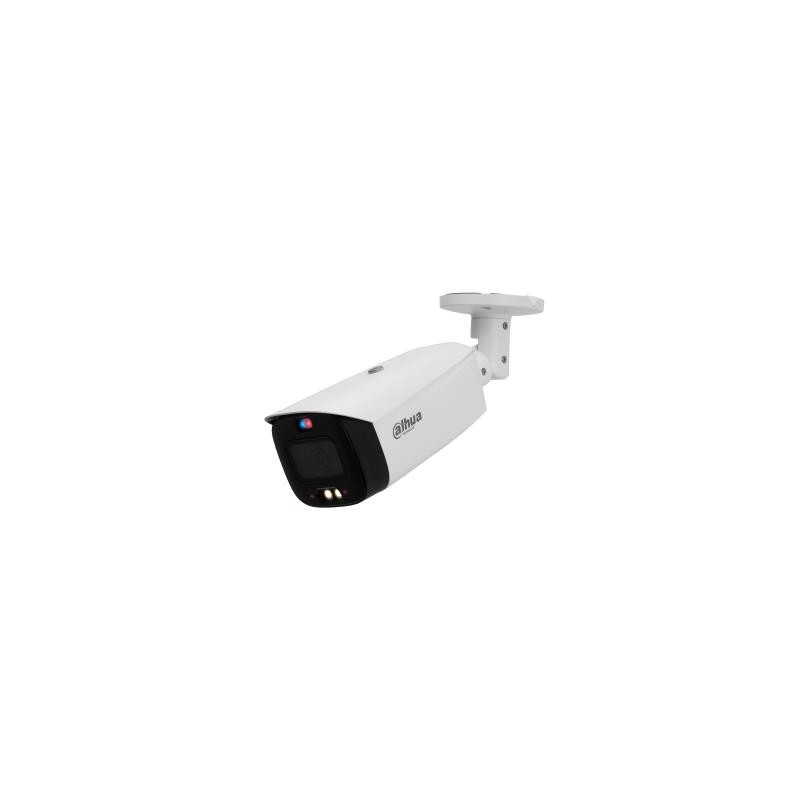

5MP Smart Dual Light Active Deterrence Fixed-focal Bullet WizSense Network Camera
> 5-MP 1/2.7" CMOS image sensor, low luminance, and high definition image.
> Outputs max. 5 MP (2960 × 1668) @20 fps and supports 4MP (2688 × 1520) @25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in warm light and IR LED; the max. IR illumination distance is 30 m and warm light distance is 30 m.
> ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human)
> Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; built-in dual Mic; built-in speaker; support two-way talk.
> 12 VDC/PoE power supply.
> IP67 protection.
> Sound and light alarm (red and blue lights).
> SMD 4.0.
> One-tap arming/disarming through alarm input.
Type Outdoor|Pixel Resolution 4 Mega Pixel|Focal Length 2.8mm|IR Illumination|Sensor size 1/3” Progressive Scan CMOS|Microphone Built-in|Lens Mount M12|1xMicroSD Card Slot|1xRJ45|Supports card capacities up to 256GB|Power options PoE/12V|Power supply requirements 12V DC ± 5%, 5.5mm Coaxial Power Plug; PoE (802.3af/at, class 0)|Environment...
Type Fixed|Pixel Resolution 5 Mega Pixel|IR Illumination|Microphone Built-in|1xRJ45|Power options PoE|Operating temperature range -20 — 40º C|Colour White|Dimensions Ø48 x 107.5 мм
Type Fixed/Fixed Dome/HDTV/Megapixel | Pixel Resolution 4 Mega Pixel | IR Illumination | Sensor size 1/2.4" CMOS | Operating temperature range -20 to 40º C | Colour White | Dimensions Ø63.6 x 68.2 mm
Type HDTV/Megapixel/Outdoor|Pixel Resolution 5 Mega Pixel|IR Illumination|Sensor size 1/2.7"|Lens Mount M12|Min. Illumination 0.0003 Lux|Effective pixels 2960 (H) × 1668 (V)|Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s|1xAudio-In|1xAudio-Out|1xRJ45|1xAlarm In|1xAlarm Out|Power options PoE/12V|Power supply requirements Basic: 3.3 W (12 VDC); 4.4 W (PoE) Max. (pulling stream+warning light+speaker+warm light on): 6.8 W (12 VDC); 8.2 W (PoE)|Environment Outdoor|Operating temperature range –40 °C to +60 °C|Colour White|Dimensions 288.4 mm × 94.4 mm × 84.7 mm
