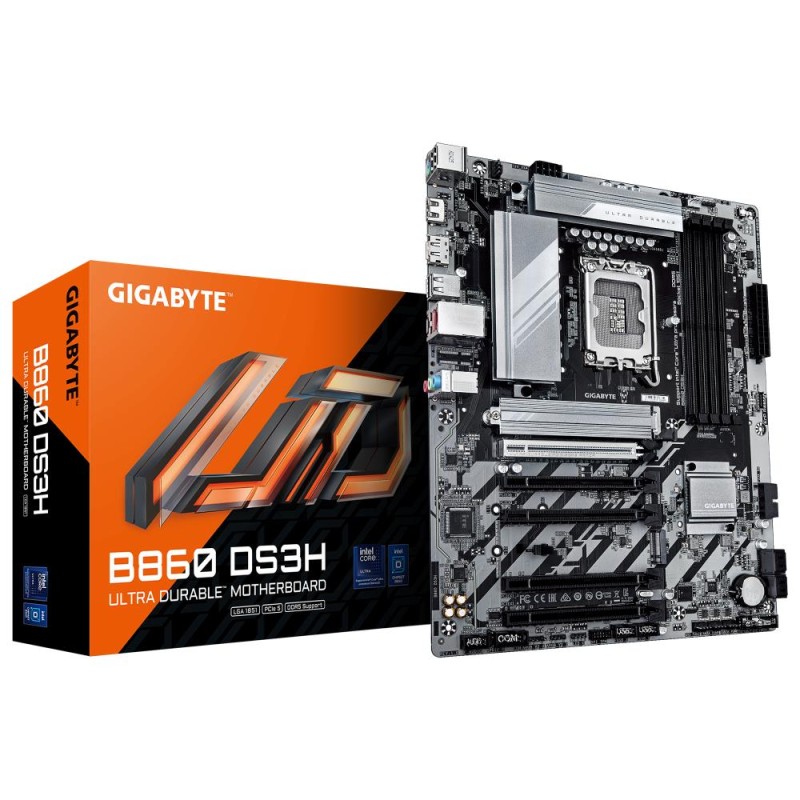

B860 DS3H
- Supports Intel® Core™ Ultra processors (Series 2)
- Hybrid 8+1+2 phases VRM solution
- D5 Bionic Corsa for Infinite Memory Performance
- AI Perfdrive : Provides optimal and customized BIOS preset profile for users
- EZ-Latch : PCIe x16 Slot with Quick Release Design
- Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
- Ultra-Fast Storage : 2*M.2 slots, including 1* PCIe 5.0 x4
- M.2 Thermal Guard : To Ensure M.2 SSD Performance
- Fast Networking : 2.5GbE LAN
- Extended Connectivity : DisplayPort, HDMI
Üldine informatsioon
B860 DS3H
7 Tooted
Lisainfo
- Müüja koduleht
- www.gigabyte.com/Motherboard/B860-DS3H kf
- Vormitegur
- ATX
- Pistikupesa
- LGA1851
- Sisend / väljund pistikud (USB 2.0)
- 4
- Liides (SATA)
- Yes
- Mälu tüüp
- DDR5
- Sageduse kiirus
- 5600/6400/6600/6800/7000/7200/7400/7600/7800/7900/7950/8000/8200/8266/8400/8600/8800/9066 MHz
- Liides (USB 2.0)
- Yes
- Sisend / väljund pistikud (RJ45)
- 1
- Sisend / väljund pistikud (HDMI)
- 1
- Integreeritud LAN
- 2.5 Gigabit
- Kiibistik
- Intel B860 Express
- Integreeritud heli
- Yes
- Mälupesad
- 4
- Sisend / väljund pistikud (PS / 2)
- 1
- RAID
- SATA 0, 1, 5, 10
- TPM
- Header
- Laienduspesad (M.2)
- 2
- Sisend / väljund pistikud (DisplayPort)
- 1
- Sisend / väljund pistikud (heliport)
- 3
- Liides (USB-C)
- Yes
- Garantija
- 36
- Laienduspesad (PCI-Express 4.0 1x)
- 4
- Mudel
- B860 DS3H
- Category Code
- MBI
- Expansion slots (PCI-Express 5.0 16x)
- 1
- Unit Box Height
- 0.27
- Unit Box Length
- 0.34
- Unit Box Width
- 0.08
- Input/Output connectors (USB-C)
- 1
- Units per Shipping Box
- 1
- Unit Calculated Volume
- 0.007344 cubm
- Product Net Weight
- 1 kg
- Unit Calculated Weight
- 1.5 kg
Eriviited
- ean13
- 4719331868178
- MPN
- 1434431
