Kirjeldus

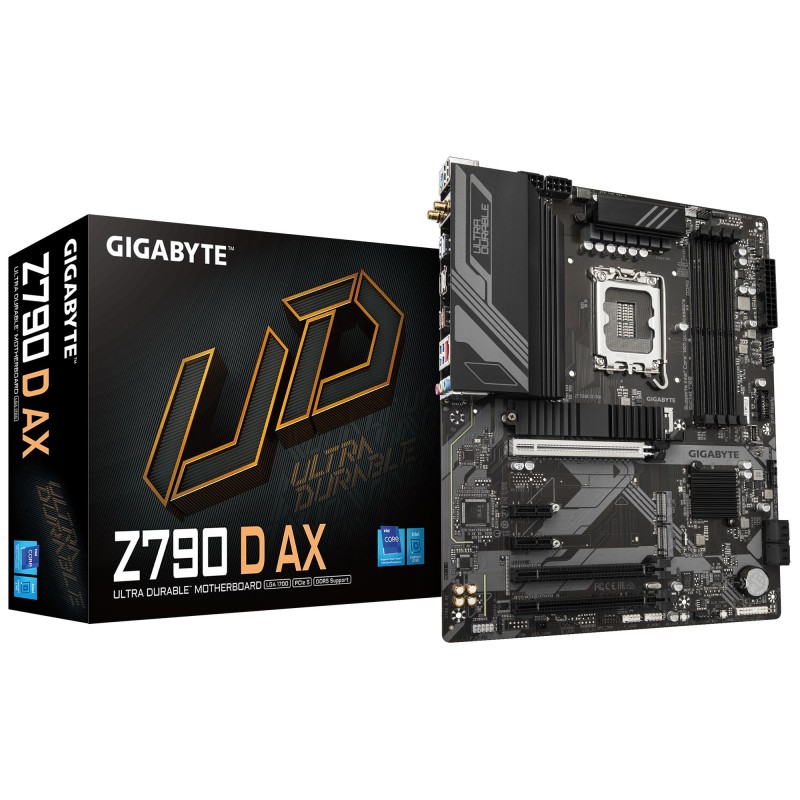

Z790 D AX
- Supports Intel® Core™ 14th/ 13th /12th processors
- Unparalleled Performance：Twin 12*+1+１ Phases Digital VRM Solution
- Dual Channel DDR5：4*DIMMs with XMP 3.0 Memory Module Support
- Next Generation Storage：3*PCIe 4.0 x4 M.2 Connectors
- Advanced Thermal Design & M.2 Thermal Guard: To Ensure VRM Power Stability & M.2 SSD Performance
- EZ-Latch：PCIe 4.0x16 Slot with Quick Release Design
- Fast Networks：2.5GbE LAN & Wi-Fi 6E 802.11ax
- Extended Connectivity：DP, HDMI, Rear USB-C® 10Gb/s
- Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
- Extended Connectivity：DP, HDMI, Rear USB-C® 10Gb/s
- Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
Üldine informatsioon
Z790 D AX 1.1
3 Tooted
Lisainfo
- Müüja koduleht
- www.gigabyte.com/Motherboard/Z790-D-AX-rev-10
- Vormitegur
- ATX
- Pistikupesa
- LGA1700
- Sisend / väljund pistikud (USB 2.0)
- 2
- Mälu tüüp
- DDR5
- Sageduse kiirus
- 4400/4800/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600 MHz
- Liides (USB 2.0)
- Yes
- Sisend / väljund pistikud (RJ45)
- 1
- Sisend / väljund pistikud (HDMI)
- 1
- Integreeritud LAN
- 2.5 Gigabit
- Liides (Bluetooth)
- Yes
- Liides (WiFi)
- Yes
- Kiibistik
- Intel Z790
- Integreeritud video
- Depending on CPU
- Mälupesad
- 4
- Sisend / väljund pistikud (PS / 2)
- 1
- RAID
- SATA 0, 1, 5, 10 NVMe 0, 1, 5, 10
- TPM
- Header
- Laienduspesad (PCI-Express 3.0 16x)
- 1
- Laienduspesad (PCI-Express 3.0 1x)
- 2
- Laienduspesad (M.2)
- 3
- Sisend / väljund pistikud (DisplayPort)
- 1
- Sisend / väljund pistikud (heliport)
- 3
- Liides (USB-C)
- Yes
- Garantija
- 36
- Sisend / väljund pistikud (USB 3.2)
- 5
- Liides (USB 3.2)
- Yes
- Laienduspesad (PCI-Express 4.0 16x)
- 1
- Mudel
- Z790 D AX (rev. 1.0)
- Category Code
- MBI
- Expansion slots (PCI-Express 5.0 16x)
- 1
- Unit Box Height
- 0.08
- Unit Box Length
- 0.33
- Unit Box Width
- 0.27
- Input/Output connectors (USB-C)
- 1
- Units per Shipping Box
- 8
- Unit Calculated Volume
- 0.0099253 cubm
- Product Net Weight
- 1.4 kg
- Unit Calculated Weight
- 1.85625 kg
- CnCode
- 84733020
Eriviited
- ean13
- 4719331860592
- MPN
- 1448135
