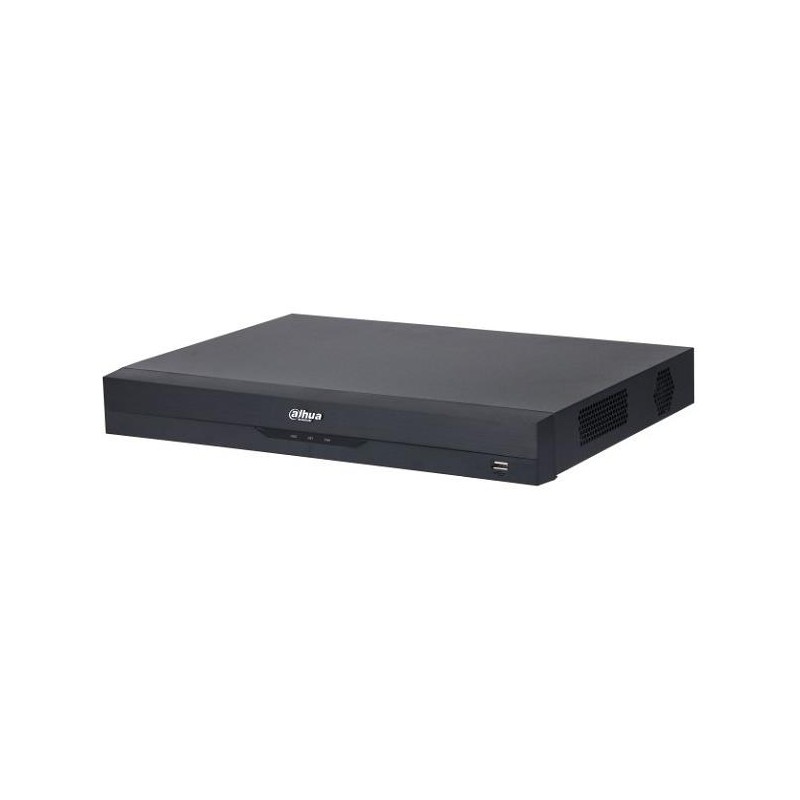

DVR 16CH HDCVI PENTABRID AI/XVR5216AN-I3 DAHUA
  • DVR 16CH HDCVI PENTABRID AI/XVR5216AN-I3 DAHUA

DVR 16CH HDCVI PENTABRID AI/XVR5216AN-I3 DAHUA

DH-XVR5216AN-I3
DAHUA
16 Channel | Camera Compatibility Analog/IP/AHD 5MP/HDCVI 720P/HDCVI 1080P/HDCVI 4MP/HD-TVI/TurboHD 5MP | DC12V, 4A
379,44 €
170,75 € SÄÄST 208,69 €
KM-ga
Tarneaeg 1-5 tööpäeva.
Kogus
Laos
5 Tooted

Kirjeldus

Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on Dahua's advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions.

Dahua Technology, a world-leading video-centric smart IoT solution and service provider, debuted its new XVR series, XVR5000-I3 Series featuring max.full-channel SMD Plus to benefit customers from AI
upgrade (The number of channels differs depending on the model. Please refer to the specifications below for information on the number of channels.). This series has been developed to reduce false-alarm rates and the cost of human surveillance, thus bringing great value to customers in search of products with accurate human/vehicle alarm to raise the security level of various indoor and outdoor facilities.

  • H.265+/H.265 dual-stream video compression
  • Supports Full-channel AI Coding
  • Supports HDCVI/AHD/TVI/CVBS/IP video inputs
  • Max 24 channels IP camera inputs, each channel up to 6MP; Max 128Mbps incoming bandwidth
  • Up to 2 channels video stream (analog channel) Perimeter Protection
  • Up to 16 channels video stream (analog channel) SMD Plus
  • Up to 2 channels video stream (analog channel) human face recognition
  • IoT & POS functionalities
Üldine informatsioon
DAHUA
DH-XVR5216AN-I3
5 Tooted

Lisainfo

Müüja koduleht
https://www.dahuasecurity.com/products/All-Products/HDCVI-Recorders/WizSense-Series/I3-Series/5M-N/1080P-Series/XVR5216AN-I3
Garantija
36
Category Code
STD
Unit Box Height
0.36
Unit Box Length
0.435
Unit Box Width
0.14
Units per Shipping Box
1
Unit Calculated Volume
0.02192 cubm
Unit Calculated Weight
2.9 kg
Summary
Dahua Technology XVR5216AN-I3. Product colour: Black, Maximum video resolution: 1920 x 1080 pixels, Video compression formats: H.264, H.264+, H.265, H.265+. Ethernet interface type: Fast Ethernet, Supported network protocols: HTTP, HTTPS, TCP / IP, IPv4,
Performance (Product colour)
Black
Weight & dimensions (Width)
375 mm
Weight & dimensions (Depth)
289 mm
Weight & dimensions (Height)
53 mm
Weight & dimensions (Weight)
1560 g
Packaging data (Package width)
141 mm
Packaging data (Package depth)
433 mm
Packaging data (Package height)
366 mm
Packaging data (Package weight)
2860 g
Performance (Certification)
CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024 FCC: Part 15 Subpart B
Operational conditions (Operating temperature (T-T))
-10 - 55 C
Ports & interfaces (HDMI ports quantity)
1
Ports & interfaces (USB 2.0 ports quantity)
2
Network (Ethernet LAN)
Yes
Power (Power consumption (typical))
12 W
Power (Power supply type)
DC
Ports & interfaces (Audio input)
1
Performance (Audio formats supported)
G.711 -law/G.711 A-law/PCM
Ports & interfaces (Audio output)
1
Operational conditions (Operating relative humidity (H-H))
10 - 90 %
Performance (Operating system installed)
Embedded LINUX
Performance (Video compression formats)
H.264/H.264+/H.265/H.265+
Network (Ethernet interface type)
Fast Ethernet
Ports & interfaces (RS-485 ports)
1
Network (Supported network protocols)
HTTP, HTTPS, TCP / IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, P2P
Performance (PTZ control)
Yes
Performance (Backup function)
Yes
Performance (Channels quantity)
16 channels
Performance (Maximum video resolution)
1920 x 1080 pixels
Performance (Rack capacity)
1U
Performance (Video capturing speed (NTSC))
30 fps
Performance (Video capturing speed (PAL))
25 fps
Performance (Video loss detection)
Yes
Performance (Video motion detection)
Yes
Ports & interfaces (BNC input ports)
16
Network (Ethernet LAN (RJ-45) ports)
1
Hard drive (HDD interface)
SATA
Hard drive (Maximum HDD capacity)
16000 GB
Hard drive (Number of HDDs supported)
1
Power (DC voltage)
12 V
Performance (Analog signal format system)
NTSC/PAL
Performance (Internal)
No
Performance (Playback resolutions supported)
1920 1080, 1280 1024, 1280 720
Ports & interfaces (VGA (D-Sub) output ports)
1
Optical drive (Optical drive included)
No

Eriviited

ean13
6923172534132
MPN
1365107
