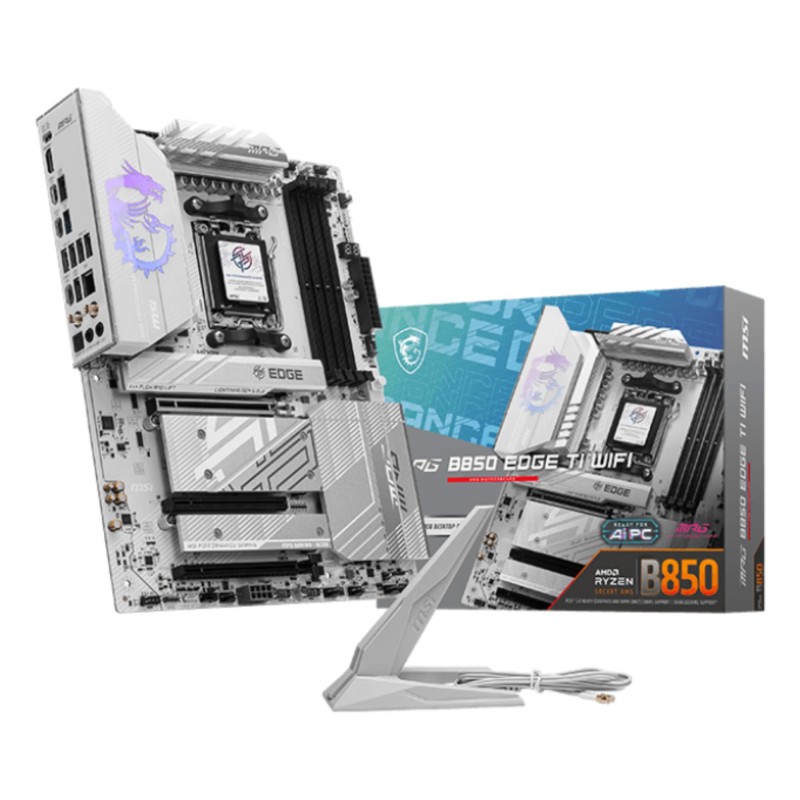

Mainboard|MSI|AMD B850|SAM5|ATX|Memory DDR5|Memory slots 4|3xPCI-Express 16x|4xM.2|1xHDMI|1xAudio-In|1xAudio-Out|4xUSB 2.0|1xUSB

Tootekood MPG B850 EDGE TI WIFI

Kaubamärk MSI

291,13 €

KM-ga

Tarneaeg 1-5 tööpäeva.

Kogus

Laos

Tarneaeg 2-5 tööpäeva. : 30 Tooted

Kirjeldus
Üldine informatsioon

Kirjeldus

MPG B850 EDGE TI WIFI is covered with a silver-white color scheme for white PC build lovers to show off different identity. It is also powerful because of its true Wi-Fi 7 solution, 5G LAN and the latest PCIe 5.0 compatibility, Supplemental PCIe Power, and this is the best white theme B850 ATX motherboard for AMD Ryzen™ 9000 series processors.

MSI's premium MPG series is engineered for gamers who demand strong performance and sleek design. Each product showcases cutting-edge aesthetics and vibrant colors, reflecting MPG's commitment to exceptional design. With optimized configurations, MPG creates a visually striking and powerful gaming experience that leads the trends.

MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.

EZ PCIe Release
An easy-to-access physical button release mechanism that can help remove any PCIe card with a single tap, making it much easier to upgrade to a new GPU or other compatible device, streamlining the entire process and enhancing user experience.

14+2+1 DUET RAIL POWER SYSTEM
Unleash and sustain the maximum performance with a flagship VRM design built with a total of 14+2+1 Duet Rail Power System. Combining dual power connectors and 80A Smart Power Stage, MPG B850 EDGE TI WIFI is ready for the challenge of high-end processors.

Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.

M.2 Shield Frozr
Keeps M.2 SSDs safe while preventing throttling, making them run faster.

M.2 Shield Frozr
Keeps M.2 SSDs safe while preventing throttling, making them run faster.

7W/mK Thermal Pad & Additional Choke Pad
High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are runnging at high speed.

Enlarged Chipset Heatsink
The enlarged heatsink is designed to reduce dust and noise and capable of maintaining high efficiency of heat dissipation.

HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
MSI's premium network solution provides incredible data transfer speed for demanding users.

Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
Supports DDR5 Memory, Dual Channel DDR5 8400+ MT/s (OC)
Ultra Performance: 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper and server-grade level material
Frozr Guard: Enlarged heatsink, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
EZ DIY: EZ PCIe Release, EZ M.2 Shield Frozr II, EZ M.2 Clip II and EZ Antenna
Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 M.2
High-speed Connectivity: 5G LAN with Wi-Fi 7 Solution and USB 20Gbps- The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
Audio Boost 5: Reward your ears with studio grade sound quality for the most immersive gaming experience

Üldine informatsioon

Kaubamärk MSI

Tootekood MPG B850 EDGE TI WIFI

Tarneaeg 2-5 tööpäeva. 30 Tooted

Lisainfo

Müüja koduleht: https://www.msi.com/Motherboard/MPG-B850-EDGE-TI-WIFI/Overview
Garantija: 36
Mudel: MPG B850 EDGE TI WIFI
Category Code: MBA
Unit Box Height: 0.275
Unit Box Length: 0.345
Unit Box Width: 0.075
Units per Shipping Box: 1
Unit Calculated Volume: 0.007116 cubm
Unit Calculated Weight: 2.25 kg
CnCode: 84733020
Summary: MSI MPG B850 EDGE TI WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Me
Weight & dimensions (Width): 304.8 mm
Weight & dimensions (Depth): 243.84 mm
Network (Bluetooth): Yes
Network (Bluetooth version): 5.4
Network (Ethernet LAN): Yes
Network (Wi-Fi): Yes
Network (Wi-Fi standards): 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)/Wi-Fi 7 (802.11be)
Features (Product colour): White
Processor (Processor manufacturer): AMD
Network (Top Wi-Fi standard): Wi-Fi 7 (802.11be)
Features (Component for): PC
Memory (Maximum internal memory): 256 GB
Memory (Memory channels): Dual-channel
Graphics (On-board graphics card): No
Expansion slots (PCI Express x16 (Gen 5.x) slots): 1
Processor (Compatible processor series): AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
Processor (Processor socket): Socket AM5
Processor (Supported processor sockets): Socket AM5
Memory (Memory slots type): DIMM
Memory (Number of memory slots): 4
Memory (Supported memory clock speed (max)): 8400 MHz
Memory (Supported memory clock speeds): 4800/5600/8400 MHz
Memory (Supported memory types): DDR5-SDRAM
Storage controllers (Number of HDDs supported): 4
Storage controllers (Number of storage drives supported): 8
Storage controllers (Supported storage drive interfaces): M.2,Micro SATA III
Storage controllers (Supported storage drive types): HDD & SSD
Internal I/O (CPU fan connector): Yes
Internal I/O (Number of SATA III connectors): 4
Internal I/O (RGB LED pin header): Yes
Internal I/O (USB 2.0 connectors): 4
Internal I/O (USB 3.2 Gen 1 (3.1 Gen 1) connectors): 4
Rear panel I/O ports (Ethernet LAN (RJ-45) ports): 1
Rear panel I/O ports (HDMI ports quantity): 1
Rear panel I/O ports (USB 2.0 ports quantity): 4
Rear panel I/O ports (USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity): 2
Network (Ethernet interface type): 2.5 Gigabit Ethernet
Features (Audio output channels): 7.1 channels
Features (Motherboard chipset): AMD B850
Features (Motherboard chipset family): AMD
Features (Motherboard form factor): ATX
Features (Windows operating systems supported): Windows 11 x64
Expansion slots (Number of M.2 (M) slots): 4
Expansion slots (PCI Express x16 (Gen 4.x) slots): 1
Storage controllers (RAID levels): 0/1/10
Storage controllers (RAID support): Yes
Internal I/O (USB 3.2 Gen 2 (3.1 Gen 2) connectors): 1
Rear panel I/O ports (HDMI version): 2.1
Rear panel I/O ports (USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity): 1
Rear panel I/O ports (USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity): 3
Features (Audio chip): Realtek ALC4080
Processor (Maximum internal memory supported by processor): 256 GB
Internal I/O (Total number of SATA connectors): 4
Memory (ECC сompatibility): Non-ECC
Internal I/O (Number of CPU fan connectors): 6
Internal I/O (Number of RGB LED pin headers): 3
Internal I/O (Number of water pump connectors): 1
Expansion slots (1st M.2 highest PCI Express generation): 5.0
Expansion slots (1st M.2 largest key size): 22110
Expansion slots (2nd M.2 highest PCI Express generation): 5.0
Expansion slots (2nd M.2 largest key size): 2280
Expansion slots (3rd M.2 highest PCI Express generation): 4.0
Expansion slots (3rd M.2 largest key size): 2280
Expansion slots (PCI Express x16 (Gen 3.x) slots): 1
Expansion slots (4th M.2 highest PCI Express generation): 4.0
Expansion slots (4th M.2 largest key size): 2280
