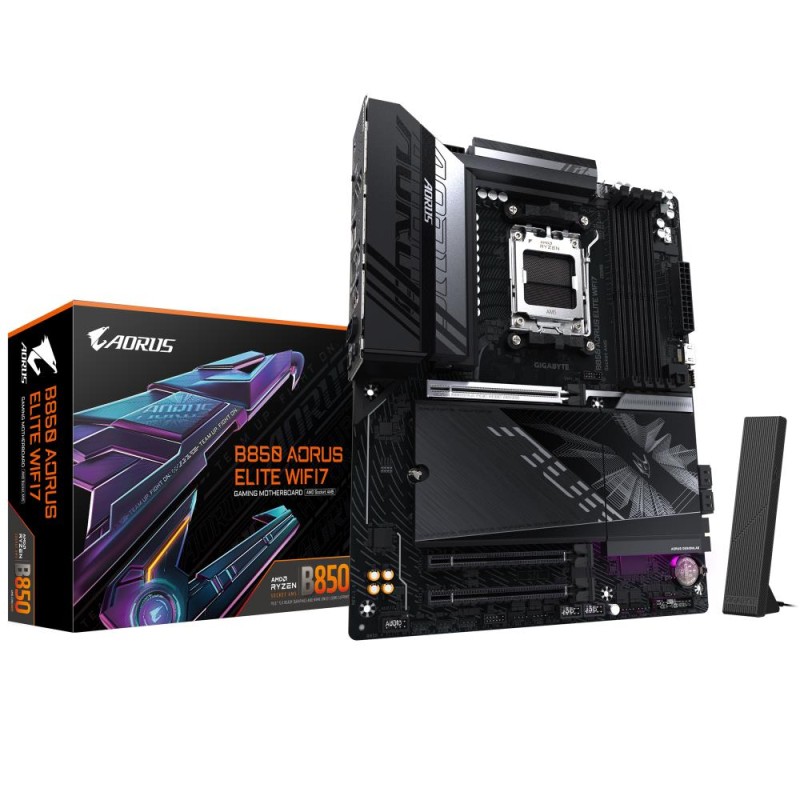

B850 AORUS ELITE WIFI7
X3D Turbo Mode : Unleash new era gaming performance
DDR5 OC up to 8200MT/s
AMD Socket AM5 : Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
Digital twin 14+2+2 phases VRM solution
Dual Channel DDR5 : 4*DIMMs with AMD EXPO™Memory Module Support
WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design
EZ-Latch Click : M.2 heatsinks with screwless design
Sensor Panel Link : Onboard video port for hassle-free in-chassis panel setup
Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
Ultra-Fast Storage : 3*M.2 slots, including PCIe 5.0 x4
Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard Ext.
Fast Networking : 2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
Extended Connectivity : HDMI,Displayport
PCIe UD Slot : PCIe 5.0 x16 slots with 10X strength for graphics card & Better Heat dissipation effect
Üldine informatsioon
Tootekood
1439480
Tarneaeg 2-5 tööpäeva.
6 Tooted
Lisainfo
Müüja koduleht
www.gigabyte.com/Motherboard/B850-AORUS-ELITE-WIFI7-rev-1x kf
Vormitegur
ATX
Pistikupesa
SAM5
Sisend / väljund pistikud (USB 2.0)
4
Mälu tüüp
DDR5
Sageduse kiirus
4400/4800/5200/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600/7800/7900/7950/8000/8200 MHz
Liides (USB 2.0)
Yes
Sisend / väljund pistikud (RJ45)
1
Integreeritud LAN
2.5 Gigabit
Sisend / väljund pistikud (optiline S / PDIF)
1
Liides (Bluetooth)
Yes
Liides (WiFi)
Yes
Kiibistik
AMD B850
Integreeritud heli
Realtek ALC1220
Integreeritud video
Depending on CPU
Mälupesad
4
RAID
SATA 0, 1, 10 NVMe 0, 1, 5, 10
TPM
Header
Laienduspesad (PCI-Express 3.0 16x)
2
Laienduspesad (M.2)
3
Sisend / väljund pistikud (DisplayPort)
1
Sisend / väljund pistikud (heliport)
2
Liides (USB-C)
Yes
Garantija
36
Sisend / väljund pistikud (USB 3.2)
7
Liides (USB 3.2)
Yes
Mudel
B850 A ELITE WF7
Category Code
MBA
Expansion slots (PCI-Express 5.0 16x)
1
Unit Box Height
0.084
Unit Box Length
0.338
Unit Box Width
0.272
Input/Output connectors (USB-C)
1
Units per Shipping Box
6
Unit Calculated Volume
0 cubm
Product Net Weight
2 kg
Unit Calculated Weight
3 kg
Eriviited
ean13
4719331866105
MPN
B850 A ELITE WF7 1.1
