UPS topology Line-Interactive | Output power capacity 1.6 kVA | Output power 1120 W | Waveform Sine | Input operation voltage (min) 172.5 V | Input operation voltage (max) 276 V | Input frequency 50/60 Hz | Output frequency 50/60 Hz | Response time 2 ms | Number of input phases 1 | Number of output phases 1 | AC outlet types Type F | USB port Yes | Battery technology Sealed Lead Acid (VRLA) | Form factor Compact | Colour Black | LED indicators Yes | International Protection (IP) code IP20 | Operating temperature (T-T) 0 - 55 °C | Operating altitude 0 - 300 m | Weight 5 kg

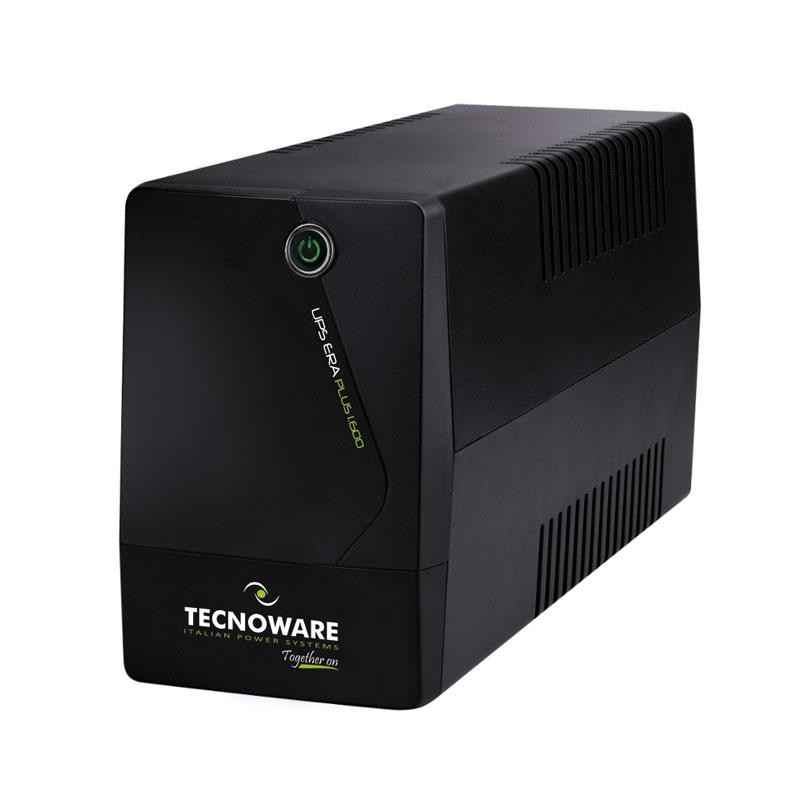

UPS ERA PLUS 1600VA, 12V 11Ah battery, It has 1 fixed SCHUKO input cable and 2 SCHUKO outputs protected against blackout, overvoltages and undervoltages. Line Interactive Plus technology. Dimensions 10x14x28 cm, weight 5.5 kg. Equipped with On-Off button with integrated multifunction LED with audible alarm for signaling the operating status and USB interface for controlling UPS continuity and programming on / off via the free tecnomanager win / mac software. Designed to protect PC Office, DVR for video surveillance, ADSL-Fiber Modem / router, Cash Register. Totally silent.
Complete protection against blackout and power surges (overvoltages and undervoltages)
Recommended for Personal Computers, DVR / NVR and video surveillance systems, ADSL / fiber modem, switch / router, cash registers
Not suitable with power supplies with Active PFC circuit (Server, PC game, video game console, workstation, Mac computer), lamps and electric motors
AVR Automatic Voltage Regulator electronic circuit
n 2 Italy / Schuko output sockets and n 1 schuko input cable
outputs socket protected against blackout
outputs socket protected against overvoltages
multifunction LED and on-off button
USB port for UPS control / monitoring and ignition programming / shutdown via Tecnomanager software
UPS management software TecnoManager compatible with Windows, Mac OS X, Linux etc
Tecnoware Era Plus 1600. UPS topology: Line-Interactive, Output power capacity: 1.6 kVA, Output power: 1120 W. AC outlet types: Type F, AC outlets quantity: 2 AC outlet(s), USB port type: USB Type-B. Battery technology: Sealed Lead Acid (VRLA), Typical ba
Battery (Battery technology)
Sealed Lead Acid (VRLA)
Weight & dimensions (Width)
101 mm
Weight & dimensions (Depth)
279 mm
Weight & dimensions (Height)
142 mm
Weight & dimensions (Weight)
5000 g
Packaging data (Package width)
180 mm
Packaging data (Package depth)
340 mm
Packaging data (Package height)
220 mm
Operational conditions (Operating temperature (T-T))
