UPS topology Line-Interactive | Output power capacity 1.5 kVA | Output power 1500 W | Waveform Pure sine | Input operation voltage (min) 160 V | Input operation voltage (max) 294 V | Input frequency 47/70 Hz | AC outlet types C13 coupler | Power plug C14 coupler | USB port Yes | Serial interface Yes | Form factor Rackmount/Tower | Colour Black | Display type LCD | LED indicators Yes | Operating temperature (T-T) 0 - 40 °C | Weight 22.4 kg
Exceptional efficiency, manageability and energy metering capabilities for IT managers
Performance and efficiency
- Eaton 5PX Gen 2 provides Unity power factor (W=VA) capability. With 11% more power than other UPS it can protect more servers. - Energy Star 2.0 certified, 5PX Gen2 offers best-in-class efficiency performance to reduceenergy consumption and cooling costs. - When operating in battery mode the 5PX provides a high-quality output signal for any sensitive equipment connected, such as active PFC (power factor corrected) servers. - Each 5PX Gen2 battery configuration provides the best size /runtime ratio.
Management and Cybersecurity
- Innovative graphical LCD display brings all operating information at first sight. It also enhances commissioning and configuration capabilities. - 5PX Gen2 Netpack models are delivered with Eaton Gigabit network management card, which provides Dual cybersecurity certifications (UL 2900-1 & IEC 62443-4-2) and enables connection to Eaton Cyber Secured Monitoring solutions. - Together with 5PX Gen2, Eaton Gigabit network management card allows both remote UPS settings and remote firmware upgrade to ensure easy deployment (fleet management) and reduced maintenance cost. - 5PX Gen2 meters energy consumption right down to the managed outlet groups. kWh values can be monitored using the LCD or Eaton’s Intelligent Power Software. - Eaton’s Intelligent Power Software seamlessly integrates with leading virtualization environments and cloud orchestration tools.
Availability and flexibility

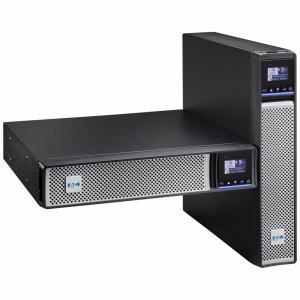

- 5PX Gen2 2200VA & 3000VA are available in RT2U format (optimized for rack mounting) or RT3U (for tower installation or short-depth racks). Pedestals and rail kits are included with all models. - 5PX Gen2 load segment control enables prioritized shutdowns of non-essential equipment to maximize battery runtime for critical devices (2 groups). - Eaton ABM® battery management technology uses a three stage charging technique that optimizes battery health and extends lifetime by up to 50%. - Up to 4 external hot-swappable battery modules can be added for longer power availability.
Eaton 5PX Gen2. UPS topology: Line-Interactive, Output power capacity: 1.5 kVA, Output power: 1500 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 8 AC outlet(s). Form factor: Rackmount/Tower, Product colour: Black, Rack cap
Weight & dimensions (Width)
438 mm
Weight & dimensions (Depth)
448 mm
Weight & dimensions (Height)
85.5 mm
Weight & dimensions (Weight)
22400 g
Logistics data (Harmonized System (HS) code)
85078000
Certificates (Compliance certificates)
CE
Sustainability (Sustainability certificates)
ENERGY STAR
Operational conditions (Operating temperature (T-T))
0 - 40 C
Sustainability (Sustainability compliance)
Yes
Ports & interfaces (USB port)
Yes
Design (Product colour)
Black
Certificates (Certification)
IEC/EN 62040-2, FCC B, CISPR22 B CB (TUV) / cTUVus / EAC / UKCA / Ukr / Cm
