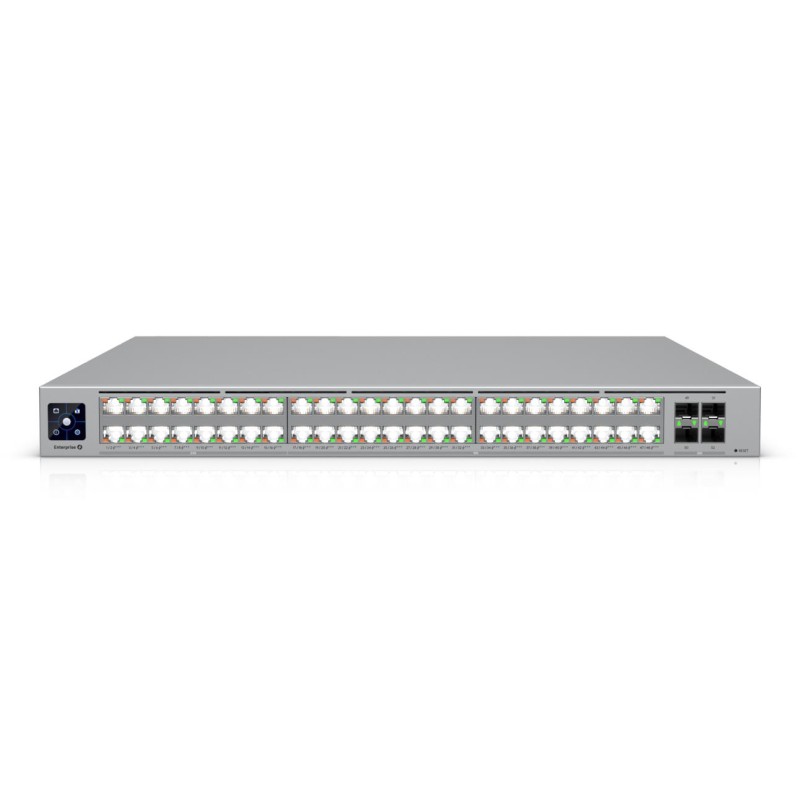

Switch|UBIQUITI|Enterprise Campus 48 PoE|16x2.5GbE|32x10GbE|4xSFP28|PoE+ ports 16|2150 Watts|ECS-48-POE

Дополнительная информация

Сайт продавца

https://eu.store.ui.com/eu/en/category/switching-enterprise/collections/enterprise-campus-48/products/ecs-48-poe

Название модели

Enterprise Campus 48 PoE

Гарантия

12

Модель

ECS-48-POE

Код категории

SWI

Units per Shipping Box

1

Unit Calculated Volume

0.03005 cubm

Unit Calculated Weight

10 kg

Summary

Ubiquiti UniFi ECS-48-PoE. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 48. MAC address table: 128000 entries, Switching capacity: 920 G

Weight & dimensions (Width)

442 mm

Weight & dimensions (Depth)

496 mm

Weight & dimensions (Height)

43.7 mm

Weight & dimensions (Weight)

9460 g

Packaging content (Cables included)

Power

Power (Power source)

AC

Certificates (Compliance certificates)

CE/Federal Communications Commission (FCC)/Industry Canada (IC)

Operational conditions (Operating temperature (T-T))

-5 - 40 C

Design (Product colour)

Grey

Power (AC input frequency)

50/60 Hz

Power (AC input voltage)

100 - 240 V

Power (Power consumption (max))

2400 W

Design (Housing material)

SGCC

Design (Number of fans)

4 fan(s)

Operational conditions (Operating relative humidity (H-H))

10 - 90 %

Design (Form factor)

1U

Design (LED indicators)

Activity/Link/Status

Design (Reset button)

Yes

Network (Ethernet LAN data rates)

10,100,1000,2500,5000,10000 Mbit/s

Packaging data (Mounting brackets included)

Yes

Network (Networking standards)

IEEE 802.1x/IEEE 802.3bt

Power (Number of power supply units)

2

Design (Display type)

LCM

Packaging content (Rack mount kit)

Yes

Management features (Switch layer)

L2/L3

Management features (Switch type)

Managed

Ports & interfaces (Basic switching RJ-45 Ethernet ports quantity)

48

Ports & interfaces (Basic switching RJ-45 Ethernet ports type)

10G Ethernet (100/1000/10000)

Network (10G support)

Yes

Data transmission (Forwarding rate)

684 Mpps

Data transmission (Switching capacity)

920 Gbit/s

Data transmission (Throughput)

460 Gbit/s

Design (Rack mounting)

Yes

Power (Power supply included)

Yes

Power over Ethernet (PoE) (Power over Ethernet (PoE))

Yes

Network (Broadcast storm control)

Yes

Network (Flow control support)

Yes

Network (Link aggregation)

Yes

Network (Port mirroring)

Yes

Network (VLAN support)

Yes

Ports & interfaces (Power connector)

AC-in jack

Ports & interfaces (SFP28 ports quantity)

4

Data transmission (Static route)

Yes

Security (DHCP features)

DHCP guarding/DHCP relay/DHCP snooping

Data transmission (MAC address table)

128000 entries

Data transmission (Packet buffer memory)

8 MB

Data transmission (Jumbo frames support)

Yes

Management features (Quality of Service (QoS) support)

Yes

Network (Number of VLANs)

1000

Network (Virtual LAN features)

Voice VLAN

Power (Redundant power supply (RPS) support)

Yes

Power over Ethernet (PoE) (Total Power over Ethernet (PoE) budget)

2150 W

Ports & interfaces (SFP module slots quantity)

4

Security (Loop protection)

Yes

Power over Ethernet (PoE) (Power over Ethernet (PoE) power per port)

90 W

Ports & interfaces (2.5G Ethernet (copper) ports quantity)

16

Network (Rate limiting)

Yes

Security (IGMP snooping)

Yes

Multicast features (Multicast support)

Yes

Network (IPv4 routes)

256000

Ports & interfaces (10G Ethernet (copper) ports quantity)

32

Power over Ethernet (PoE) (Power over Ethernet (PoE) type supported)

PoE+/PoE++ (4PPoE)

Design (Redundant fans support)

Yes

Packaging data (Rack rails)

Yes

Специальные референции

MPN

1436395
