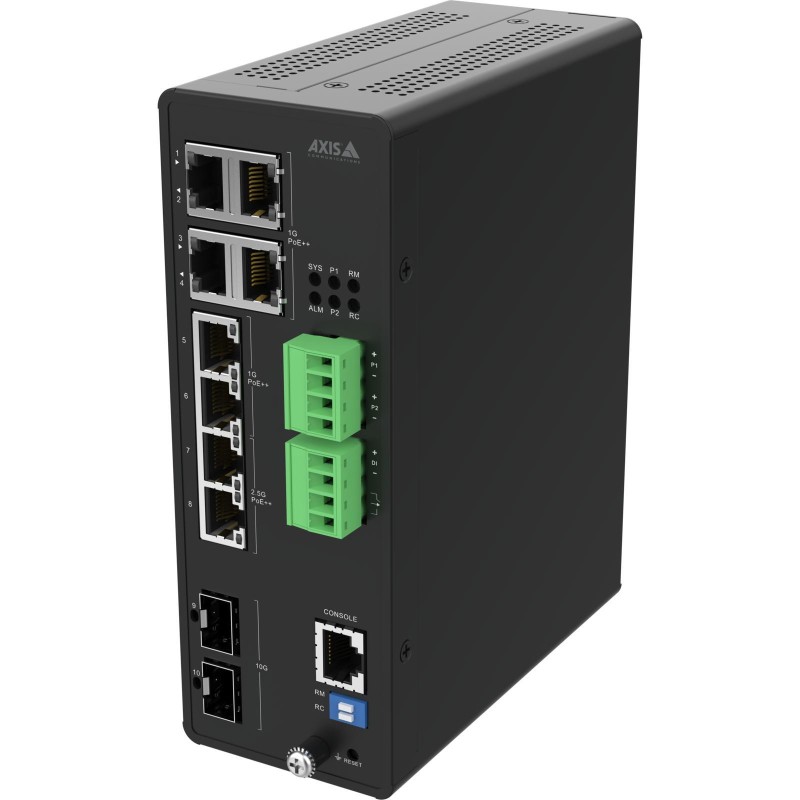

Switch|AXIS|2x10GbE|6x1GbE|480 Watts|02621-001

Дополнительная информация

Сайт продавца

https://www.axis.com/products/axis-d8208-r-industrial-poe-switch

Гарантия

60

Модель

D8208-R

Код категории

SWI

Высота блока

0.085

Длина блока

0.27

Ширина блока

0.175

Units per Shipping Box

1

Unit Calculated Volume

0.004016 cubm

Unit Calculated Weight

1.53 kg

Summary

Axis 02621-001. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 8, Installed SFP+ modules quantity: 2, Console port: RJ-45. MAC address table: 16000 entries, Sw

Weight & dimensions (Width)

62 mm

Weight & dimensions (Depth)

130 mm

Weight & dimensions (Height)

168 mm

Weight & dimensions (Weight)

892 g

Power (Power source)

DC/PoE

Operational conditions (Operating temperature (T-T))

-40 - 60 C

Operational conditions (Storage relative humidity (H-H))

5 - 95 %

Operational conditions (Storage temperature (T-T))

-40 - 85 C

Design (Product colour)

Black

Design (Housing material)

Aluminium

Certificates (Certification)

EMC EN 55035, EN 55032 Class A, EN 50121-4, EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, IEC 62236-4, FCC part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), IEC 62236-4, VCCI Class A, RCM AS/NZS CISPR 32 Class A Safety IEC/EN/UL 62368-1 ed. 3 Environment IEC 600

Operational conditions (Operating relative humidity (H-H))

5 - 95 %

Security (Password protection)

Yes

Security (Security algorithms)

HTTPS

Network (Networking standards)

IEEE 802.1Q/IEEE 802.1x/IEEE 802.3af/IEEE 802.3at/IEEE 802.3bt

Management features (Switch type)

Managed

Ports & interfaces (Basic switching RJ-45 Ethernet ports quantity)

8

Ports & interfaces (Basic switching RJ-45 Ethernet ports type)

10G Ethernet (100/1000/10000)

Network (10G support)

Yes

Data transmission (Switching capacity)

62 Gbit/s

Data transmission (Throughput)

46.12 Mpps

Power over Ethernet (PoE) (Power over Ethernet (PoE))

Yes

Network (VLAN support)

Yes

Security (DHCP features)

DHCP snooping

Data transmission (MAC address table)

16000 entries

Ports & interfaces (Console port)

RJ-45

Power over Ethernet (PoE) (Power over Ethernet (PoE) ports quantity)

8

Data transmission (Jumbo frames)

10240

Data transmission (Jumbo frames support)

Yes

Protocols (Supported network protocols)

IPv4, IPv6, HTTP, HTTPS, SMTP, Bonjour, UPnP , SNMP v1/v2c/v3, DNS, NTP, RTSP, TCP, UDP, IGMP, ICMP, DHCP, ARP, SSH, RADIUS, TACACS+, Syslog, IEEE 802.1X, 802.1Q (VLAN), LLDP, LLDP-Med, STP, MSTP, RSTP, LACP, RRPP

Ports & interfaces (Gigabit Ethernet (copper) ports quantity)

6

Network (Virtual LAN features)

Private VLAN

Power over Ethernet (PoE) (Total Power over Ethernet (PoE) budget)

480 W

Power over Ethernet (PoE) (Power over Ethernet (PoE) power per port)

90 W

Ports & interfaces (2.5G Ethernet (copper) ports quantity)

2

Management features (ARP inspection)

Yes

Security (Access Control List (ACL))

Yes

Ports & interfaces (Installed SFP+ modules quantity)

2

Специальные референции

ean13

7331021080225

MPN

1395299
