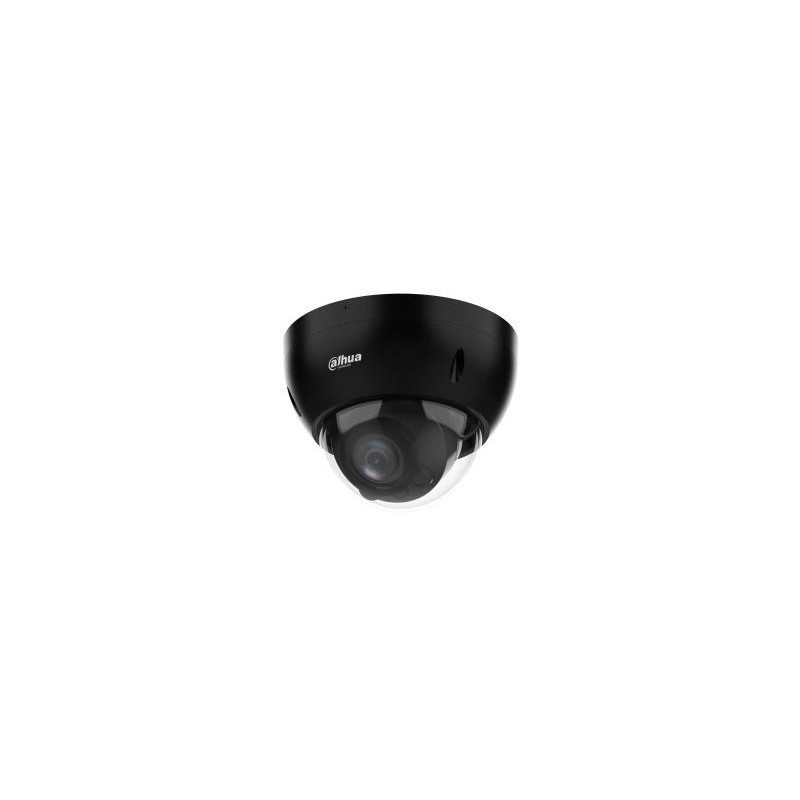

NET CAMERA 8MP IR DOME/HDBW2841R-ZAS-27135-B DAHUA

Дополнительная информация

Сайт продавца

https://www.dahuasecurity.com/products/All-Products/Network-Cameras/WizSense-Series/2-Series/IR/IPC-HDBW2841R-ZAS

Гарантия

36

Модель

IPC-HDBW2841R-ZAS-27135-B

Код категории

FNC

Высота блока

0.135

Длина блока

0.158

Ширина блока

0.156

Units per Shipping Box

1

Unit Calculated Volume

0.003327 cubm

Unit Calculated Weight

0.7 kg

Summary

Dahua Technology WizSense IPC-HDBW2841R-ZAS-27135-B. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, Form factor: Dome. Angle of rotation: 355 , Lens view

Weight & dimensions (Height)

93.4 mm

Weight & dimensions (Weight)

510 g

Packaging data (Package weight)

670 g

Performance (Certification)

CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14

Operational conditions (Operating temperature (T-T))

-30 - 60 C

Operational conditions (Storage relative humidity (H-H))

0 - 95 %

Operational conditions (Storage temperature (T-T))

-40 - 60 C

System requirements (Mobile operating systems supported)

Android/iOS

Weight & dimensions (Diameter)

122 mm

Audio (Audio output channels)

1.0 channels

Network (Bluetooth)

No

Network (Ethernet LAN)

Yes

Network (Wi-Fi)

No

Design (Product colour)

Black

Power (Power consumption (max))

6.4 W

Power (Power consumption (typical))

2.7 W

Ports & interfaces (Ethernet LAN (RJ-45) ports)

1

Design (Housing material)

Metal

Operational conditions (Operating relative humidity (H-H))

0 - 95 %

Design (Form factor)

Dome

Camera (Camera shutter speed)

1/3 - 1/100000 s

Storage (Compatible memory cards)

MicroSD (TransFlash)

Storage (Maximum memory card size)

256 GB

Power (Power source type)

DC,PoE

Storage (Card reader integrated)

Yes

Performance (Wide Dynamic Range (WDR))

Yes

Audio (Built-in microphone)

Yes

Design (Protection features)

Waterproof

Storage (RAM capacity)

256 MB

Network (Ethernet interface type)

Fast Ethernet

Design (IK code)

IK10

Design (International Protection (IP) code)

IP67

Design (Mounting type)

Ceiling/wall

Performance (Connectivity technology)

Wired

Performance (Day/night mode)

Yes

Performance (Placement supported)

Indoor & outdoor

Performance (Type)

IP security camera

Camera (Lens viewing angle, diagonal)

138 - 36

Camera (Lens viewing angle, horizontal)

113 - 31

Camera (Lens viewing angle, vertical)

58 - 18

Image sensor (Optical sensor size)

1/2.7 "

Lens system (Number of lenses)

1

Night vision (LED type)

IR

Night vision (Night vision)

Yes

Night vision (Night vision distance)

40 m

Video (Maximum resolution)

3840 x 2160 pixels

Video (Noise reduction)

Yes

Video (Noise reduction technology)

3D noise reduction

Video (Privacy masking)

Yes

Video (Total megapixels)

8 MP

Storage (Built-in HDD)

No

Security (Intelligent Video Surveillance (IVS) system features)

Intrusion/Tripwire

Power (DC output voltage)

12

Packaging content (Number of cameras)

1

Image sensor (Sensor type)

CMOS

Lens system (Focal length range)

2.7 - 13.5 mm

Security (Alarm input channels)

1

Security (Alarm output channels)

1

Audio (Audio input channels)

1.0 channels

Performance (Alarm input/output)

Yes

Camera (Minimum illumination)

0 lx

Video (Back Light Compensation (BLC))

Yes

Video (Highlight Compensation (HLC))

Yes

Camera (Adjustment shutter speed)

Auto/Manual

Image sensor (Progressive scan)

Yes

Lens system (Maximum aperture number)

1.5

Video (Gain control type)

Auto/Manual

Camera (Camera shutter type)

Electronic

Video (Region of Interest (ROI) encoding)

Yes

Security (Video motion detection)

Yes

Video (Video compression formats)

H.264/H.264+/H.264B/H.265/H.265+

Image sensor (Number of sensors)

1

Camera (Angle of rotation)

355

Camera (Pan range)

0 - 355

Camera (Tilt angle range)

0 - 75

Camera (White balance)

Auto/Manual/Natural/Outdoor/Street lamp

Video (Bit rate control)

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Video (Supported graphics resolutions)

1280 x 720 (HD 720)/1920 x 1080 (HD 1080)/2048 x 1536 (QXGA)/2304 x 1296/2688 x 1512/2880 x 1620/3072 x 1728/3072 x 2048/352 x 240/352 x 288/3840 x 2160/640 x 480 (VGA)/704 x 480/704 x 576

Video (Video streaming)

Yes

Audio (Signal-to-Noise Ratio (SNR))

56 dB

Network (Supported network protocols)

IPv4 IPv6 HTTP TCP UDP ARP RTP RTSP RTCP RTMP SMTP FTP SFTP DHCP DNS DDNS QoS UPnP NTP Multicast ICMP IGMP NFS PPPoE Boujour

Storage (ROM capacity)

128 MB

Management features (Management software)

Smart PSS, DSS, DMSS

Management features (Web browser)

Yes

Video (Smart IR)

Yes

Lens system (Closest focusing distance)

0.8 m

Night vision (Number of illumination LEDs)

2

Network (Number of users)

20 user(s)

Security (Mirror)

Yes

Security (Privacy protection)

Yes

Power (Power consumption (Power over Ethernet (PoE)))

7.3 W

Performance (Dynamic range)

120 dB

Lens system (Detect distance (tele))

280 m

Lens system (Detect distance (wide))

85.3 m

Lens system (Identify distance (tele))

28 m

Lens system (Identify distance (wide))

8.5 m

Lens system (Observe distance (tele))

112 m

Lens system (Observe distance (wide))

34.1 m

Lens system (Recognize distance (tele))

56 m

Lens system (Recognize distance (wide))

17.1 m

Video (Bit rate)

12 Kbps - 8192 Kbps

Audio (Voice codecs)

G.711a/G.711Mu/G.726/PCM

Network (Networking standards)

IEEE 802.3af

Camera (Number of Privacy masking areas)

4

Security (Network access storage (NAS))

Yes

Network (Client interoperability)

ONVIF (Profile S/Profile G/Profile T) CGI P2P Milestone

Other features (Browser supported)

IE: IE8, IE9, IE11 Chrome Firefox, Safari

Technical details (Number of video streams)

2

Специальные референции

ean13

6923172578631

MPN

1407421
